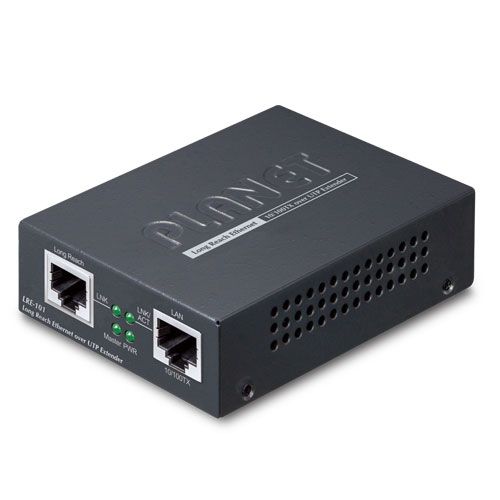

PLANET 1-Port 10/100TX over UTP Long Reach Ethernet Extender
|
113,49 EUR |
|
|
( 135,05 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1707340 |
|---|---|
| Mfg Part No: | LRE-101 |
| UPC/EAN: | 4711605286749 |
| Weight: | 0.44 kg |
Product information for Planet LRE-101:
Configurable via a DIP switch for Master/Slave mode, the device is perfect for point-to-point applications such as IP surveillance, digital signage, education, or any scenario requiring long-distance Ethernet connectivity. It supports plug-and-play setup, secure transmission with AES encryption, and integration into PLANET media converter chassis (MC-700/MC-1500 series). Mounting is possible on a DIN rail or wall.
With Wavelet-OFDM modulation, VLAN transparency, and robust metal housing, the LRE-101 ensures stable, secure, and cost-effective Ethernet extension.
Technical Specifications (English):
Interfaces:
- LAN Port: 1 x 10/100BASE-TX RJ45, auto-negotiation, auto-MDI/MDI-X
- Cabling: Cat5e or higher, up to 100 m
- Max Frame Size: 1522 bytes
- Long Reach Port: 1 x RJ45 for Ethernet over UTP or phone wire
- Cabling: Cat5e UTP or RJ11
- Distance: up to 800 m (RJ45), up to 1200 m (RJ11)
Transmission & Performance:
- Modulation: Wavelet-OFDM
- Frequency Band: 2–28 MHz
- Security: 128-bit AES encryption
- Standard: IEEE 1901 Long Reach Ethernet
- Sample Data Rates:
- RJ45 @ 200 m: 89/88 Mbps
- RJ11 @ 800 m: 28/22 Mbps
- RJ11 @ 1200 m: 11/6 Mbps
Features:

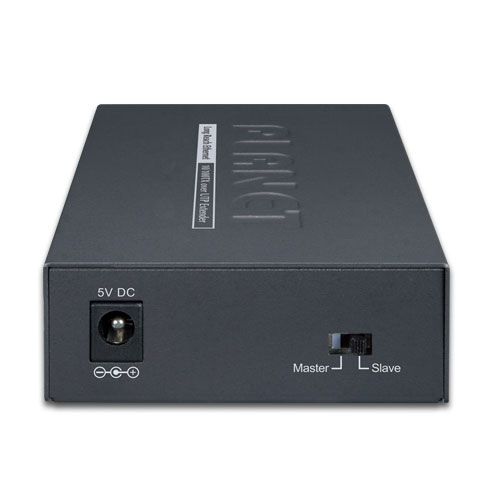

- DIP Switch: Select Master or Slave mode
- VLAN Support: IEEE 802.1Q VLAN tag transparent
- Multicast Pass-Through
Housing & Dimensions:
- Material: Metal
- Size: 94 x 70.3 x 26.2 mm
- Weight: 189 g

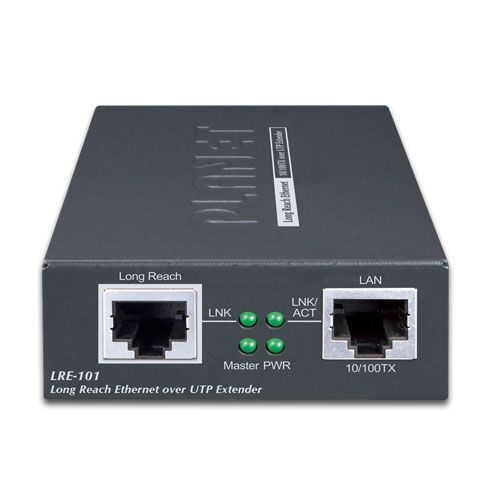

- LED Indicators:
- Power (Green), LAN (10/100 Mbps LNK/ACT), Long Reach (LNK), Master Mode
Power Supply:
- Input: 5V DC, 2A (external adapter)
- Power Consumption: 1.55 Watts
Environmental:
- Operating Temperature: 0 – 50 °C
- Storage Temperature: –10 – 70 °C
- Humidity: 5 – 95% (non-condensing)
Certifications:
- FCC Part 15 Class A, CE
- Standards: IEEE 802.3, 802.3u, 802.3x
