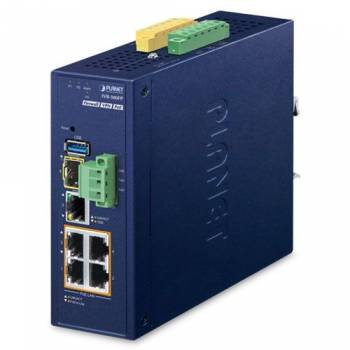

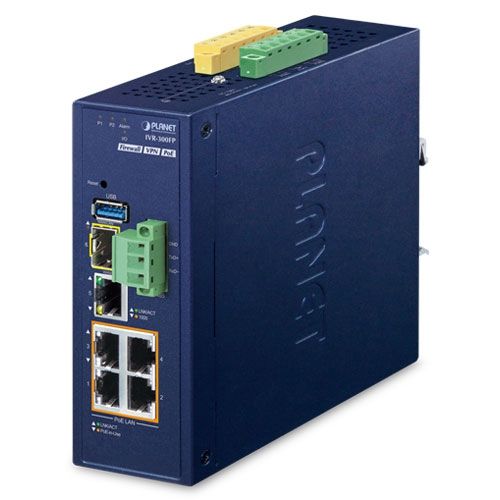

Planet Industrial 4-Port VPN Security Gateway IVR-300FP

The industrial Gigabit router is the ideal solution for demanding network environments where reliability, performance, and flexible installation are crucial. With a total of six network ports – five copper and one fiber – along with advanced VPN capabilities and Power-over-Ethernet (PoE+), this device delivers an outstanding combination of connectivity and security for industrial applications.

Its rugged IP30-rated metal case supports DIN-rail or wall mounting, ensuring dependable operation even under extreme environmental conditions ranging from -40 to 75 °C. The inclusion of two digital inputs and outputs, as well as a serial interface, makes it simple to integrate into control systems.

Four RJ45 ports provide PoE+ with up to 120 watts total power and support for four Class 4 powered devices. Advanced PoE management features such as PD Alive Check, scheduling, and power monitoring make this device an effective central power and network management hub.

Security-wise, the router offers extensive VPN protocol support (IPSec, GRE, PPTP, L2TP, SSL) along with robust encryption and authentication options. Management via web interface, SNMP, or secure protocols like TLSv1.2 round out the comprehensive feature set.

Technical Specifications (English):

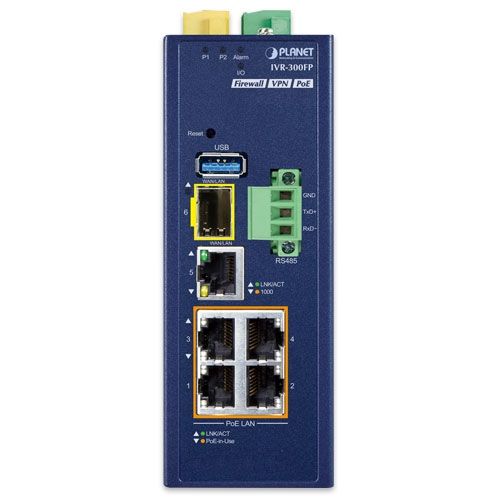

Ports:

• Copper Ports: 5 x 10/100/1000BASE-T RJ45 (Ports 1–4 LAN, Port 5 WAN/LAN)
• Fiber Port: 1 x 1000BASE-X SFP (Port 6 WAN/LAN)
• Serial Interface: 1 x RS485 (3-pin terminal block)
• USB: 1 x USB 3.0

Digital Inputs/Outputs:

• 2 x DI: Level 0 (-24V~2.1V), Level 1 (2.1V~24V), max. 10mA @24V DC
• 2 x DO: Open Collector, max. 100mA @24V DC

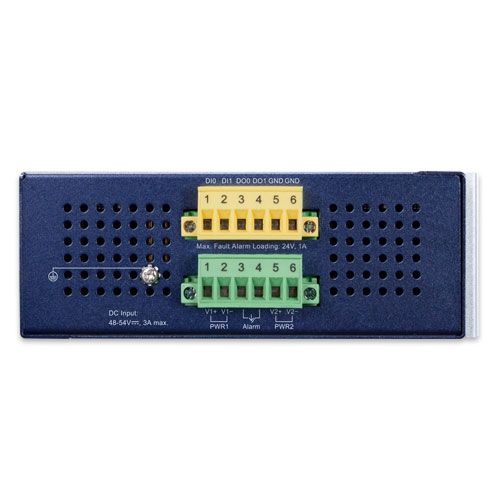

Power Connector:

• 6-pin removable terminal block (Pin 1/2 Power 1, 3/4 Alarm, 5/6 Power 2)

Button:

• Reset < 5 sec: Reboot
• Reset > 5 sec: Factory reset

Enclosure:

• Metal, IP30-rated
• Mounting: DIN-rail or wall

LED Indicators:

• System: P1 (Green), P2 (Green), Alarm (Red), I/O (Red)
• Ports 1–4: LNK/ACT (Green), PoE in use (Amber)
• Port 5: LNK/ACT (Green), 1000 LNK (Amber)
• Port 6 (SFP): LNK/ACT (Green)

Dimensions & Weight:

• Size: 50 x 135 x 135 mm
• Weight: 765g

Power Supply:

• Input: 48–54V DC, 3A
• Consumption: Max. 7.56W (no load), 127W (full load)

PoE:

• Standard: IEEE 802.3af/at PoE+ PSE
• Per-Port Output: 54V DC, max. 35W
• Total Budget: 120W, max. 4 Class 4 PDs
• Features: Alive Check, Scheduling, Recycling, Monitoring

VPN:

• Protocols: IPSec, GRE, PPTP, L2TP, SSL (OpenVPN)
• Tunnels: Up to 60
• Throughput: Up to 108 Mbps
• Encryption: DES, 3DES, AES-128/192/256
• Authentication: MD5, SHA-1/256/384/512

Management:

• Interfaces: Web browser, SNMP v1/v2c, PLANET Discovery Tool
• Security: TLSv1.2, SNMPv3
• Features: Setup wizard, Dashboard, System/connection status, Statistics, Auto reboot, Diagnostics

Certifications:

• CE, FCC

Environmental:

• Operating: -40 ~ 75 °C, 5–90% RH (non-condensing)
• Storage: -40 ~ 85 °C, 5–90% RH (non-condensing)
