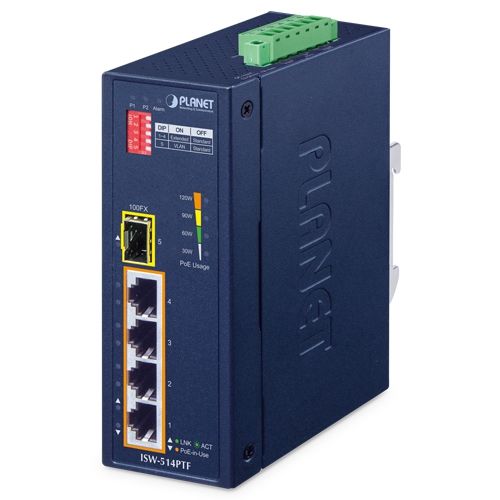

PLANET 4+1 100FX SFP Industrial Ethernet Switch w/ 4 PoE

The PLANET ISW-514PTF is a robust industrial-grade unmanaged Fast Ethernet PoE+ switch with 4 IEEE 802.3at-compliant PoE+ 10/100BASE-TX ports and one 100BASE-FX SFP uplink port. Designed for IIoT and factory automation applications, the ISW-514PTF delivers up to 120 watts of total PoE power, operates from -40 to 75°C, and supports flexible long-distance fiber uplinks – making it ideal for deployment in harsh environments.

Key Features:

• 4 x 10/100BASE-TX RJ45 ports with PoE+ (IEEE 802.3at) support
• 1 x 100BASE-FX SFP fiber uplink port (2~120km with appropriate module)
• 120-watt total PoE power budget, up to 36W per port
• DIP switch configurable: Standard / VLAN / Extend (up to 250m @ 10Mbps)
• Supports PROFINET traffic prioritization with QoS
• Rugged IP40-rated metal housing for DIN-rail or wall mounting

Technical Specifications – Hardware:

Copper Ports:

• 4 x 10/100BASE-TX with auto-MDI/MDI-X

Fiber Port:

• 1 x 100BASE-FX SFP slot (multi-mode or single-mode module compatible)

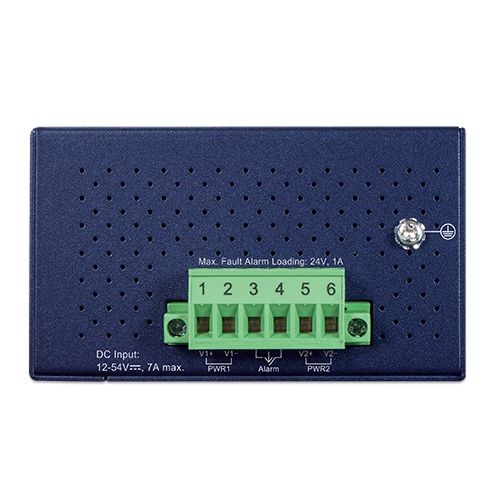

Power Input:

• 12~54V DC, redundant inputs
• Power failure alarm via relay output (1A @ 24V DC)
• Power consumption: max. 133W with full PoE+ loading

PoE Features:

• IEEE 802.3af/at compliant (End-span)
• Per port: 54V DC output, up to 36W
• Total PoE budget: 120W @ 54V DC
• Extend mode supports 250m at 25W (10Mbps)

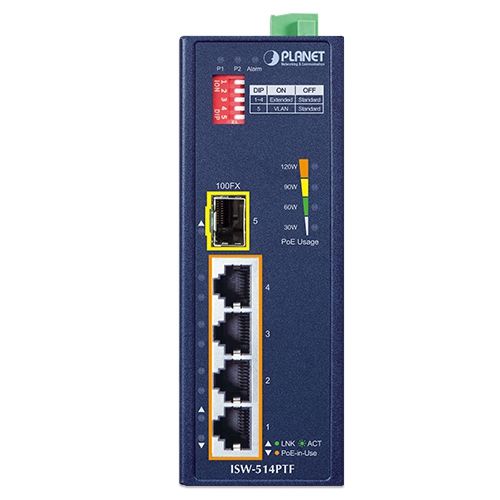

LED Indicators:

• System: Power 1, Power 2, Alarm
• Per port: LNK/ACT (Green), PoE-in-use (Amber)
• PoE Usage LEDs: 30W, 60W, 90W, 120W

Mechanical:

• Housing: IP40-rated metal
• Dimensions: 50 x 87.8 x 135 mm
• Weight: 613g
• Mounting: DIN-rail, wall, or side wall mount

Switching Features:

• Switching Fabric: 1 Gbps
• MAC Address Table: 1K entries
• Throughput: 0.74 Mpps @ 64 bytes
• Jumbo Frame: 1536 bytes
• Flow Control: IEEE 802.3x (full duplex), Back pressure (half duplex)
• PROFINET QoS pass-through

Standards and Compliance:

• IEEE 802.3af/at, 802.3u, 802.3x, PROFINET QoS
• CE, FCC Part 15 Class A
• IEC60068-2 compliant for shock, vibration, and free-fall

Environmental:

• Operating Temperature: -40 ~ 75 °C
• Storage Temperature: -40 ~ 85 °C
• Humidity: 5 ~ 90% (non-condensing)
