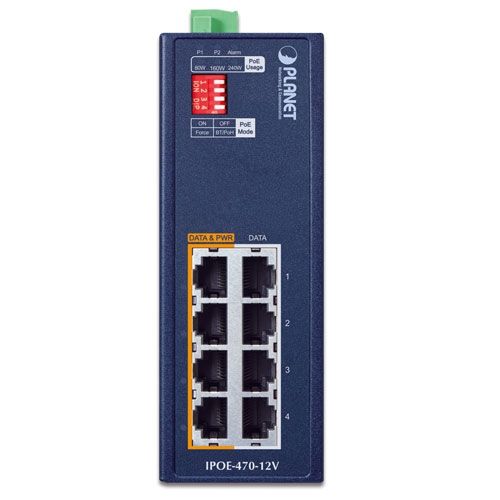

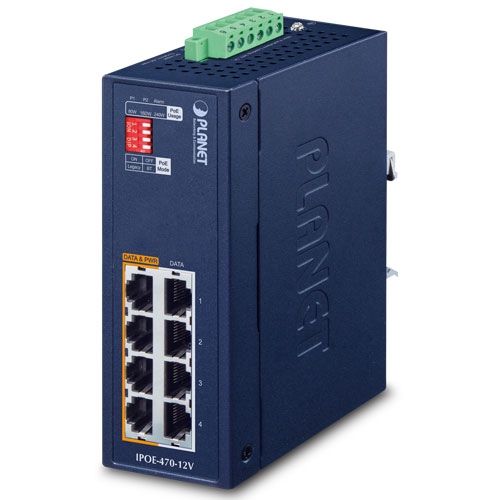

PLANET Industrial 4-Port GE 802.3bt PoE++ Injector Hub
|
289,01 EUR |
|
|
( 343,92 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 546536 |
|---|---|
| Mfg Part No: | IPOE-470-12V |
| UPC/EAN: | 4711605285605 |
| Weight: | 0.12 kg |
Product information for Planet IPOE-470-12V:
Highlights:
- 4 RJ45 ports delivering up to 95W each
- Total power budget:
- 60W @ 12V input
- 120W @ 24V input
- 240W @ 54V input
- Fully compliant with IEEE 802.3bt Type 4 & 802.3at
- Supports up to 2.5Gbps per port
- Per-port DIP switch for BT or Legacy mode
- LED indicators for power usage (80W, 160W, 240W)
Perfect for High-Power PoE Devices:
- PTZ speed dome cameras
- Touch screen AIO PCs
- POS systems
- Digital signage
- PoE lighting
Boosted Power Input Flexibility
The wide 12–54V DC input range with internal step-up to 54V ensures reliable output even in vehicular or field installations.
Durable & Safe Operation
- Metal IP30-rated enclosure
- Operating temp: -40 to +75°C
- ESD protection: ±6kV
- Surge protection: ±6kV
Technical Specifications:
Network Ports:
- 4 x RJ45 Data Input (10/100/1000/2500 Mbps)
- 4 x RJ45 Data + Power Output
PoE Capabilities:
- IEEE 802.3bt (Type 4), backward-compatible with 802.3at
- DIP switch:
- OFF = BT (95W)
- ON = Legacy (60W)
- Max budget: 240W @ 54V
Power Input:
- Voltage: 12–54V DC, redundant with reverse polarity protection

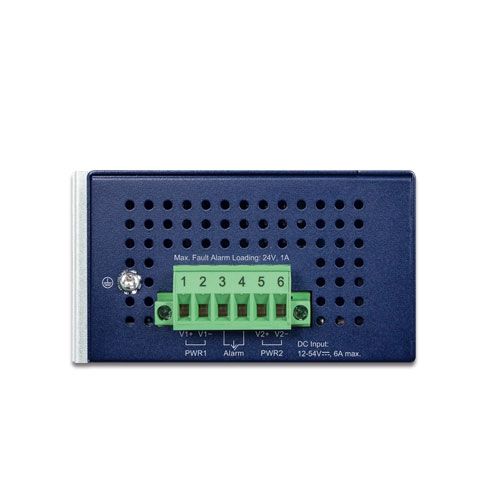

- Terminal block (6-pin):
- Power 1: Pin 1/2
- Power 2: Pin 5/6
- Alarm: Pin 3/4
Power Consumption:
- System ON:
- 12V: 3.21W
- 54V: 4.75W
- Full load:
- 12V: 73W
- 54V: 260.3W
Mechanical:
- Dimensions: 50 x 87.8 x 135 mm
- Weight: 688g
- Housing: IP30-rated metal
- Mounting: DIN-rail or wall
Indicators:
- Power 1 / 2 (Green), Alarm (Red)
- PoE usage: 80W / 160W / 240W (Amber)
- PoE-in-use per port (Amber)
Cabling:
- Max 100 meters
- Compatible with Cat.5e, 6, 6A cables
Environmental:
- Operating temp: -40 to +75°C
- Humidity: 5–90%, non-condensing
Compliance:
- IEEE 802.3 / u / ab / at / bt
- FCC Part 15 Class A, CE
- IEC 60068-2 for drop, shock, vibration
