PLANET Industrial IEEE 802.3at High Power over Ethernet
|
84,85 EUR |
|
|
( 100,97 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 1225920 |
|---|---|
| Mfg Part No: | IPOE-162S |
| UPC/EAN: | 4711213687815 |
| Weight: | 0.55 kg |

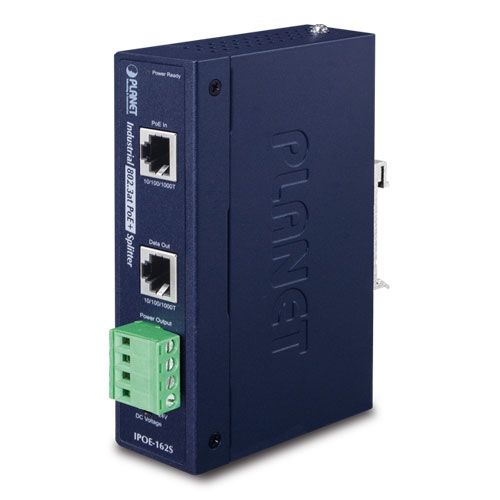

Product information for Planet IPOE-162S:
Its rugged IP30-rated metal enclosure, wide -40 to 75°C operating range, and built-in ESD/EFT protection make it ideal for harsh conditions. The IPOE-162S offers dual DC output through a 4-pin terminal block and provides a flexible, plug-and-play solution for powering access points, cameras, or other high-power equipment via a single Ethernet cable.
Selectable DC Output Voltage for Versatility
A DIP switch on the unit allows users to select either 12V DC @ 2A or 24V DC @ 1A—suitable for a wide range of devices including PTZ cameras, wireless APs, or camera housings.
Dual Output Capability
The splitter can share up to 25 watts total between two devices (e.g., IP camera + heater, or IP camera + PTZ motor). Note: total DC1 + DC2 load must not exceed 25W.
Simplified and Reliable Cabling
Only one RJ45 Ethernet cable is needed from an IEEE 802.3at injector (e.g., IPOE-162) to provide both data and power. Auto-detection ensures safe integration with PoE power sources.
Technical Details:

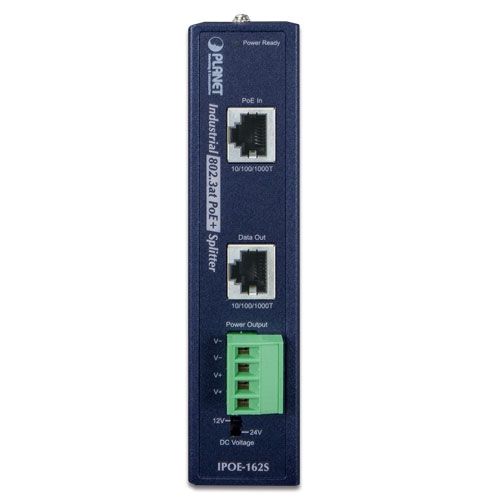

Interfaces:
- 1 x RJ45 (PoE Power + Data IN, 10/100/1000Mbps)
- 1 x RJ45 (Data OUT, 10/100/1000Mbps)
- 1 x 4-pin terminal block (DC OUT)
PoE & Power:
- Input: 48–56V DC via IEEE 802.3at PoE
- Output: 12V DC (2A) or 24V DC (1A), max 25W total
- Voltage Selection: DIP switch (12V / 24V)
- Powers up to 2 devices (combined ≤25W)
Cabling:
- 4-pair UTP/STP, Cat.5/5e/6
- Distance: up to 100 meters
Indicators & Housing:
- LED: Power Ready (Green)
- Case: IP30 metal housing
- Dimensions: 135 x 87.8 x 32 mm
- Weight: 421 g
- Mounting: DIN-rail or wall mount
Surge & ESD Protection:
- 6KV DC protection on Ethernet and power lines
Environment:
- Operating Temp: -40 to 75°C
- Storage Temp: -40 to 85°C
- Humidity: 5 – 95% (non-condensing)
Compliance & Certifications:
- IEEE 802.3 / 802.3u / 802.3ab / 802.3at
- FCC Class A, CE
- Stability Testing: IEC60068-2-32 (drop), -2-27 (shock), -2-6 (vibration)
