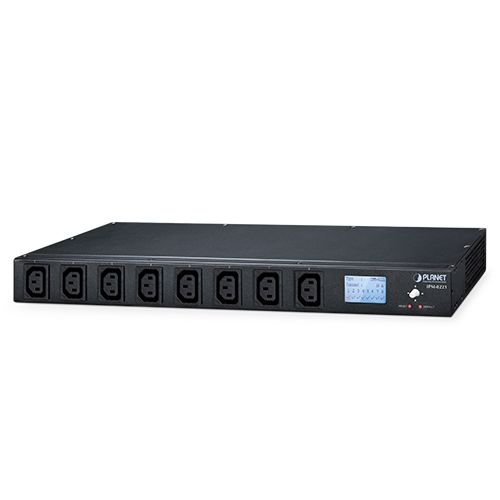

Planet IP-based 8-port Switched Power Manager IPM-8221

Product Description:

The PLANET IPM-8221 is an IP-based Power Management Unit (IPM) equipped with 8 individually switchable outlets, designed to support ESG (Environmental, Social, Governance) principles through efficient and intelligent energy management. With its 1U rack-mountable form factor and built-in remote access capabilities, it is ideal for modern IT infrastructure requiring precise control and power protection.

Integrating seamlessly with PLANET’s Universal Network Management System (UNI-NMS) and Smart Discovery Utility, the IPM-8221 provides a full overview of power and environmental conditions, making it easy to manage powered devices (PDs) remotely while maintaining a sustainable and secure infrastructure.

Smart Power Control

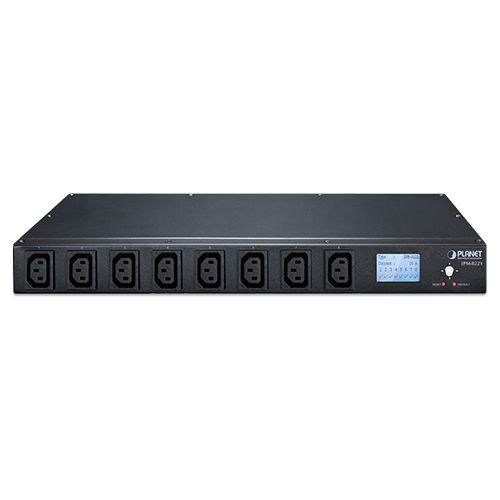

Each of the 8 IEC320 C13 outlets can be controlled independently via web interface, SNMP, or the on-unit LCD panel. Real-time power consumption data, current, voltage, and power factor readings give IT managers deep insight into network loads.

Overload Protection & Scheduling
The built-in 16A circuit breaker provides secure power delivery and prevents damage during overload events. Scheduled power control allows users to define on/off times and receive alerts before shutdowns.

Environmental Monitoring via Sensor
Equipped with an RJ11 port and bundled sensor, the IPM-8221 can detect ambient temperature and humidity, sending alerts if values exceed predefined thresholds—helping prevent equipment damage from adverse environmental conditions.

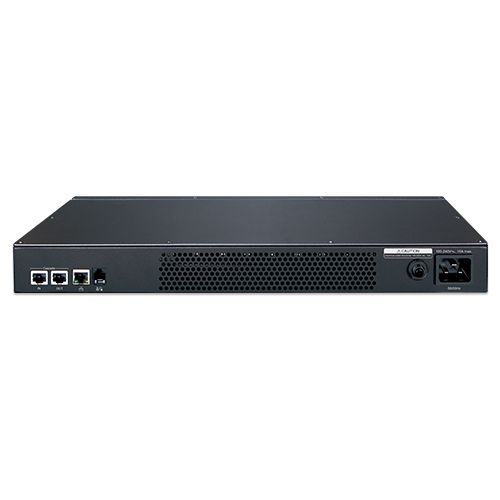

Cascade Connectivity for Network Expansion
With dual RJ45 cascade ports, the unit can link to up to 255 additional PDUs, simplifying power deployment across server racks or distributed environments.

Energy Optimization & Remote Management
Monitor energy usage, historical power anomalies, and outlet behavior from anywhere. Multiple browser support, TLS 1.2 encryption, IP filtering, user account control, and SNMP MIB compatibility make it secure and versatile.

Technical Details:

Power Ports:

• 8 x IEC320 C13 output (10A each)
• 1 x IEC320 C20 inlet (16A)

Power Distribution:

• Voltage: 100–240V AC
• Frequency: 50–60Hz
• Total Load: up to 3800W
• Circuit Breaker: 1 x 16A

Sensor & Expansion:

• 1 x RJ11 port for TH sensor (included)

Network Connectivity:

• 1 x RJ45 10/100BASE-TX for LAN
• 2 x RJ45 cascade ports

Display & Controls:

• LCD Panel: shows current, voltage, power, environment, and network data
• LEDs: Power and network status (Green/Orange)
• Buttons: Default, Reset, Interface Select

Management & Security:

• Protocols: TCP/IP, UDP, HTTP/HTTPS (TLS1.2), DHCP, NTP, Ping
• Interfaces: Web GUI, SNMP, PLANET UNI-NMS, Smart Discovery Utility
• Email and popup notifications, power event logs, energy reports
• User Roles: Operator, Visitor
• Dynamic password verification, IP filtering, firmware upgrades

Housing & Installation:

• Material: Metal
• Dimensions: 442 x 159 x 44.5 mm
• Weight: 1.84 kg
• Mounting: 1U rack-mount or desktop

Certifications & Standards:

• CE, FCC
• IEEE 802.3, 802.3u

Environmental:

• Operating Temperature: 0–60 °C
• Humidity: 0–90% (non-condensing)
