PLANET IP30 10/100/1000T to 2-Port 100/1000X SFP Gbit Conv.
|
155,96 EUR |
|
|
( 185,59 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 676833 |
|---|---|
| Mfg Part No: | IGT-1205AT |
| UPC/EAN: | 4711213689529 |
| Weight: | 0.65 kg |
Product information for Planet IGT-1205AT:

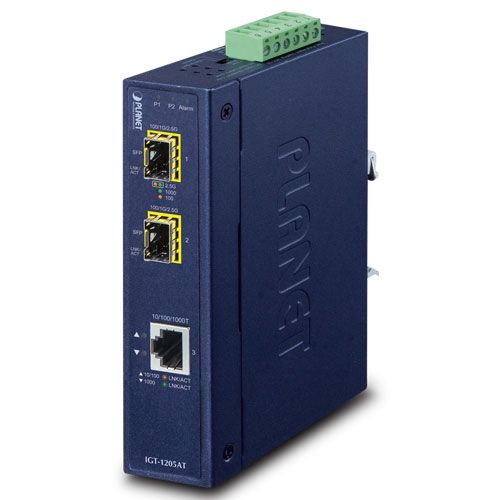

The PLANET IGT-1205AT is a high-performance Industrial Gigabit Media Converter designed to extend Ethernet networks over long distances in harsh environments. Featuring one 10/100/1000BASE-T RJ45 port and two 100/1000/2500BASE-X SFP interfaces, it supports either a 3-port switch mode or a 2-port fiber redundancy mode, configurable via DIP switch.
The redundancy function ensures uninterrupted service in mission-critical applications, automatically switching traffic to a backup fiber link when the primary fails. Built with an IP30-rated metal enclosure and wide operating temperature range (-40 to +75 °C), this converter is ideal for deployments in transportation cabinets, outdoor surveillance, or factory automation systems.
Technical Specifications (English):
Network Ports:
- 1x 10/100/1000BASE-T RJ45 port with auto MDI/MDI-X
- 2x SFP slots for 100/1000/2500BASE-X transceivers
Operating Modes (via DIP Switch):
- 3-port switch mode (default)
- 2-port fiber redundancy mode (auto-failover)
Performance:
- Switch Fabric: 12 Gbps
- Throughput: 8.93 Mpps @ 64 Bytes
- Jumbo Frame Support: up to 9216 Bytes
- MAC Address Table: 4K entries
- Store-and-Forward forwarding mode

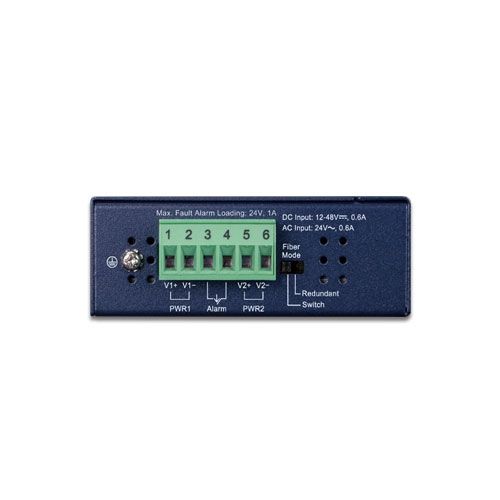

Power Supply:
- Input: 12–48V DC or 24V AC (redundant, reverse polarity protected)
- Power Consumption: Max 4.8W / 16 BTU
- Alarm Relay: 1A @ 24V DC on power failure
Enclosure & Installation:
- IP30 rugged metal housing
- Dimensions: 32 x 87.8 x 135 mm
- Weight: 412g
- DIN rail or wall-mountable
Environmental Tolerance:
- Operating Temp: -40 to +75 °C
- Humidity: 5–95% (non-condensing)
- ESD Protection: 6KV
- Shock/Vibration: IEC60068 compliant

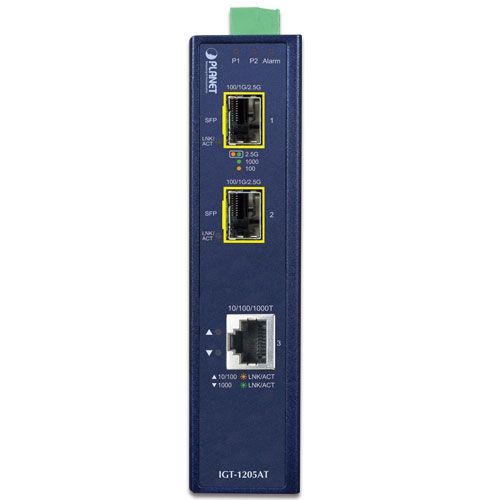

LED Indicators:
- Power 1/2 (Green), Alarm (Red)
- RJ45: 1G (Green), 100M (Amber)
- SFP: 2.5G (Green+Amber), 1G (Green), 100M (Amber)
Compliance & Standards:
- IEEE 802.3, 802.3u, 802.3ab, 802.3z
- IEEE 802.3x Full-Duplex Flow Control
- IEEE 802.1p Class of Service (CoS)
- FCC Class A, CE certified
Use Cases:
- Fiber redundancy in transportation or factory control rooms
- Long-range Ethernet extension over multimode or single-mode fiber
- Space-saving deployments in compact enclosures
