PLANET IGS-5225-4T2S – Compact Industrial L2+/L3 Lite Gigabit Switch

Built for Harsh, Space-Constrained Industrial Applications

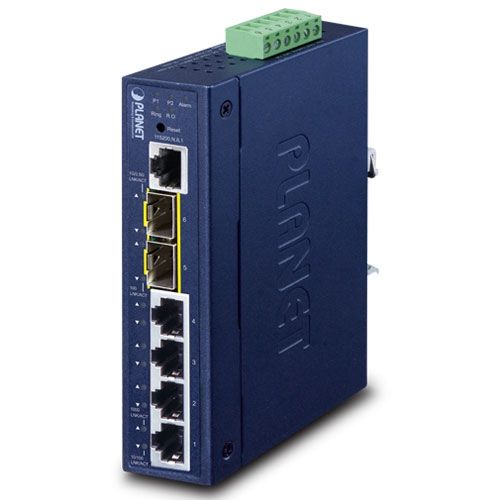

The PLANET IGS-5225-4T2S is a space-saving, fully managed industrial switch with 4 RJ45 ports and 2 multi-speed 100/1000/2500BASE-X SFP slots. Designed for extreme temperature environments (-40 to 75°C) and enclosed in a robust IP30 metal case, this model offers full Layer 2 management, Layer 3 static routing, and advanced cybersecurity. With its compact size, redundant power, and DIN-rail or wall mount options, it is ideal for industrial Ethernet deployments, surveillance backbones, and SCADA environments.

Key Features:

• 4× Gigabit RJ45 ports
• 2× 100/1000/2500BASE-X SFP uplinks
• Layer 3 IPv4/IPv6 static routing (32 entries)
• Dual DC (12–48V) or 24V AC input
• Cybersecurity: SSH, TLS, ACL, RADIUS, TACACS+
• Rapid recovery with G.8032 ERPS (<10ms)
• SFP-DDM & port backup function

Technical Overview:

Interfaces:

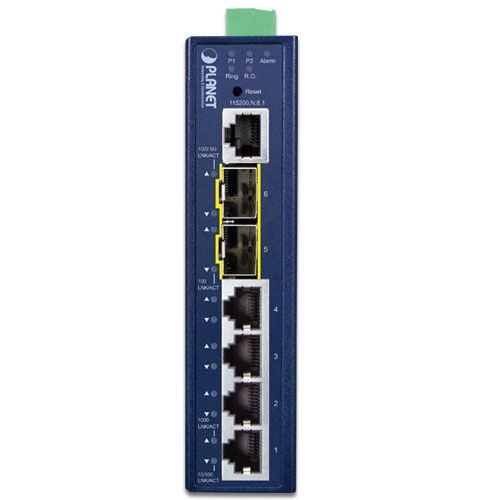

• 4 × RJ45 10/100/1000BASE-T ports
• 2 × Multi-speed 100/1000/2500BASE-X SFP slots
• 1 × RJ45 Console

Management:

• Web interface, CLI, SNMP v1/v2c/v3
• Secure via SSHv2, TLSv1.2
• Supports PLANET Smart Discovery, NMS, and CloudViewer

Switching Performance:

• Fabric: 18 Gbps non-blocking
• Store-and-Forward, 9K jumbo frames
• MAC Table: 8K entries

Layer 3 Capabilities:

• 32 IPv4/IPv6 static routes
• VLAN-based routing (8 VLAN interfaces)

Layer 2 Features:

• VLANs: IEEE 802.1Q, Q-in-Q, Private VLAN
• LACP: 4 groups, 4 ports each
• STP/RSTP/MSTP support
• Port mirroring, ERPS ring recovery <10ms
• IGMP/MLD snooping, multicast filtering

Security Features:

• ACLs (MAC/IP-based), 256 entries
• 802.1X (Port & MAC), DHCP Snooping, IP Source Guard
• RADIUS, TACACS+, Guest VLAN, DAI

QoS and Bandwidth:

• 8 QoS queues, WRR & strict priority
• Traffic classification: CoS, DSCP, TCP/UDP
• Bandwidth control: 500Kb–1000Mbps

Diagnostics & Alarming:

• Event alerts via SMTP/SNMP trap
• SFP-DDM for real-time fiber monitoring
• Cable diagnostics, remote ICMPv6/v4 ping

Ruggedized Design:

• IP30 metal housing
• Operating temp: –40 to +75 °C

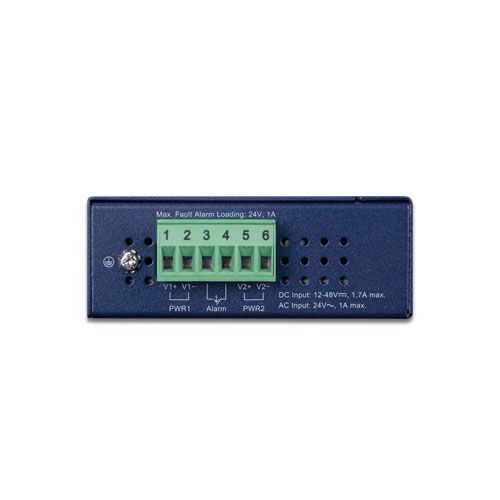

• Power: Dual 12–48V DC or 24V AC
• Protection: 6KV ESD, EFT
• Size: 32 × 87.8 × 135 mm
• Weight: 442g

Use Cases:

• Factory floor fiber switching
• Industrial backbones with VLAN routing
• Field cabinets for IP video or wireless AP uplinks
