PLANET Industrial 8-Port 10/100/1000T + 4-Port 100/1000X
|
426,38 EUR |
|
|
( 507,39 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1226005 |
|---|---|
| Mfg Part No: | IGS-12040MT |
| UPC/EAN: | 4711605281010 |
| Weight: | 1.36 kg |

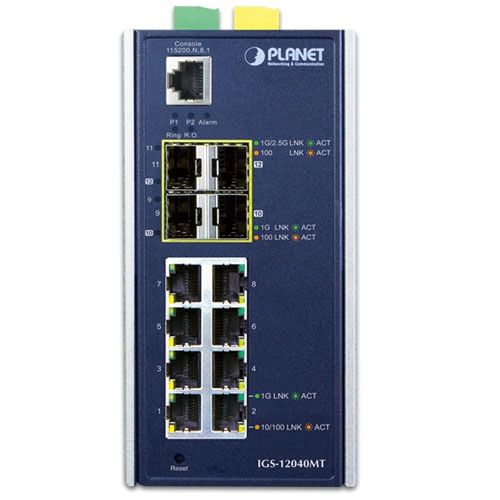

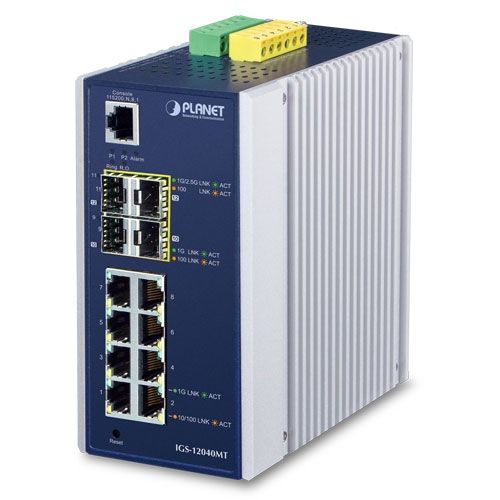

Product information for Planet IGS-12040MT:
Advanced Fiber Industrial Switch for High-performance, Secure Networking
The PLANET IGS-12040MT is a rugged, fully managed industrial Ethernet switch with advanced features like Layer 3 VLAN routing, enhanced cybersecurity, redundant power design, ERPS ring protection, and support for both Modbus TCP and IEEE 1588v2. With 8 RJ45 ports, 2 1G SFPs, and 2 multi-speed SFP ports up to 2.5Gbps, the IGS-12040MT offers flexible, high-bandwidth fiber uplinks and reliable industrial automation communication.
Key Features:
- 8x 10/100/1000BASE-T RJ45
- 2x 100/1000BASE-X SFP + 2x 100/1000/2500BASE-X SFP
- L3 Static Routing, VLAN Routing, Modbus TCP, IEEE 1588v2
- Advanced cybersecurity with SSHv2, TLSv1.2, SNMPv3
- DI/DO alarm integration
- 12–72 V DC / 24 V AC dual power with failover
Technical Specifications (English):
Ports:
- 8 x RJ45 10/100/1000BASE-T (Auto-MDI/MDI-X)
- 2 x SFP 100/1000BASE-X
- 2 x SFP 100/1000/2500BASE-X
Switching:
- Switch Fabric: 30 Gbps
- Throughput: 22.32 Mpps
- MAC Table: 8K entries
- Jumbo Frame: 9K bytes
- Store-and-Forward architecture
Layer 2:
- VLANs: 802.1Q, Q-in-Q, MAC/Protocol-based, Voice VLAN, GVRP
- Aggregation: 6 groups, 8 ports each, Static/LACP
- Spanning Tree: STP, RSTP, MSTP, BPDU Guard
- IGMP/MLD Snooping, MVR, Loop Protection, ERPS, LLDP
- QoS: DSCP, 8 queues, WRR, bandwidth shaping
Layer 3:
- IPv4/IPv6 static routing
- 32 routing entries
- 8 VLAN interfaces
Security:
- ACL: IP-/MAC-based, up to 256 rules
- 802.1X, RADIUS, TACACS+, MAC binding, DHCP Snooping
- ARP inspection, IP Source Guard, DoS Defense
Management:
- Web UI, Telnet, Console, SNMPv1/v2c/v3
- SSHv2, TLSv1.2, DHCP Server/Relay, RMON, Dual Image
- Firmware via HTTP/TFTP, SNTP, Syslog, LLDP, NTP
- PLANET Smart Discovery, SFP-DDM diagnostics
Hardware & Environment:
- Size: 76.8 x 107.3 x 152 mm
- Weight: 1,010 g
- IP30 aluminum housing
- DIN-rail or wall-mountable
- Operating Temp: -40 ~ 75 °C
- ESD: ±6kV; Surge: ±4kV
Power Supply:
- Dual input: 12–72V DC or 24V AC
- Power Consumption: Max. 12W
- Reverse polarity and failover protection

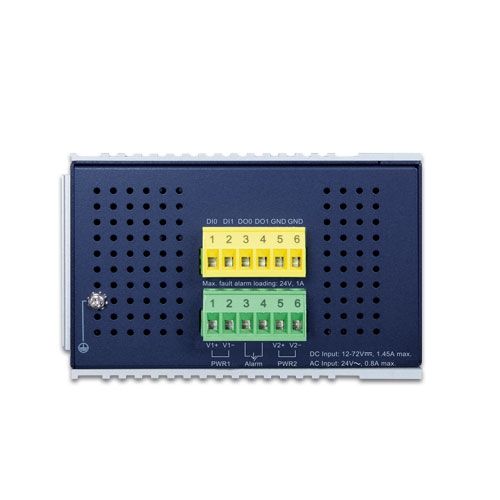

Alarm Integration:
- 2 x Digital Inputs (DI), 2 x Digital Outputs (DO)
- Alarm relay: 1A @ 24V DC for power failure
