PLANET Industrial 8-Port 10/100/1000T + 2 1000X SFP
|
183,60 EUR |
|
|
( 218,48 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1226006 |
|---|---|
| Mfg Part No: | IGS-1020TF |
| UPC/EAN: | 4711605282154 |
| Weight: | 0.76 kg |
Product information for Planet IGS-1020TF:

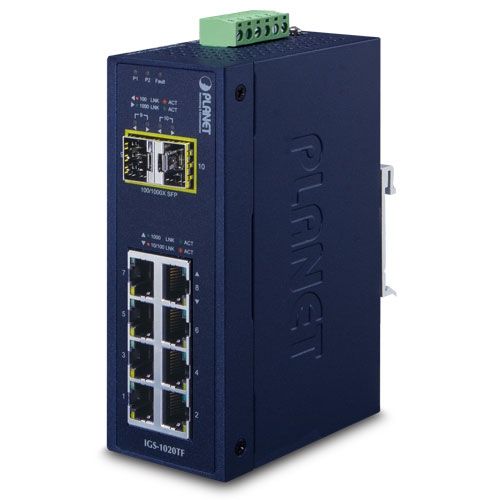

PLANET IGS-1020TF – Industrial 10-Port Gigabit Ethernet Switch with 2 SFP Slots
High-Performance, Hardened Switch for Harsh Industrial Networking
The PLANET IGS-1020TF is a 10-port unmanaged Gigabit Ethernet switch built for mission-critical environments. With 8 RJ45 ports and 2 dual-speed SFP slots, it supports full Gigabit speeds and long-range fiber uplinks. Its rugged IP30 housing, wide operating temperature (-40 to 75 °C), and redundant power support make it ideal for surveillance, automation, and long-distance backbone deployment.
Ports:
High-Performance, Hardened Switch for Harsh Industrial Networking
The PLANET IGS-1020TF is a 10-port unmanaged Gigabit Ethernet switch built for mission-critical environments. With 8 RJ45 ports and 2 dual-speed SFP slots, it supports full Gigabit speeds and long-range fiber uplinks. Its rugged IP30 housing, wide operating temperature (-40 to 75 °C), and redundant power support make it ideal for surveillance, automation, and long-distance backbone deployment.
Key Features:
- 8x 100/1000BASE-T, 2x 100/1000BASE-X SFP slots
- Operates from -40 to 75 °C, fanless design
- IEEE 802.3az compliant (Energy Efficient Ethernet)
- Redundant 12–48 V DC or 24 V AC power input
- Surge & ESD protection: up to ±6/8 kV
- Wall or DIN-rail mounting
Technical Specifications (English):

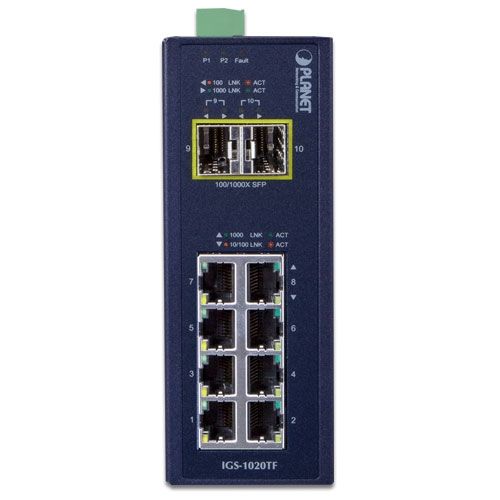

Ports:
- 8 x 10/100/1000BASE-T RJ45, Auto-MDI/MDI-X
- 2 x 100/1000BASE-X SFP (Port 9–10), 100BASE-FX compatible
Switching Specs:
- Switching Architecture: Store-and-Forward
- Switch Fabric: 20Gbps
- Forwarding Rate: 14.88 Mpps
- MAC Address Table: 4K
- Jumbo Frame Support: 9216 bytes
- Flow Control: IEEE 802.3x / Back pressure
Mechanical:
- Dimensions: 50 x 87.8 x 135 mm
- Weight: 540g
- Rugged IP30-rated metal case
- DIN-rail or wall-mountable
Power Input:
- 12–48V DC or 24V AC (redundant), reverse polarity protection
- Power Consumption: max. 8.7W

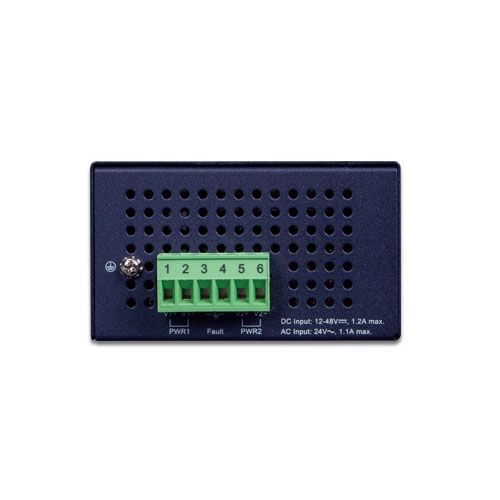

- 6-pin terminal block with fault relay (1A @ 24V DC)
Environmental Specs:
- Operating Temp: -40 ~ 75 °C
- Storage Temp: -40 ~ 75 °C
- Humidity: 5 ~ 95% non-condensing
Cable Support:
- Copper: Cat.3–6 UTP/STP up to 100m
- Fiber:
- MMF: up to 2 km (100BASE-FX) / 550m (1000BASE-SX)
- SMF: up to 120 km (1000BASE-LX, depending on SFP)
Advanced Functions:
- Link Down Power Saving
- Intelligent power scaling by cable length
- ESD: ±6kV contact, ±8kV air
- Surge Protection: ±4kV
