PLANET Industrial 8-Port 10/100/1000T 802.3at PoE + 2
|
503,54 EUR |
|
|
( 599,21 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 1226010 |
|---|---|
| Mfg Part No: | IGS-10020HPT |
| UPC/EAN: | 4711213689116 |
| Weight: | 1.66 kg |

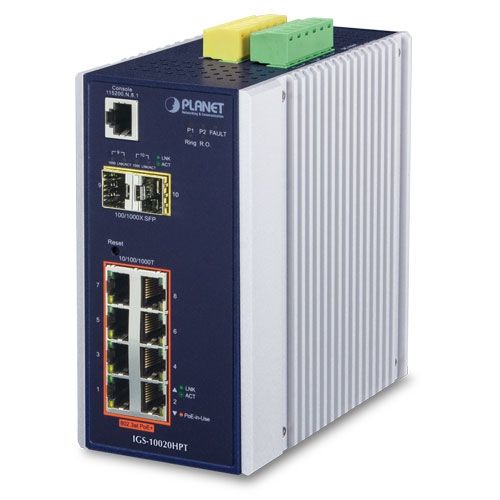

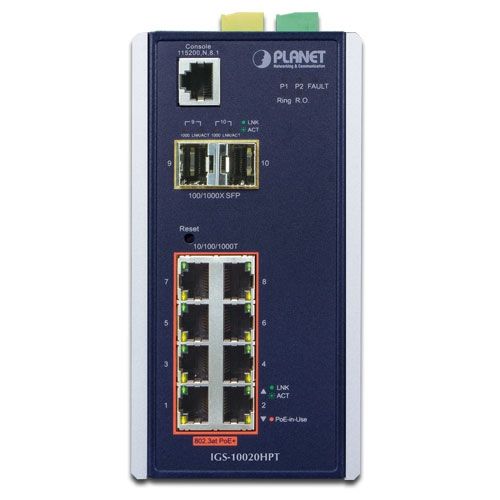

Product information for Planet IGS-10020HPT:
Environmentally Hardened, High Power PoE+ Switch with Advanced Security and L3 Routing
The PLANET IGS-10020HPT Series is a hardened Layer 3 industrial switch with 8 Gigabit PoE+ ports and 2 SFP uplinks (up to 2.5G). Designed for transportation, surveillance, and smart factory applications, it features rugged IP30 housing, dual power inputs (12–48V/54V), and extreme temperature tolerance (-40 to 75°C).
Delivering up to 36W per port and 240W total, it powers high-consumption PDs like PTZ cameras and APs. Advanced features include ONVIF support, PoE scheduling, PD monitoring, cybersecurity via ACLs and 802.1X, and ERPS redundancy. It’s also SCADA- and Modbus-ready and supports management through Web, SNMP, CLI, and PLANET's UNI-NMS.
Technical Specifications:
Interfaces:
- 8 x 10/100/1000BASE-T PoE+ ports
- 2 x SFP slots (100/1000/2500BASE-X)

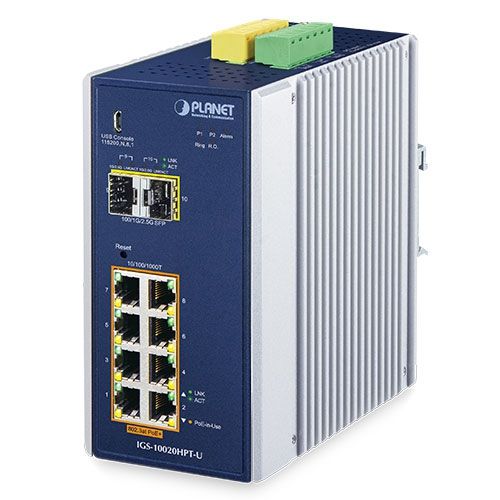

- 1 x RJ45 console (IGS-10020HPT) / 1 x USB console (IGS-10020HPT-U)
Power over Ethernet:
- IEEE 802.3af/at compliant
- 36W max per port, 240W total
- PoE management: schedule, PD reboot, PD alive check, priority, diagnostics
Switching & L2/L3 Features:
- Store-and-Forward, 26 Gbps Fabric
- Jumbo Frame: 9KB
- 4K VLANs: Q-in-Q, MAC/Protocol VLANs, Voice VLAN, Private VLAN
- STP/RSTP/MSTP, LACP, ERPS, loop protection
- 8 Queues, DSCP/QoS
- ACLs: IP/MAC-based, Port security
- IPv4/v6 Static Routing (32 entries)
Security:
- IEEE 802.1X (Port & MAC-based), RADIUS, TACACS+
- DHCP Snooping, ARP Inspection, IP Source Guard
- Private VLAN, Port Isolation
Management:
- Web UI, Telnet, CLI, SNMP v1/v2c/v3, SSHv2, TLS
- ONVIF, LLDP, CloudViewer, PLANET UNI-NMS
- Event Alerts: SMTP, Trap, Syslog, Fault Alarm
- Diagnostic: Cable Testing, Ping, SFP DDM

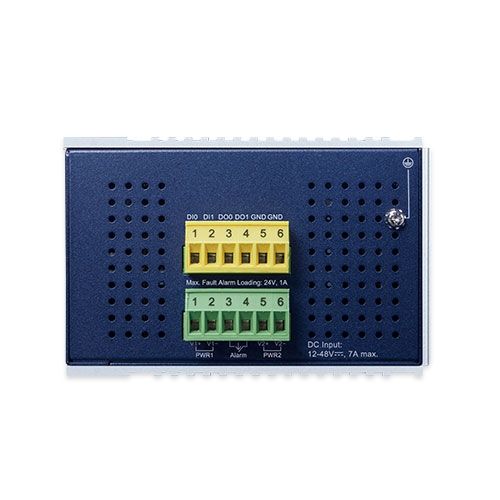

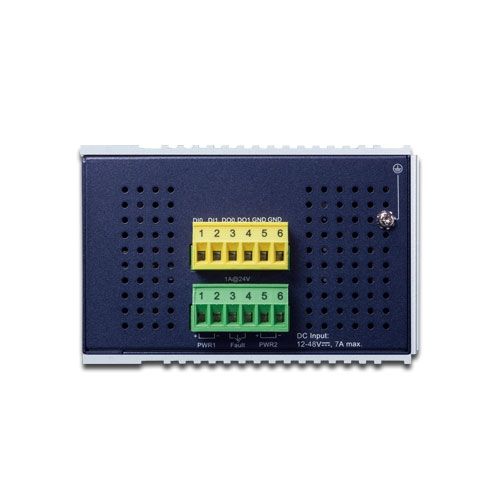

Power & Housing:
- Input: 12–48V DC / 12–54V DC
- Consumption: up to 255W
- IP30 Aluminum, DIN-rail/wall mount
- Dimensions: 76.8 × 107.3 × 152 mm
- ESD/EFT: ±6kV
Environmental:
- Operating Temp: -40 to 75°C
- Humidity: 5–95% non-condensing
Certifications:
- CE, FCC Class A, e-Mark
- IEEE 802.3 (af/at), 802.1x, 802.1Q, 802.3ad, 802.1D/w/s
- IGMP, MLD, Modbus TCP, IEEE 1588 PTP
