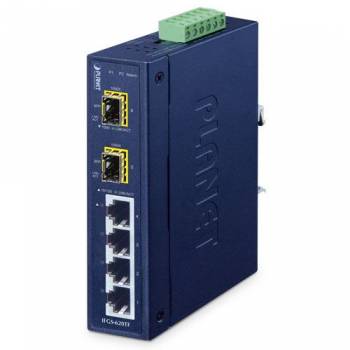

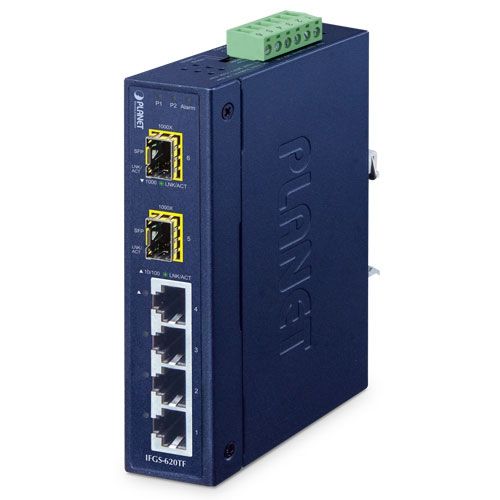

PLANET IFGS-620TF Industrial 4-Port Ring Ethernet Switch
|
115,95 EUR 115,95 EUR |
|
|
( 137,98 EUR incl. VAT ) ≈ £99.72 | ≈ $131.83 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 451125 |
|---|---|
| Mfg Part No: | IFGS-620TF |
| UPC/EAN: | 4711605288026 |
| Weight: | 0.549 kg |
Product information for PLANET IFGS-620TF:
Slim Industrial Switch for Practical and Reliable Networking
The PLANET IFGS-620TF is a slim unmanaged industrial Ethernet switch featuring four 10/100BASE-TX RJ45 ports and two 1000BASE-X SFP fiber slots. Designed with a rugged IP30 metal enclosure, it operates reliably in extreme temperatures (-40 to 75 °C) and supports a wide-range redundant power system (9–48 V DC or 24 V AC), making it perfect for installation in tight and harsh industrial environments.
This switch is optimized for IIoT applications with plug-and-play deployment and fast PROFINET traffic prioritization. Its One-Key Ring redundancy ensures ultra-fast network recovery in under 1 ms across 8 devices, significantly improving system uptime and reliability.
With two SFP uplinks, the IFGS-620TF supports fiber transmission up to 120 km, making it suitable for enterprise, ISP, and backbone infrastructures. It also incorporates energy-efficient Ethernet (IEEE 802.3az) to reduce power consumption during low activity periods.
Technical Specifications:
Physical Ports:

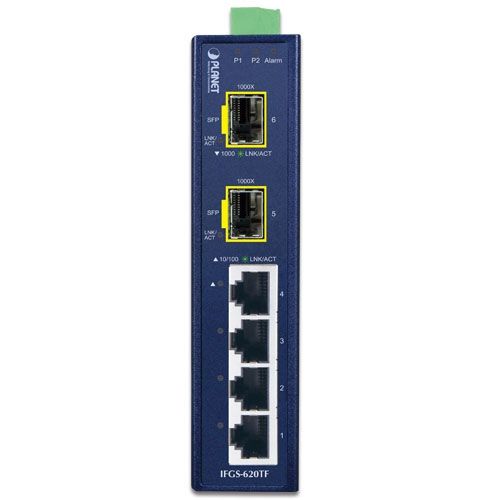

- 4 x 10/100BASE-TX RJ45 ports (Auto-MDI/MDI-X)
- 2 x 1000BASE-X SFP slots with auto detection
Ring Feature:
- One-Key Ring: Recovery time <1 ms with 8 devices
Switching Capabilities:
- Switch Fabric: 4.8 Gbps
- Throughput: 3.57 Mpps @ 64 bytes
- Architecture: Store-and-Forward
- MAC Table: 4K entries
- Jumbo Frame: 16K
- Flow Control: IEEE 802.3x & back pressure
Protocols & Features:
- IEEE 802.3, 802.3u, 802.3z, 802.3x
- PROFINET traffic pass-through with QoS
- IEEE 802.1p CoS (when Ring is off)
- IEEE 802.1Q VLAN transparency
- CSMA/CD Protocol
Power:

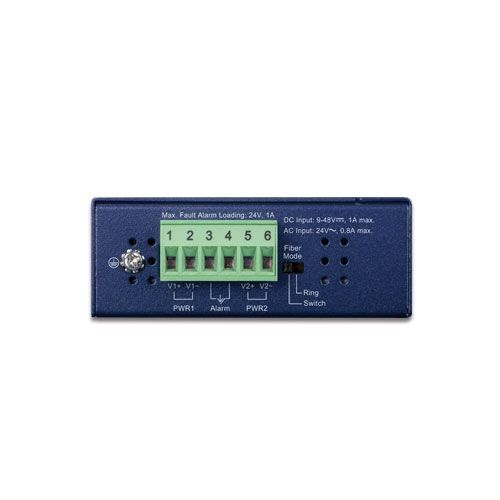

- Input Voltage: 9–48 V DC or 24 V AC
- Dual input with reverse polarity protection
- Power Consumption: 3.4 W / 11.6 BTU
Mechanical:
- Housing: IP30-rated metal
- Dimensions: 32 × 87.8 × 135 mm
- Weight: 430 g
- Mounting: DIN rail, wall or side wall
Environment:
- Operating Temperature: -40 to 75 °C
- Humidity: 5–95 % (non-condensing)
Protection & Safety:
- ESD: ±6 kV air/contact discharge
- Surge Immunity: ±6 kV
- Alarm Relay: 1A @ 24 V DC
LED Indicators:
- System: Green (Power 1/2), Red (Alarm)
- Port LEDs: Activity and link indicators per port
