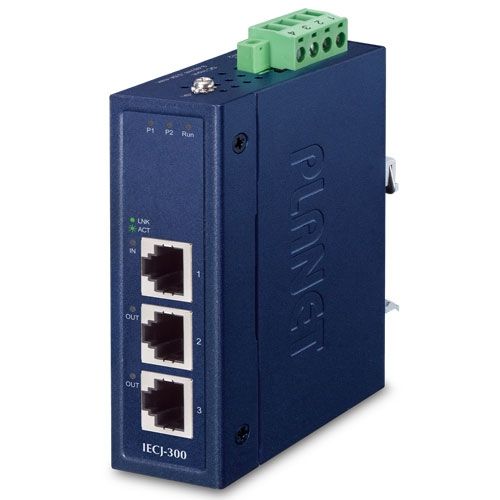

PLANET Industrial 3-Port EtherCat Junction IECJ-300
|
162,78 EUR |
|
|
( 193,71 EUR incl. VAT ) ≈ £141.13 | ≈ $189.48 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1196967 |
|---|---|
| Mfg Part No: | IECJ-300 |
| UPC/EAN: | 4711605287012 |
| Weight: | 0.12 kg |
Product information for Planet IECJ-300:
With support for EtherCAT Distributed Clocks, the IECJ-300 enables sub-microsecond (<1 μs) synchronization between modules. Its fanless design ensures silent operation and high reliability in space-restricted control cabinets or environments lacking active cooling.
Technical Specifications (EN):
Communication Interface:

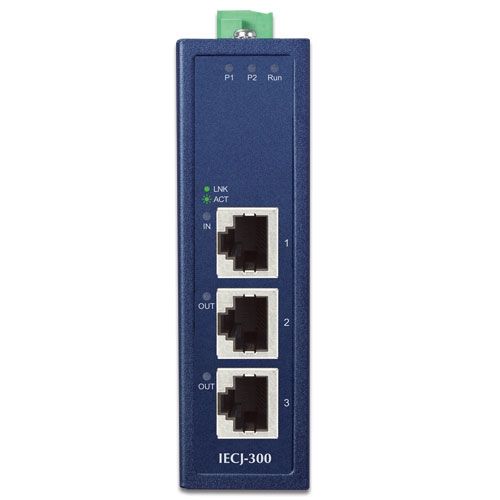

- 3 x 100BASE-TX RJ45 ports (1 input, 2 output)
- Max. distance between stations: 100 m
- Data medium: Shielded Ethernet cable (Cat5 or better)
- Protocol: EtherCAT
- Synchronization: EtherCAT Distributed Clock support (<1 μs precision)

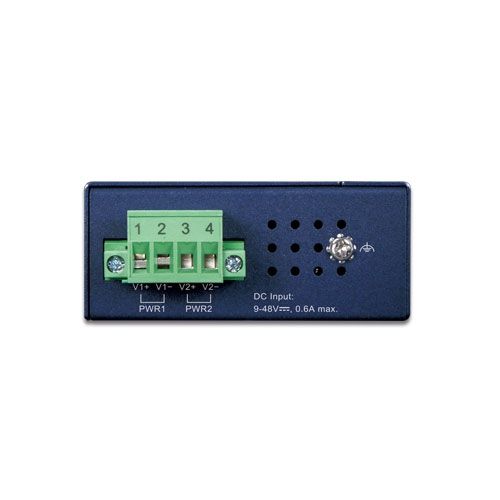

Power Supply:
- Input voltage: Dual 9–48V DC
- Redundant power inputs with reverse polarity protection
- Power consumption: Max. 1.44W
Mechanical:
- Enclosure: IP30-rated metal housing
- Dimensions: 30 x 70 x 104 mm
- Weight: 234 g
- Mounting options: DIN rail or wall mount
Environmental:
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5–95% (non-condensing)
Key Features:
- Verified by EtherCAT Conformance Test Tool
- LED indicators for port status
- Compact form factor for space-limited enclosures
- Ideal for factory automation and network expansion in EtherCAT environments
