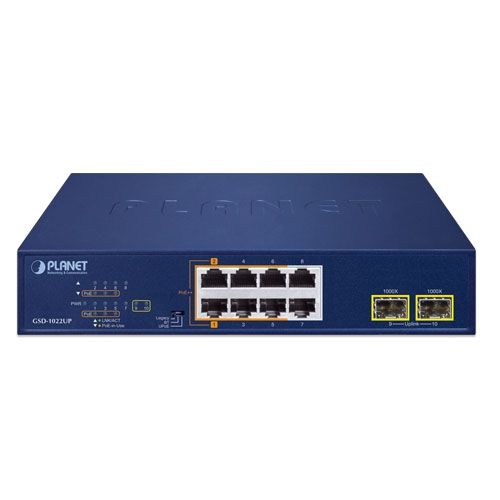

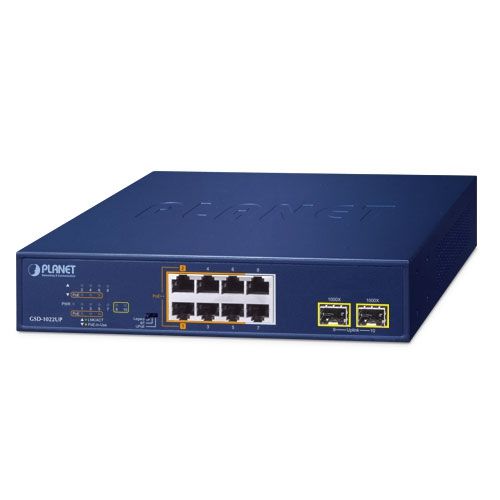

Planet 8-Port PoE+ Desktop Switch GSD-1022UP
|
126,04 EUR |
|
|
( 149,99 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 873602 |
|---|---|
| Mfg Part No: | GSD-1022UP |
| UPC/EAN: | 4711605287227 |
| Weight: | 1.84 kg |
Product information for Planet GSD-1022UP:
The PLANET GSD-1022UP is an unmanaged 10-port Gigabit switch designed for flexible, high-performance PoE applications. It includes two 802.3bt PoE++ ports (up to 95W each), four 802.3at PoE+ ports (up to 32W), two additional Gigabit RJ45 ports, and two 1000BASE-X SFP fiber uplink slots. With a total PoE budget of 180 watts and excellent switching throughput, the GSD-1022UP is ideal for IP surveillance, wireless APs, and VoIP networks in SOHO or small enterprise environments.
Physical Ports:
Technical Specifications:
Physical Ports:
- 2 x 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE++ injector function (Ports 1–2)
- 4 x 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ injector function (Ports 3–6)
- 2 x 10/100/1000BASE-T RJ45 standard ports (Ports 7–8)
- 2 x 1000BASE-X SFP uplink slots (Ports 9–10)
Power over Ethernet:
- IEEE 802.3af/at/bt compliant, 180W total power budget
- Port 1–2: up to 95W; Port 3–6: up to 32W
- PoE Modes via DIP switch:
- BT Mode: IEEE 802.3bt standard
- UPOE Mode: Cisco UPOE / PoH
- Legacy Mode: for non-standard PDs detection and protection
- End-span + Mid-span support
- Circuit protection against electrical interference
Switching Performance:
- Switch Fabric: 20Gbps
- Throughput: 13.39Mpps
- MAC Address Table: 4K entries
- Jumbo Frame Support: 9K bytes
- Store-and-Forward architecture
- Flow Control: IEEE 802.3x pause frames, back pressure
Flexible Extension via Fiber:
- 1000BASE-SX/LX fiber uplinks
- Supports multi-mode (up to 2km) and single-mode/WDM fiber (up to 120km)
- Suitable for uplinking NVR, monitoring systems, or server rooms
Hardware Design:
- Compact 9” metal chassis, 1U height
- Mounting: Desktop, Wall, Rack
- LED indicators: Power, PoE-in-use, Link/ACT
- 1 silent cooling fan for thermal management
- Supports IEEE 802.3az Energy Efficient Ethernet

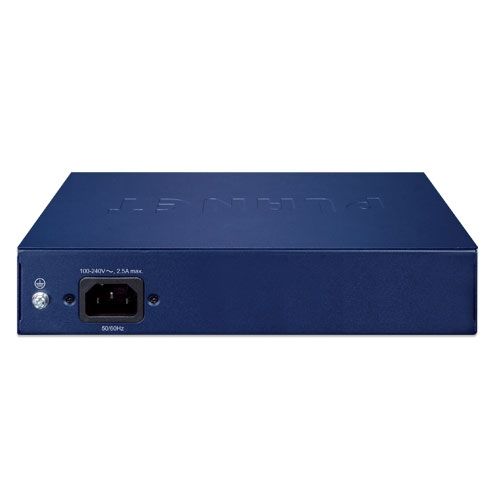

Power Requirements:
- Input: AC 100~240V, 50/60Hz, 2.5A
- Max power consumption: 200W (682.4 BTU)
Environmental Specifications:
- Operating Temp: 0–50°C
- Operating Humidity: 5–95% (non-condensing)
- Storage Temp: -10–70°C
- ESD Protection: ±6KV Contact / ±8KV Air
- Surge Protection: ±2KV differential / ±4KV common
Certifications:
- FCC Class A, CE
- Standards: IEEE 802.3af/at/bt, 802.3x, 802.3az, 802.3ab
