Planet 48-Port Managed Switch GS-6311-48T6X

The PLANET GS-6311-48T6X is a next-generation Layer 3 managed Gigabit switch designed for enterprise backbones and data centers. It features 48 10/100/1000BASE-T copper ports and 6 dual-speed 1G/10G SFP+ uplink ports, supporting a total switching fabric of 216Gbps. With extensive Layer 2/3/4 security, multicast support, VLAN routing, and traffic management, it is an ideal choice for secure, scalable and high-availability networking environments.

Technical Specifications:

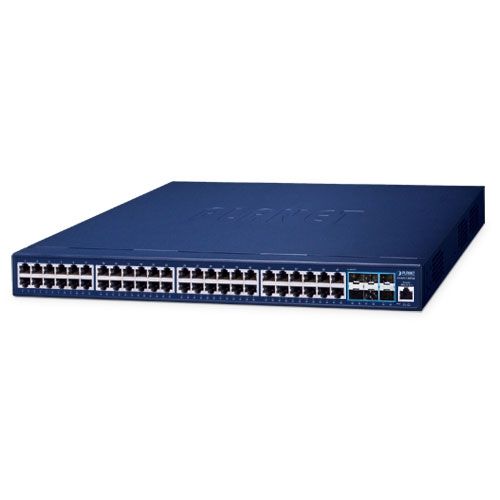

Physical Ports:

• 48 x 10/100/1000BASE-T RJ45 ports
• 6 x 10GBASE-SR/LR SFP+ (1G compatible)
• 1 x RJ45-to-RS232 console port

Switching:

• Architecture: Store-and-Forward
• Switching Fabric: 216Gbps non-blocking
• Throughput: 160.7Mpps
• Jumbo Frame: 12KB
• MAC Table: 32K entries
• Shared Buffer: 16MB

Layer 3 Routing:

• Protocols: Static, RIPv1/v2, OSPFv2
• VLAN Interface Routing Supported
• Additional: ARP, ARP Proxy, IGMP Proxy, ICMPv6, ND, DNSv6

Multicast:

• IGMP Snooping v1/v2/v3 (IPv4)
• MLD Snooping v1/v2 (IPv6)
• MVR (Multicast VLAN Registration)
• IGMP Querier supported

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q (802.1ad), MAC, protocol, IP subnet, GVRP
• Link Aggregation: 64 groups with up to 8 ports per group, LACP/static
• Spanning Tree: STP, RSTP, MSTP with BPDU and root guard
• Loop detection, port mirroring, ERPS ring support (ITU-T G.8032)

Quality of Service (QoS):

• 8 queues per port
• Classification: 802.1p, CoS/ToS, DSCP, port-based
• Scheduling: Strict Priority, Weighted Round Robin (WRR)

Security:

• Authentication: IEEE 802.1X, MAC/web-based, RADIUS, TACACS+
• ACL: IP/MAC-based, time-based (up to 2K entries)
• Security: DHCP Snooping, DAI, IP Source Guard, DoS prevention, traffic suppression

Management:

• IPv4/IPv6 Dual Stack
• Interfaces: Web GUI, CLI (Telnet/Console), SNMP v1/v2c/v3
• Secure Access: SSHv2, TLSv1.2
• Monitoring: SNMP Traps, Syslog, RMON (1,2,3,9), sFlow, LLDP, Smart Discovery
• Firmware/config via HTTP/TFTP
• Role-based access control, diagnostics (DDM, ping, traceroute)

Mechanical & Environmental:

• Dimensions: 440 x 260 x 44 mm
• Weight: 3.676 kg
• Power Consumption: Max 53.7W

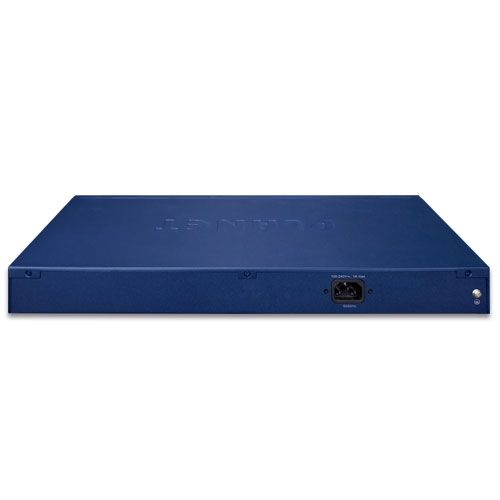

• Power Supply: AC 100–240V, 50/60Hz
• Fan: 1
• Operating Temp: 0 ~ 50 °C
• Humidity: 5 ~ 90% (non-condensing)

Certifications:

• FCC Part 15 Class A, CE
• Standards: IEEE 802.3/802.3u/802.3z/802.3ab/802.3ae/802.1Q/802.1p/802.1D/802.1w/802.1s/802.1X/802.3ad
