PLANET 10/100Base-TX to100Base-FX PoE (Single mode, 15km)

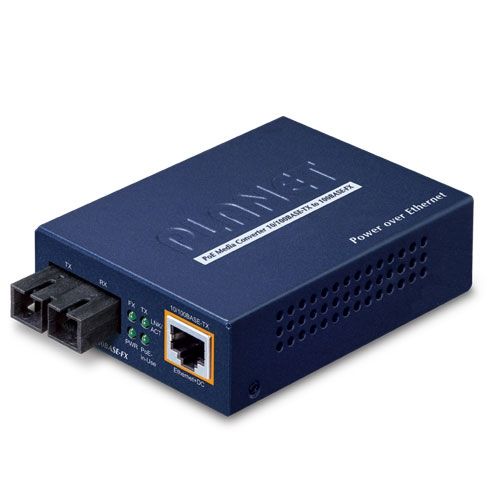

PLANET FTP-80x Series – Fiber Media Converter and PoE Injector

The FTP-80x series by PLANET is a dual-function device designed to simplify network expansion in remote areas. Acting as both a media converter (fiber to copper) and an IEEE 802.3af-compliant Power over Ethernet (PoE) injector, it eliminates the need for separate devices or additional AC power infrastructure.

Dual Networking Capabilities:

• Media Conversion: Converts 100Base-FX to 10/100Base-TX
• PoE Injection: Supplies up to 15.4W over standard Ethernet cabling

Perfect for Remote Installations:

Ideal for locations like campuses, public spaces, and outdoor surveillance setups, FTP-80x allows power and data to be transmitted over a single Ethernet cable, reducing costs and streamlining deployment.

Extended Range via Fiber Optics:

• FTP-802: Multi-mode fiber up to 2 km
• FTP-802S15: Single-mode fiber up to 15 km
Both models maintain 100Mbps throughput over their respective ranges.


Link Fault Pass-through (LFP):

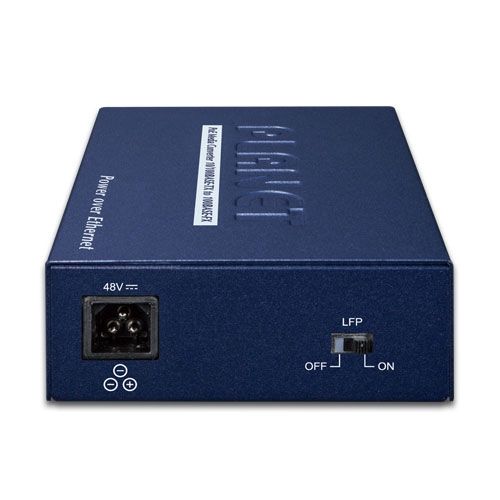

This diagnostic feature instantly alerts users to link failures by disabling the alternate port in the event of a disconnection—configurable via DIP switch.


PoE Simplifies Power Delivery:

The integrated PoE injector supplies 48V DC to IEEE 802.3af-compliant powered devices (PDs), such as IP cameras or access points, using pins 1/2(+) and 3/6(−) over a Cat. 5/5e cable.


Technical Specifications (English):


Interface:

• Copper: 1 x 10/100BASE-TX RJ45 (Auto MDI/MDI-X, PoE injector)
• Fiber:
• FTP-802: SC, multi-mode (up to 2 km)
• FTP-802S15: SC, single-mode (up to 15 km)

PoE Output:

• Standard: IEEE 802.3af
• Voltage: 48V DC
• Max. Power: 15.4 watts
• Power Pins: 1/2 (+), 3/6 (−)

Switching:

• Architecture: Store-and-Forward
• Flow Control: IEEE 802.3x full duplex / back pressure half duplex
• MAC Address Table: 1K entries

Optical Parameters:

• Wavelength: 1310 nm
• Launch Power:
• FTP-802: -14 to -19 dBm
• FTP-802S15: -7 to -20 dBm
• Receive Sensitivity:
• FTP-802: -34.5 dBm
• FTP-802S15: -28 dBm
• Max Input Power:
• FTP-802: -14 dBm
• FTP-802S15: -8 dBm

LED Indicators:

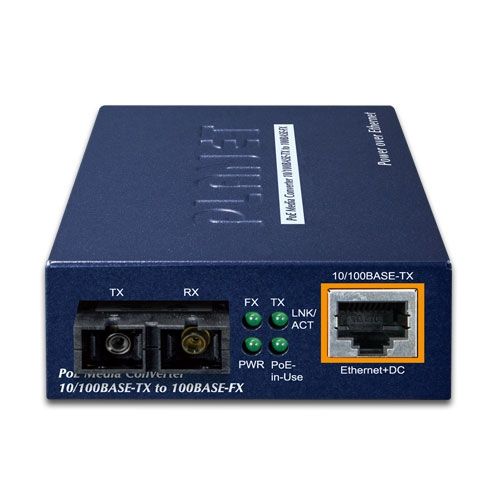

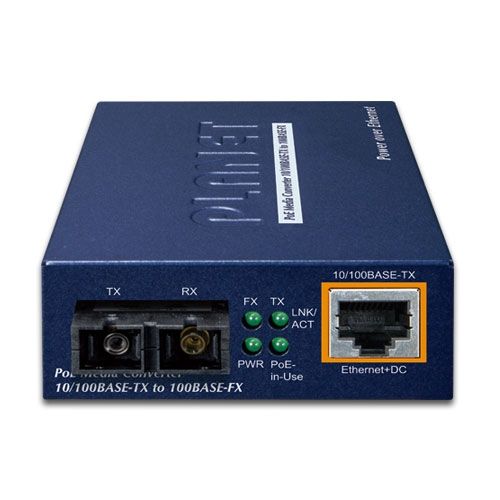

• Power, Status, FX Link, TX Link, PoE Active

Physical & Electrical:

• Dimensions: 94 × 70.3 × 26.2 mm
• Weight: 0.2 kg
• Power: 48V DC, 0.4A external adapter

Environmental:

• Operating Temp: 0–50°C
• Humidity: 5–90% (non-condensing)

Compliance:

• Standards: IEEE 802.3 / 802.3u / 802.3x / 802.3af
• Regulatory: FCC Part 15 Class A, CE

Cabling:

• TP: Cat 5/5e UTP
• Fiber:
• Multi-mode: 50/125μm or 62.5/125μm
• Single-mode: 8.3/125, 8.7/125, 9/125μm
