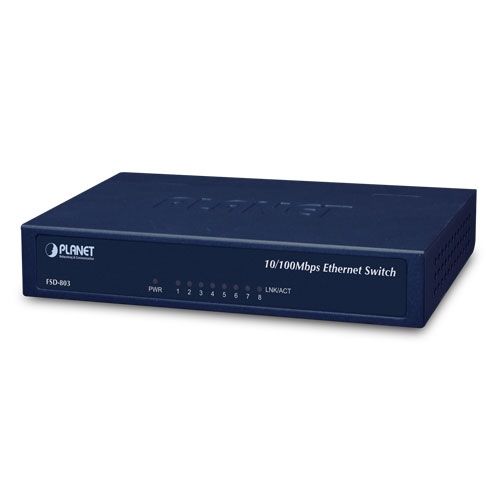

PLANET 8-Port 10/100Mbps Fast Ethernet Switch, Metal
|
29,25 EUR |
|
|
( 34,81 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226734 |
|---|---|
| Mfg Part No: | FSD-803 |
| UPC/EAN: | 4711213680311 |
| Weight: | 0.12 kg |
Product information for Planet FSD-803:
The PLANET FSD-803 is a compact, high-efficiency 8-port Fast Ethernet switch designed for home and small office networks. Featuring a sturdy metal casing and energy-saving design, it supports up to 50 users and is ideal for bandwidth-sharing and reliable LAN expansion.
Reliable Switching Performance:
With Store-and-Forward architecture, the FSD-803 minimizes latency and ensures data integrity. Its 1.6Gbps switching capacity, 448Kbit packet buffer, and support for up to 1,000 MAC addresses ensure stable, wire-speed data transmission with minimal packet loss — perfect for streaming, backups, and real-time data.Energy-Saving with User-Friendly Controls:
A dedicated power switch on the rear panel helps reduce energy waste when the switch is idle. Auto MDI/MDI-X support simplifies cabling and installation, while plug-and-play functionality ensures quick setup with no configuration required.Compact Metal Design for Flexible Placement:
With its rugged metal housing and desktop/wall-mount form factor, the FSD-803 fits neatly into tight or discrete environments. LED indicators provide clear port activity status at a glance, making network troubleshooting effortless.Technical Specifications (English):
Ports:

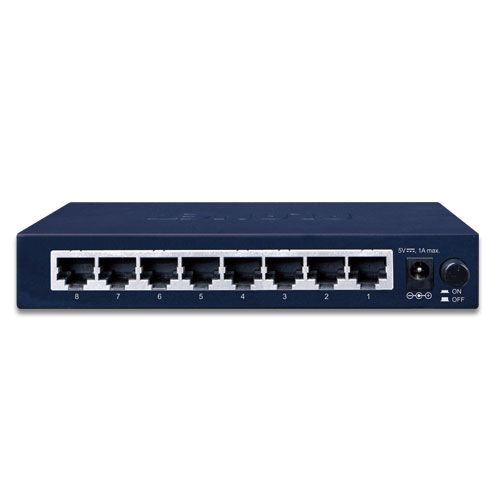

- 8 x 10/100BASE-TX RJ45 (Auto MDI/MDI-X)
Switching Features:
- Switching Capacity: 1.6 Gbps
- Throughput: 1.19 Mpps @64 bytes
- Store-and-Forward architecture
- 1K MAC address table
- 448Kbit buffer memory
- Max packet size: 1536 bytes
- Flow Control: IEEE 802.3x (full duplex), Backpressure (half duplex)
Hardware:
- Metal enclosure, desktop/wall-mountable
- Dimensions: 155 x 86 x 26 mm
- Weight: 316 g
- Power: 5V DC, 1A (external adapter)
- Power Consumption: max. 2.6W (8.8 BTU)
- Power ON/OFF switch included

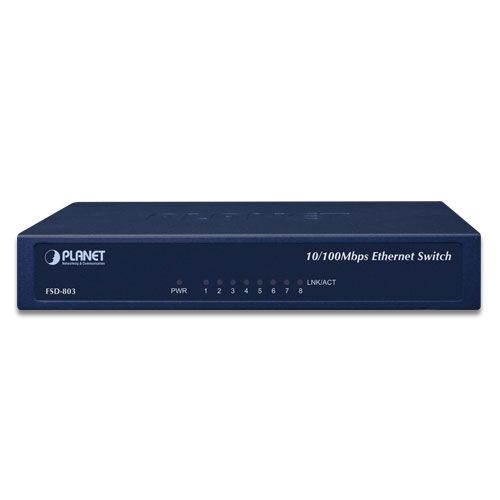

- LED indicators for Power and Link/Act per port
Standards Compliance:
- IEEE 802.3 (Ethernet)
- IEEE 802.3u (Fast Ethernet)
- IEEE 802.3x (Flow Control)
- IEEE 802.3az (Energy Efficient Ethernet)
- CE, FCC Class B compliant
Environmental Conditions:
- Operating Temperature: 0 ~ 50°C
- Storage Temperature: -10 ~ 70°C
- Humidity: 5–95% RH (non-condensing)
