PLANET 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP

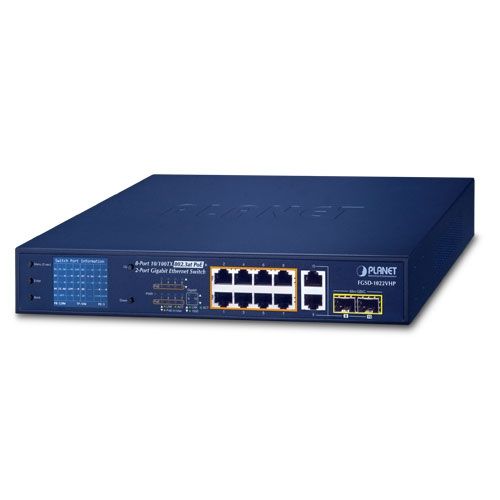

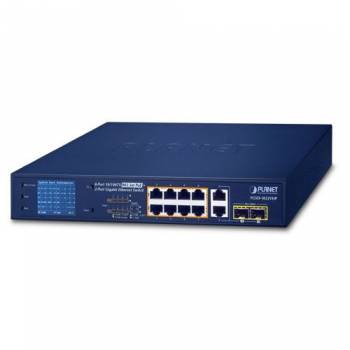

PLANET FGSD-1022VHP – Smart 10-Port PoE+ Fast Ethernet Switch with LCD Display

The PLANET FGSD-1022VHP is a powerful “Plug and Watch” solution designed for IP surveillance, wireless deployment, and small business networks. It features eight PoE+ Fast Ethernet ports and two Gigabit combo uplinks with an intuitive 2-inch LCD color display, offering real-time monitoring and efficient configuration without requiring a PC or additional software.

With a total power budget of 120 watts and multiple operational modes including “Extend” mode for long-distance PoE, the FGSD-1022VHP provides flexible, cost-saving network deployment ideal for security, hospitality, and enterprise applications.

Key Features:

• 8 x PoE+ ports (30W per port, 120W total budget)
• 2 Gigabit TP/SFP combo uplink interfaces
• Smart 2-inch color LCD screen with PoE and port status display
• Extend Mode: 250m PoE distance at 10Mbps and 20W
• Energy-efficient (EEE), ESD and surge protection
• PoE management: power scheduling, alive check, per-port control

Technical Details:

Physical Ports:

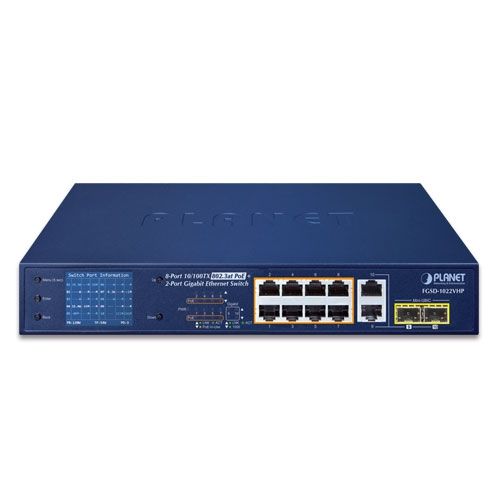

• 8 x 10/100BASE-TX RJ45 PoE+ ports
• 2 x 10/100/1000BASE-T & 2 x 1000BASE-X SFP (Combo)
• 1 x LCD screen (40.6 x 30.5 mm)
• Buttons: Menu, Enter, Back, Up, Down

Switching Specs:

• Switch Fabric: 5.6Gbps
• Forwarding Rate: 4.17Mpps
• Architecture: Store-and-Forward
• MAC Address Table: 16K
• Jumbo Frame Support: 16K bytes
• Flow Control: IEEE 802.3x full-duplex, back pressure for half-duplex

PoE Capabilities:

• IEEE 802.3af/at compliant (PoE / PoE+)
• Per port power: 54V DC, up to 30W
• Total power budget: 120W
• Extended PoE range up to 250m @ 20W (10Mbps)
• PoE Features: per-port control, priority, PD alive check, budget management

LCD Features:

• Display for total PoE usage, port-level power/status, operational modes
• Visual alerts for over-voltage, over-temp, and low power
• Modes: Standard, VLAN, Extend (with port isolation)

Housing & Environment:

• 12” desktop metal case, 1U rack-mount height
• Fan-cooled
• ESD Protection: ±4KV (contact), ±6KV (air)
• Surge Immunity: ±4KV

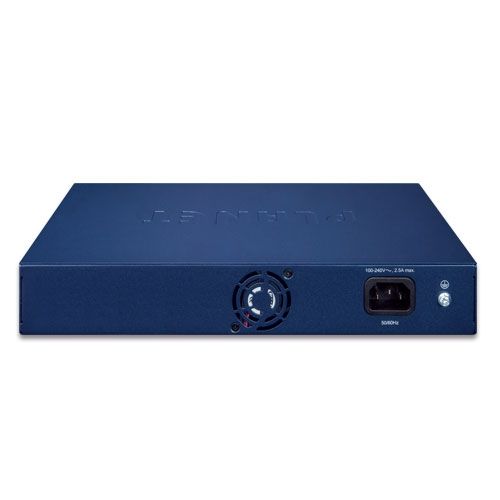

• Power Input: 100–240V AC, 2.5A max.
• Power Consumption: max. 130W
• Dimensions: 180 x 280 x 44 mm
• Weight: 1.8 kg

Environmental Conditions:

• Operating: 0–50°C, 5–90% RH (non-condensing)
• Storage: -10–70°C, 5–90% RH
