PLANET Lightning Arrest Box
|
30,24 EUR 30,29 EUR |
|
|
( 35,99 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226105 |
|---|---|
| Mfg Part No: | ELA-100 |
| UPC/EAN: | 4711605282192 |
| Weight: | 0.17 kg |
Product information for Planet ELA-100:

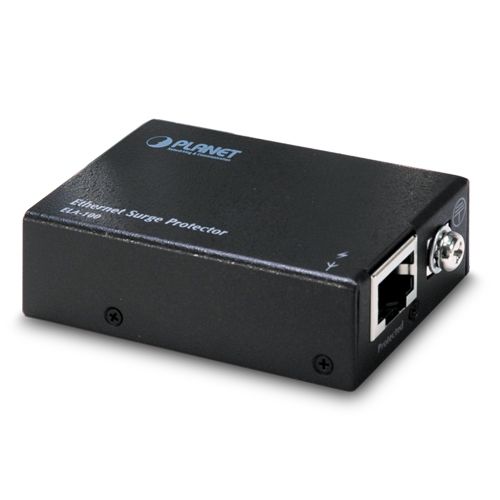

PLANET ELA-100 – Ethernet Lightning Arrest Box with PoE++ Passthrough and 20KA Surge Protection
The PLANET ELA-100 Ethernet Lightning Arrest Box is designed to protect Ethernet-connected equipment from potentially damaging lightning-induced surges. Built for the demands of modern Gigabit and PoE networks, it offers up to 20KA surge protection and full passthrough for IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) power.
Equipped with two passive 10/100/1000BASE-T ports and a dedicated ground terminal, the ELA-100 installs between two Ethernet devices and is ideal for outdoor deployments with shelter—perfect for safeguarding PoE cameras, wireless APs, and switches.
Ethernet Interface:
The PLANET ELA-100 Ethernet Lightning Arrest Box is designed to protect Ethernet-connected equipment from potentially damaging lightning-induced surges. Built for the demands of modern Gigabit and PoE networks, it offers up to 20KA surge protection and full passthrough for IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) power.
Equipped with two passive 10/100/1000BASE-T ports and a dedicated ground terminal, the ELA-100 installs between two Ethernet devices and is ideal for outdoor deployments with shelter—perfect for safeguarding PoE cameras, wireless APs, and switches.
Key Features:
- 20,000A lightning surge protection (8/20μs waveform)
- Two passive 10/100/1000BASE-T Ethernet ports
- IEEE 802.3at PoE+ and 802.3bt PoE++ passthrough
- Grounding point for earth connection
- Compact, lightweight and easy to deploy
Installation Tip:
For full protection, the ELA-100 must be properly grounded. Connect your Ethernet device to the protected port and the incoming line to the unprotected port.Technical Specifications:
Ethernet Interface:
- 2 x Passive 10/100/1000BASE-T ports
- PoE passthrough: IEEE 802.3at PoE+, IEEE 802.3bt PoE++
Surge Protection:
- DC Spark-over Voltage: 230V ±20%
- Nominal Discharge Current (8/20µs): 20KA
- Arc Voltage at 1A: ~35V
- Glow-to-Arc Transition Current: ~1A
- Glow Voltage: ~200V
Physical:
- Dimensions (W x D x H): 65 x 42 x 20 mm
- Weight: 80 g
- Ground Point: 1
Environmental:
- Operating Temperature: 0–60°C
- Operating/Storage Humidity: 5–90% (non-condensing)
- Storage Temperature: -20–70°C
