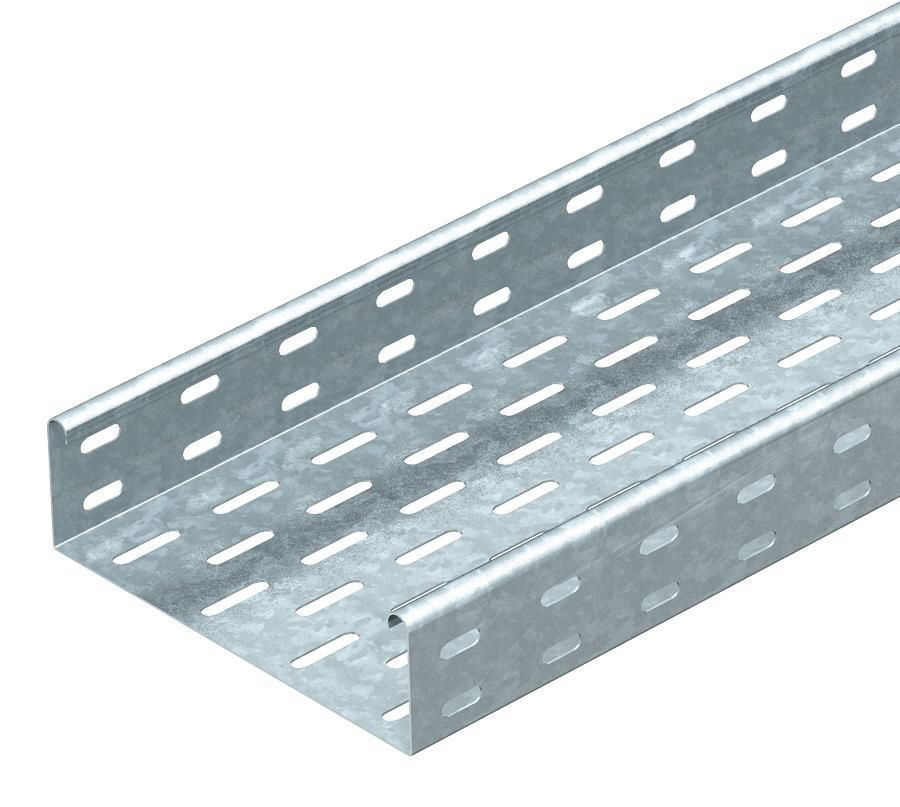

OBO Bettermann 6055206 MKS 620 FS cable duct MKS perforated 60x200x3000 mm FS
|
165,73 EUR 172,71 EUR |
|||||||||||
|
( 197,22 EUR incl. VAT ) ≈ £138.05 | ≈ $181.81 plus delivery charges: 100,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 3 meters | |||||||||||
| Lieske Part No.: | 226361 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 6055206 | ||||||||||
| UPC/EAN: | 4012196059713 | ||||||||||
| Weight: | 7.183 kg | ||||||||||
| Type: | MKS 620 FS | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for OBO Bettermann 6055206:
Applications
The MKS 620 FS is used in technical facilities, industrial installations, office buildings, and other buildings where structured and secure cable routing is required. The system is particularly suitable for routing power and low-voltage lines, data cables, and for integrating control systems in buildings. The perforated construction supports heat dissipation and reduces the risk of overheating in dense cable installations.
Functions and Equipment in Detail
The cable tray is supplied with a connector set, enabling secure and quick connection of multiple tray sections. The connection is made using special longitudinal connectors, ensuring a stable and crack-free joint. The perforated surface facilitates the installation of mounting elements and allows flexible adaptation to different installation situations. The system is modular, making it easy to adapt to specific requirements.
Technology Explained Simply
The MKS 620 FS cable support system consists of galvanized steel sheet with a thickness of 1.0 mm, providing high mechanical stability and durability. The side height of 60 mm allows for moderate cable capacity, while the width of 200 mm provides sufficient space for multiple lines. The perforated construction ensures optimal air circulation, reducing thermal stress on the cables. The galvanization protects the material from corrosion and extends the system’s service life.
Compatibility and Accessories
The system is compatible with a wide range of accessories, enabling flexible adaptation to different installation scenarios. These include bends in 45° and 90°, adjustable bends, T-pieces, branch connectors, lids with rotating latches, and longitudinal connectors. These components allow the creation of complex cable routes, including curves, branches, and transitions. The use of partition strips and joint strips supports structured separation of cable groups and secure connection of tray sections.
Installation and Mounting
Mounting is typically done on walls, ceilings, or beams using mounting elements inserted into the perforated surface. Connection of multiple tray sections is achieved using the included connector set, ensuring a stable and crack-free joint. The perforated construction simplifies installation and allows flexible adaptation to specific mounting conditions. Installation does not require special tools, although a screwdriver or similar tool is necessary.
Operational Advantages
The MKS 620 FS offers high mechanical stability and long service life due to its galvanized surface. The perforated construction ensures optimal ventilation and reduces thermal stress on the cables. The modular system allows flexible adaptation to different installation scenarios, making planning and installation more efficient. The use of accessories such as bends and T-pieces enables the creation of complex routes without requiring additional tools or special skills.
The item price shown refers to 3 meters OBO Bettermann 6055206
| General | |
| Side height | 60 mm |
| Sheet metal thickness | 1,0 mm |
| Surface texture | Perforated |
| Scope of delivery | cable tray with connector set |
Questions & answers
What is the delivery time of OBO Bettermann 6055206 MKS 620 FS cable duct MKS perforated 60x200x3000 mm FS ?
The article OBO Bettermann 6055206 MKS 620 FS cable duct MKS perforated 60x200x3000 mm FS is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of OBO Bettermann 6055206 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you OBO Bettermann 6055206 MKS 620 FS cable duct MKS perforated 60x200x3000 mm FS always at the best possible price. We can give you a discount of 2% on OBO Bettermann 6055206 MKS 620 FS cable duct MKS perforated 60x200x3000 mm FS if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 meters of OBO Bettermann 6055206 MKS 620 FS cable duct MKS perforated 60x200x3000 mm FS we can offer you a price of 148,33 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
OBO Bettermann 6055206 MKS 620 FS cable duct MKS perforated 60x200x3000 mm FS is offered by us in a sales unit of 3 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
