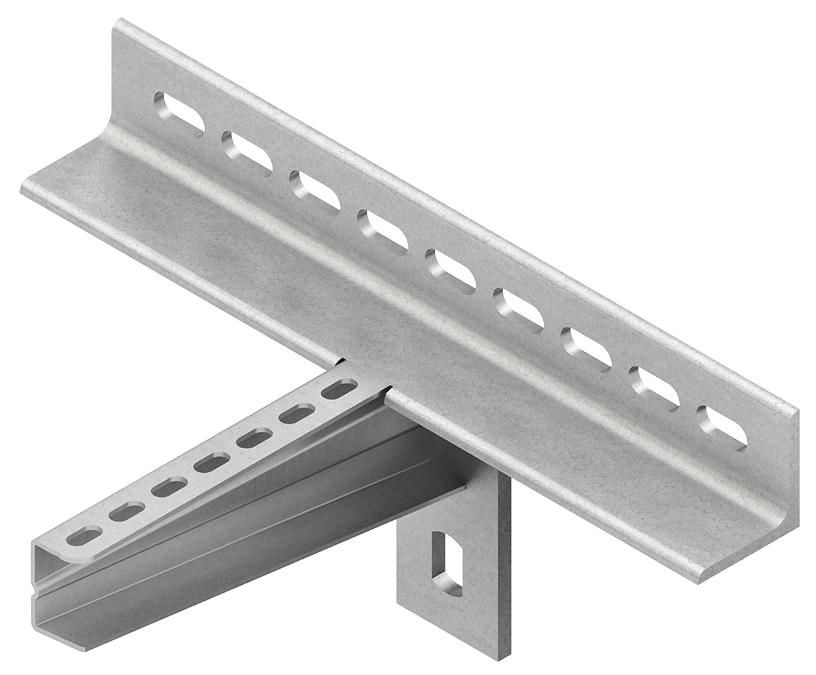

Niedax KTTSS500 clamp arm very hard , 256x540mm galvanized

Clamp bracket, very heavy-duty design, for wall mounting and for clamping on bare steel beams with a flange width of = 100 mm to = 320 mm, please order required clamping accessories on T-beams, such as 2 x SKM 12X...(10.9), 2 x UGM 12 and 2 x HSKS..., separately. Please order required fastening accessories for wide-span cable trays/ladders separately. The clamp fastening should be symmetrical and the screws as close to the flange as possible. The load-bearing capacity information only applies in conjunction with HSKS..., UGM 12 and M 12 screws, strength class 10.9, which must be tightened with a pre-tensioning torque of 123 Nm. Especially for connections that have to transfer vertical loads via friction, it is essential to pay attention to the screw tightening torque and to check it with the torque wrench! The load values specified only apply to steel-to-steel connections (e.g. profile clamps). After half the load has been applied, the tightening torque of the screws must be checked again. Danger of slipping! If steel supports are coated with fire protection paint, this must not be removed without consultation and written approval from the client or construction management. In any case, the introduction of loads into the structure must be coordinated with the construction planning or construction management. Dimensions (approx. dimensions) Support height H: 181 mm Angle width B: 400 mm Support length L: 530 mm Load-bearing capacity F at L/2: 8.89 kN tested in the system, applies to beam flange widths = 220 mm and = 300 mm. Load-bearing capacity F2 at L/2: 10 kN tested in the system, applies to beam flange widths = 220 mm Boom material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461 Beam flange thickness in mm: [customer information required]
Type: KTTSS 500
