KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel.

This image may differ from the desired article.

-67% 90,29 EUR 270,86 EUR

( 107,45 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

620235

Mfg Part No:

KKL110.300

UPC/EAN:

4013339952366

Weight:

0.12 kg

Graduated prices net

From pieces	Price per meters
6	86,23 EUR
12	82,16 EUR
24	78,10 EUR
36	74,04 EUR

Further Cable support systems, cable trays and accessories from Niedax Further products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax KKL110.300:

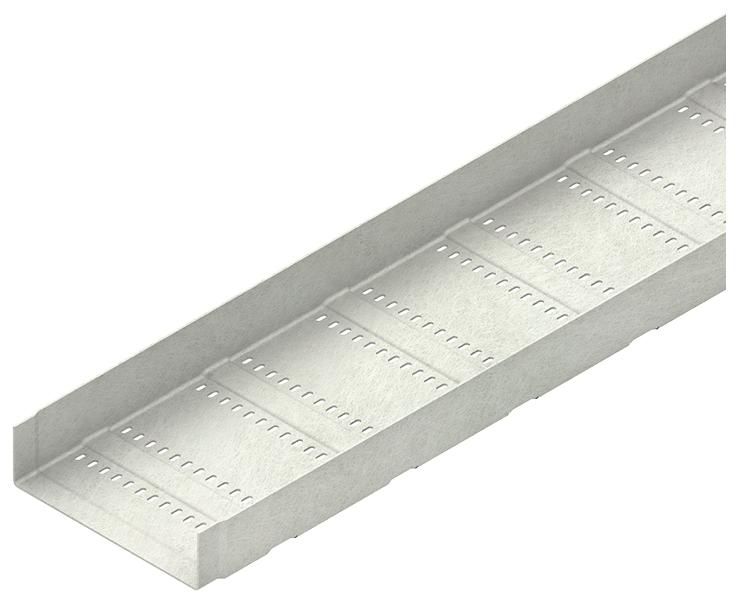

GRP cable tray, pressed, with unperforated side rails and molded connector, with transverse reinforcements (5 mm) over the entire width of the cable tray and eleven-row fastening holes in the base, mechanical strength in accordance with IEC 61537, please order appropriate fastening accessories separately, halogen-free. Due to the transverse reinforcements, the cable tray is also approved for use with high-frequency cables in accordance with UTE C15-900 (application class D, frequency 16 MHz). An expansion distance of 8 mm must be taken into account. Due to the expansion of the material, the following must be observed during assembly: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W : 110 x 300 mm Material thickness t : 4 mm Bottom bead shape : 60 x 5 mm Bottom bead shape Grid dimension : 250 mm Bottom perforation : 9 x 20 mm Row spacing : 25 mm Bottom hole spacing Grid dimension : 250 mm Load capacity F at a support spacing of 1.5 m : 1.2 kN/m Delivery length : 3000 mm Usable cross-section : 28356 mm² Material : UP-GF (glass fiber reinforced polyester) Color : pebble gray RAL : 7032 (similar)

Please note...

This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.

Questions & answers

What is the delivery time of KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel.?

The article KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel. is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Niedax KKL110.300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel. always at the best possible price. We can give you a discount of 2% on KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel. if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 meters of KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel. we can offer you a price of 86,23 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel. via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

1x	Niedax 4013339952366 - KKL 110 300 KKL110 300 Kabelr 110x300x3000mmangeformtem verb Gel KKL 110,300 Niedax KKL110.300 Kabelr, 110x300x3000mmangeformtem verb., Gel.	90,29 EUR
