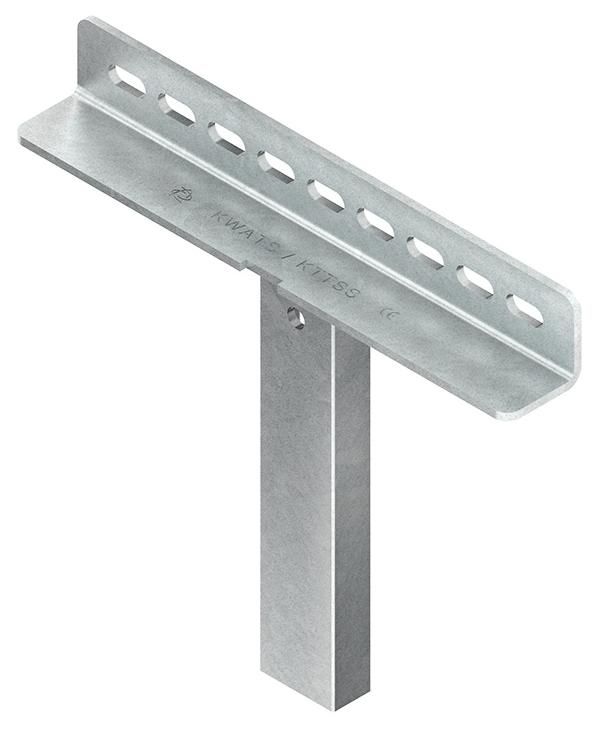

Niedax KKATS400F KKATS 400 F Terminal Adapter difficult, hot-dip galvanized DIN EN ISO 1461, incl. Zub

This image may differ from the desired article.

204,14 EUR

( 242,93 EUR incl. VAT )

plus delivery charges

Delivery time on request

Printing view Bookmark Wholesale Inquiry Suggest price

Lieske Part No.:

185029

Mfg Part No:

KKATS400F

UPC/EAN:

4013339081752

Weight:

3.78 kg

Graduated prices net

From pieces	Price per pieces
5	191,89 EUR
10	179,64 EUR
15	167,39 EUR
20	155,15 EUR

Further Cable support systems, cable trays and accessories from Niedax Further products in category Cable support systems, cable trays and accessories All products of Niedax

Product information for Niedax KKATS400F:

Clamp adapter, for wall mounting and for clamping on bare steel beams with a flange width of = 100 mm to = 320 mm, including fastening accessories for mounting the boom on the clamp adapter, required clamping accessories on T-beams, such as 2 x SKM 12x...(10.9), 2 x UGM 12 and 2 x HSKS..., please order separately. In general, the booms must be attached to the adapter first! The clamp fastening should be symmetrical and the screws as close to the flange as possible. The load-bearing capacity specifications of the booms must be observed and only apply in conjunction with HSKS..., UGM 12 and M 12 screws, strength class 10.9, which must be tightened with a preload torque of 123 Nm. Especially for connections that have to transfer vertical loads via friction, it is essential to pay attention to the screw tightening torque and to check it with the torque wrench! The load values specified only ever apply to steel-to-steel connections (e.g. profile clamps). After half the load has been applied, the tightening torque of the screws must be checked again. Danger of slipping! If steel supports have a fire protection coating, this must not be removed without consultation and written approval from the client or the construction management. In any case, the introduction of the loads into the structure must be coordinated with the construction planning or construction management. for hanging support and wall brackets: KTA..., KTAS... Dimensions (approx. dimensions) H x W: 360 x 400 mm Material: Steel, hot-dip galvanized in accordance with DIN EN ISO 1461 Flange thickness of the support in mm: [customer information required]
Type: KKATS 400 F
