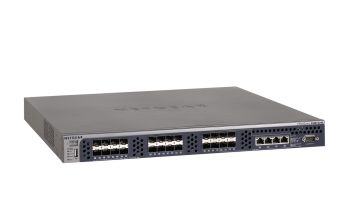

NETGEAR M7300 24-Port 10 GE Stackable Managed L2+ Switch
|
5.458,23 EUR 5.458,23 EUR |
|
|
( 6.495,29 EUR incl. VAT ) ≈ £4,552.16 | ≈ $6,096.84 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 573344 |
| Mfg Part No: | XSM7224S-100EUS |
| UPC/EAN: | 0606449073690 |
| Weight: | 9.148 kg |
| Certificates | |
| Certification | CE CSA FCC VCCI UL |
| Data transmission | |
| Supported data transfer rates | 100/1000/10000Mbps |
| Throughput | 357 Mpps |
| MAC address table | 32000 entries |
| Number of trunks | 64 |
| Maximum data transfer rate | 10 Gbit/s |
| Packet buffer memory | 16 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Silver |
| LED indicators | Fan fail, LAN |
| Number of fans | 4 fan(s) |
| Rack mounting | |
| Stackable | |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| MIB support | Y |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10GBASE-T |
| Number of VLANs | 1024 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| IP routing | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Spanning tree protocol | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 666.42 BTU/h |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Other features | |
| Management platform | CLI/GUI |
| Latency | 4.1μs/1.59μs |
| Dimensions (WxDxH) | 440 x 441 x 43 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Weight (imperial) | 6.3 kg (13.9 lbs) |
| Input frequency | 50/60 Hz |
| Dimensions (W x D x H) (imperial) | 439.4 x 431.8 x 43.2 mm (17.3 x 17 x 1.7") |
| Power LED | |
| Packaging content | |
| Cables included | Serial |
| Performance | |
| Processor model | Cavium CN5230-750 |
| Processor frequency | 750 MHz |
| Memory type | DDR2-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 44 dB |
| Mean time between failures (MTBF) | 180178 h |
| Built-in processor | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Console port | RS-232 |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 195.2 W |
| Protocols | |
| Management protocols | SNMP, LLDP, LLDP-ME, TFTP, SFTP, HTTP, SCP |
| Supported network protocols | TFTP, SFTP, HTTP, SCP, IPv4/IPv6, TCP/UDP |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Security algorithms | SSH, SSL/TLS |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering | |
| SSH/SSL support | |
| Weight & dimensions | |
| Weight | 6.3 kg |
Questions & answers
What is the delivery time of NETGEAR M7300 24-Port 10 GE Stackable Managed L2+ Switch?
The article NETGEAR M7300 24-Port 10 GE Stackable Managed L2+ Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Netgear XSM7224S-100EUS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you NETGEAR M7300 24-Port 10 GE Stackable Managed L2+ Switch always at the best possible price. We can give you a discount of 2% on NETGEAR M7300 24-Port 10 GE Stackable Managed L2+ Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
