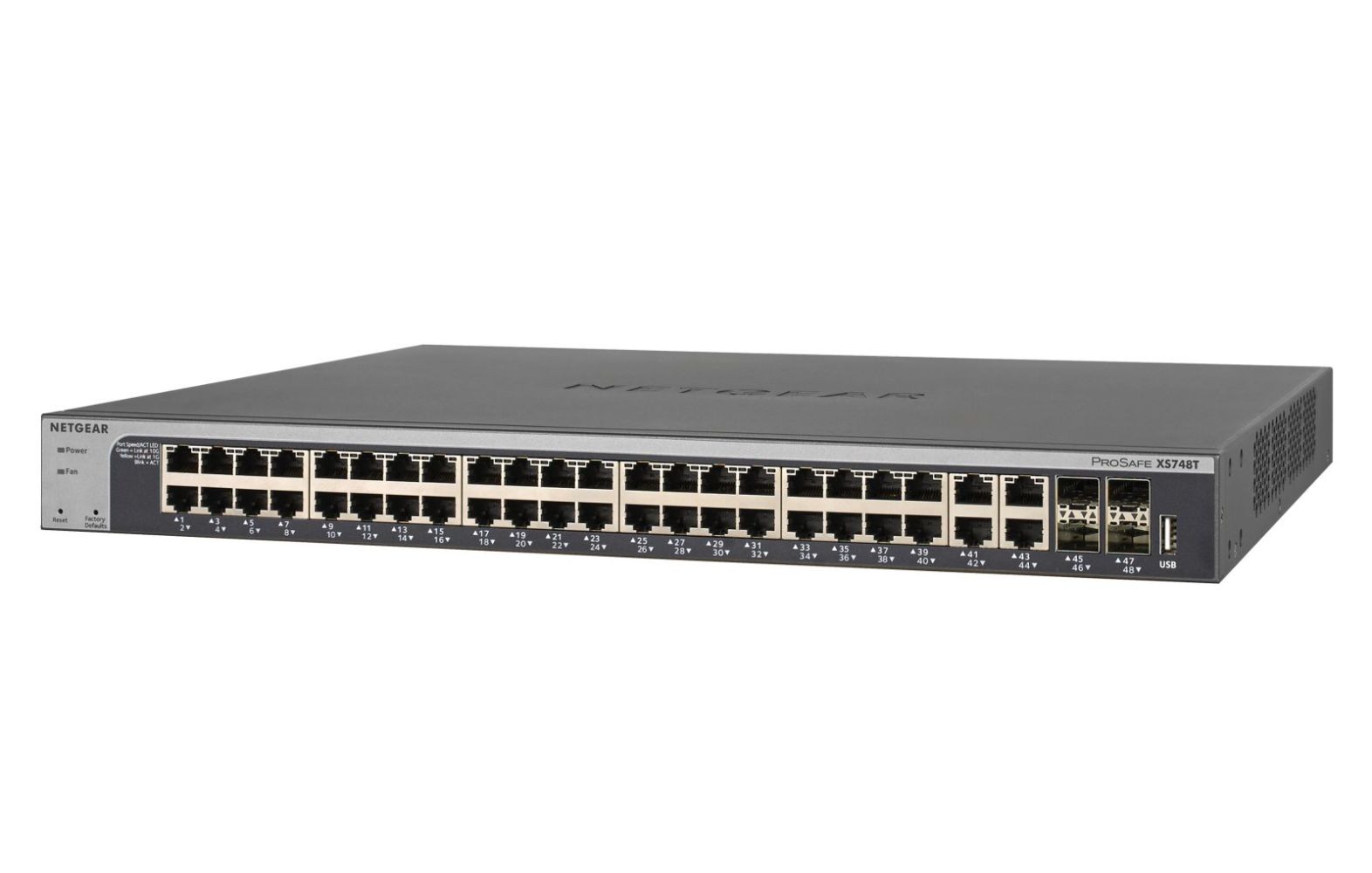

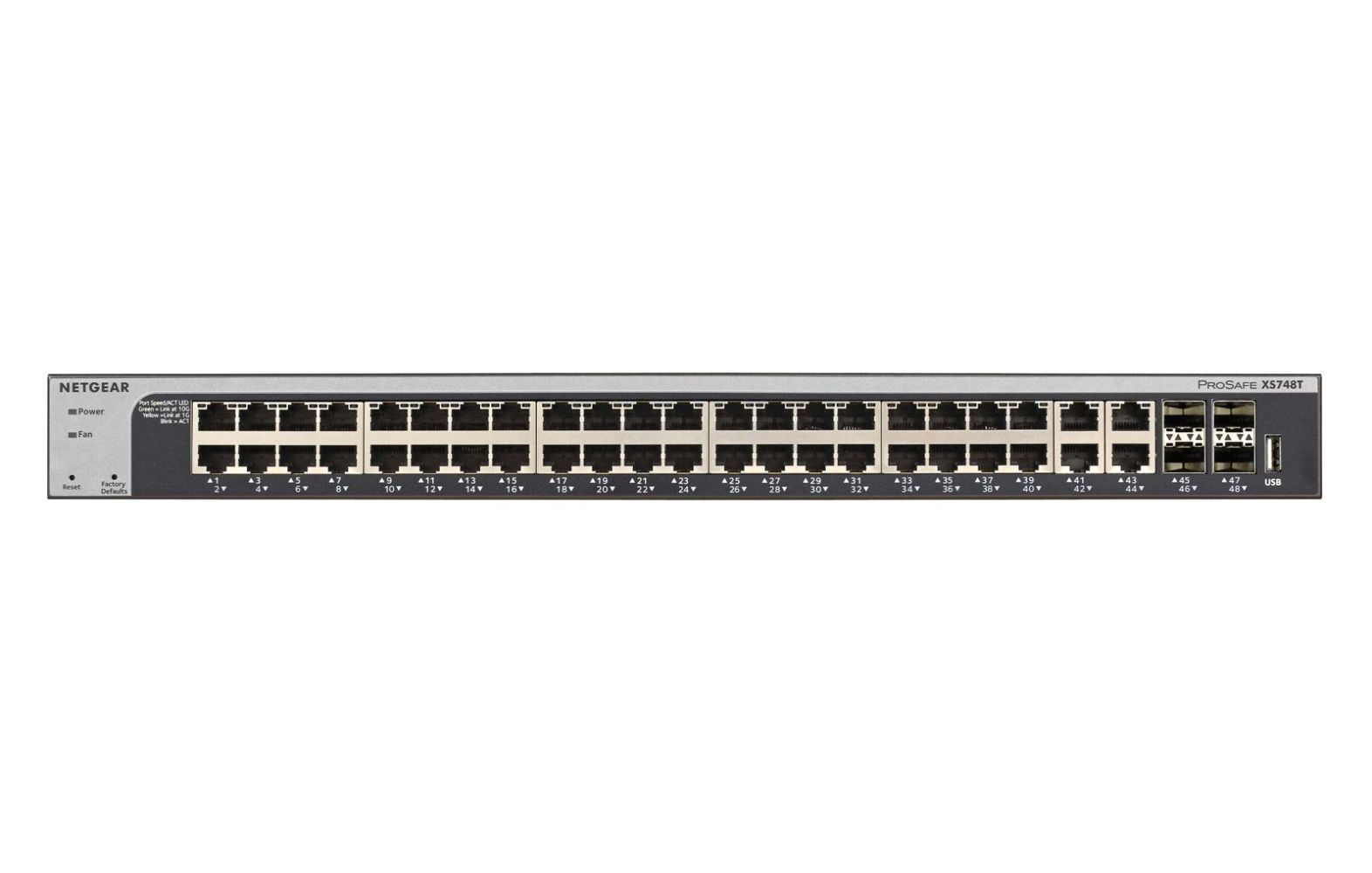

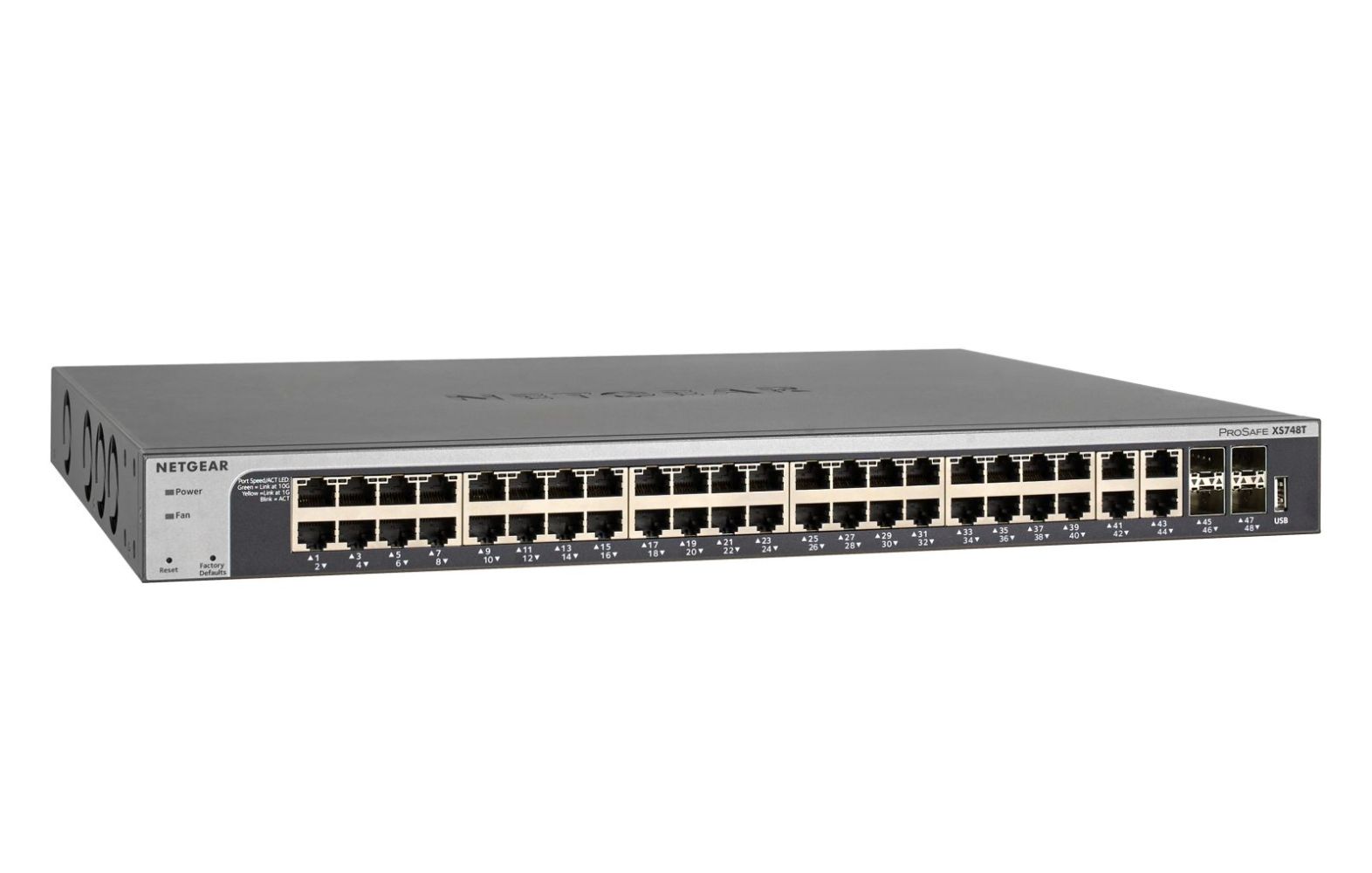

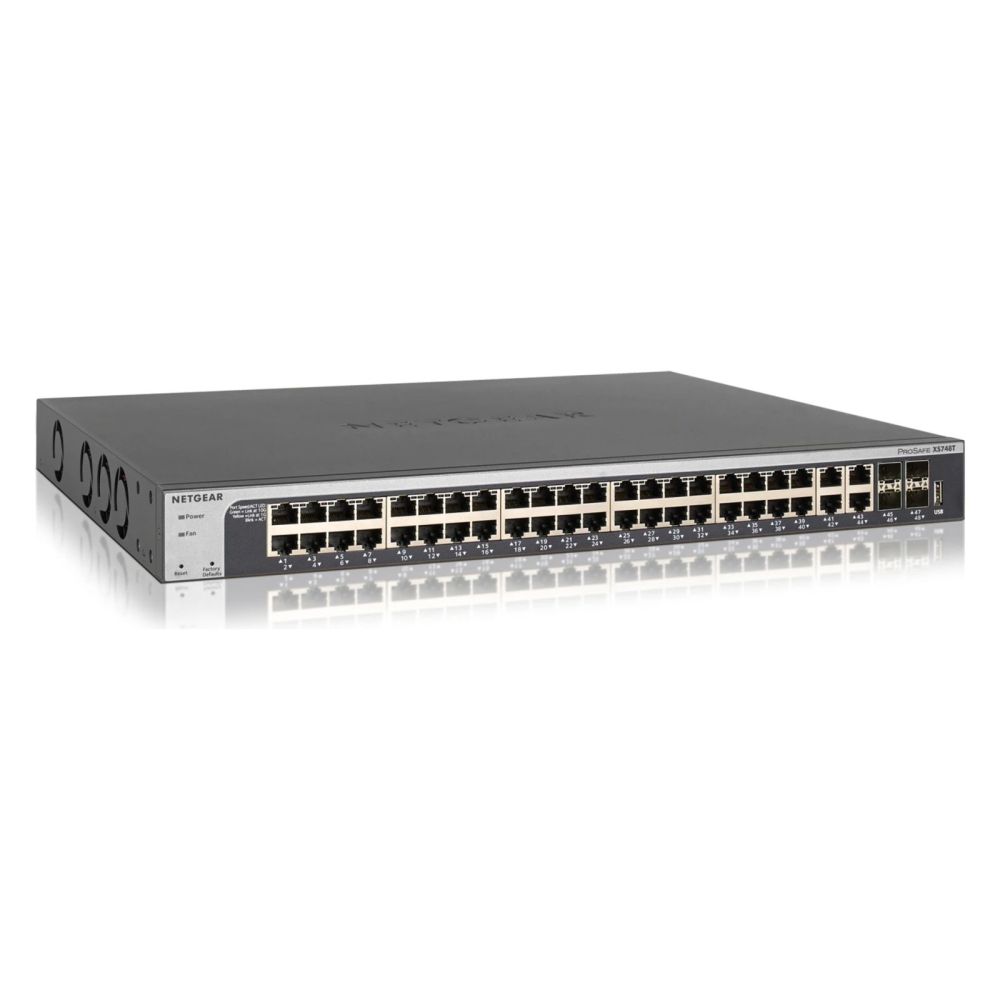

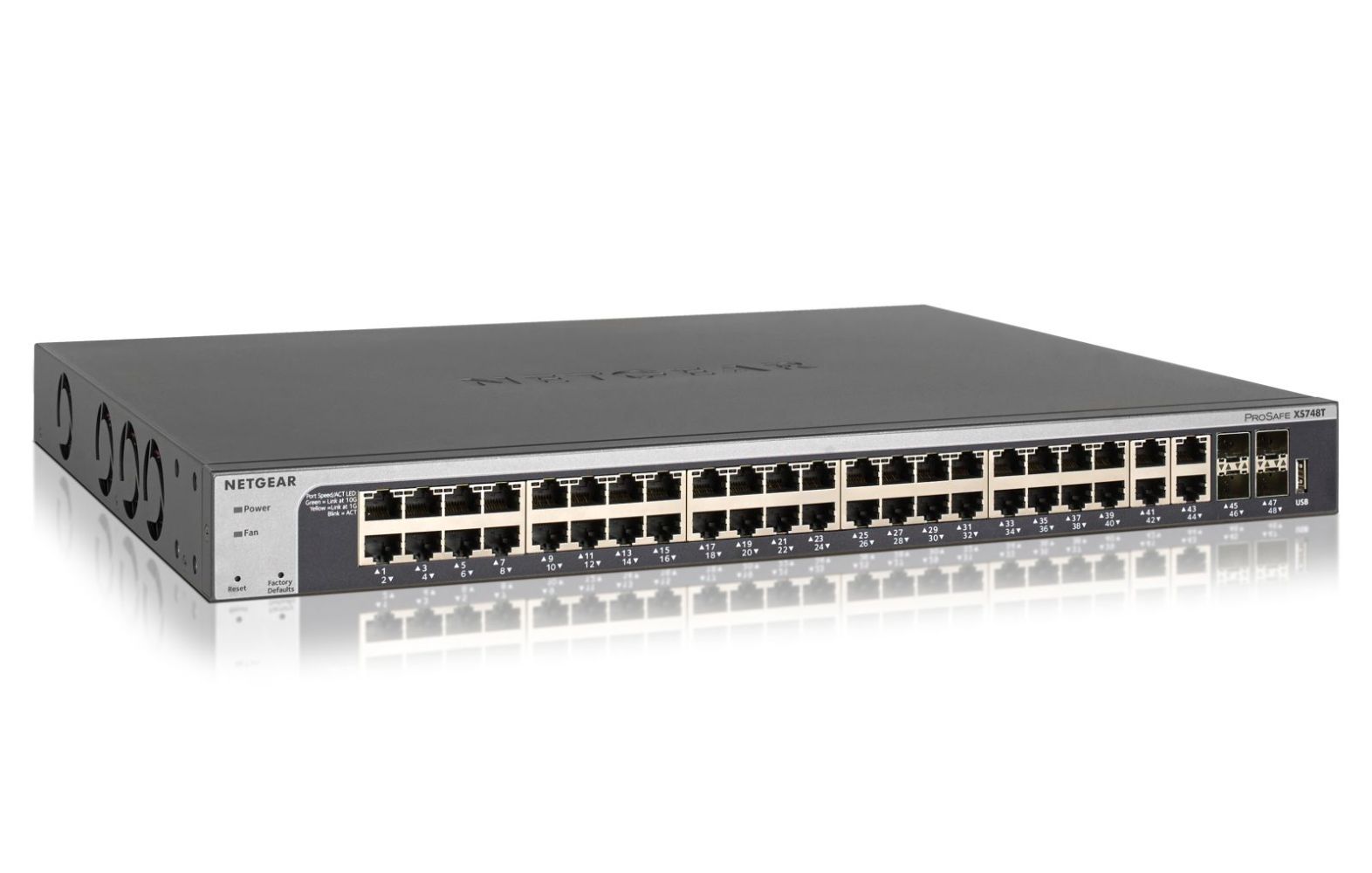

Netgear ProSafe XS748T 44 Ports Manageable Layer 3 Switch - 4 x Expansion Slots content_copy

As a leading provider of network equipment for SMBs, NETGEAR< understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit Smart Managed Switch series from NETGEAR presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost.

The NETGEAR ProSAFE< XS708T, XS716T, XS728T, and XS748T are powerful Smart Managed Switches that come with 8, 16, 24, or 44 10-Gigabit Copper ports and either 2 Shared (Combo) Copper/SFP+ ports (XS708T/XS716T) or 4 additional Dedicated SFP+ ports (XS728T/XS748T) for 10G Fiber links. The NETGEAR 10-Gigabit Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the center of a small business network or as an aggregation / access switch in a larger organization including workgroup access, connecting to a 10-Gigabit NETGEAR ProSAFE Fully Managed Switch on one end and extending the 10G connections to the edge. The XS708T and XS716T are also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation.

Certificates
Certification	CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Data transmission
Switching capacity	960 Gbit/s
MAC address table	16000 entries
Latency (10 Gbps)	3.674 µs
Number of queues	8
Number of static routes	64
Jumbo frames	10000
Packet buffer memory	3 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
LED indicators	Activity, Link, Power
Number of fans	4 fan(s)
Rack mounting
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support
Web-based management
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10GBASE-T
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Virtual LAN features	Private VLAN, Protocol-based VLAN
Number of VLANs	512
10G support
Port mirroring
Full duplex
IP routing
Flow control support
Link aggregation
Rate limiting
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Packaging content
Cables included	AC
Quick start guide
Rack mount kit
Performance
Processor frequency	800 MHz
Internal memory	512 MB
Flash memory	256 MB
Noise level	47.8 dB
Mean time between failures (MTBF)	483808 h
Built-in processor
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	4
USB 2.0 ports quantity	1
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	262.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP v1, v2c, v3
Security
DHCP features	DHCP server, DHCP client
Access Control List (ACL) rules	164
Security algorithms	802.1x RADIUS
Access Control List (ACL)
IGMP snooping
MAC address filtering
Weight & dimensions
Width	440 mm
Depth	310 mm
Height	43 mm
Weight	6.25 kg

---
