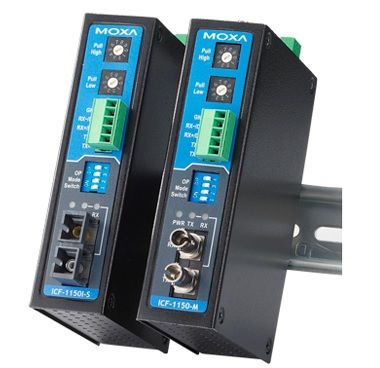

Moxa ICF-1150-M-ST
|
302,00 EUR |
|||||||||||
|
( 359,38 EUR incl. VAT ) ≈ £252.77 | ≈ $331.90 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 142910 | ||||||||||
| Mfg Part No: | ICF-1150-M-ST | ||||||||||
| Weight: | 0.2 kg | ||||||||||
| Type: | ICF-1150 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Moxa ICF-1150-M-ST:
Applications
The ICF-1150-M-ST is suitable for applications in automation technology, such as in manufacturing, power supply, or building automation, where serial devices need to be connected to a fiber network over long distances. The use of multi-mode fiber enables transmission over several kilometers, with fiber cables offering higher immunity to electromagnetic interference compared to electrical cables. The DIN rail mounting facilitates integration into existing enclosures.
Functions and Features in Detail
The device features two serial ports that can be configured as RS-232, RS-422, or RS-485 (2- or 4-wire) according to requirements. The baud rate can be set between 50 bps and 921.6 kbps, including support for non-standard transmission rates. For RS-485 connections, automatic data direction control (ADDC) is used, eliminating the need for manual data direction control. Configuration of pull-up/pull-down resistors and termination resistors (120 Ω, 120 kΩ, N/A) allows flexible adaptation to various bus topologies and improves signal quality.
Technology Explained Simply
The galvanic isolation of 2 kV separates the electrical potentials between the serial interface and the fiber cable, preventing disturbances caused by ground loops or voltage spikes. The ST connectors are robust and suitable for industrial fiber cables. Power supply is provided via a terminal block with a voltage range of 12 to 48 VDC, including integrated overcurrent and reverse polarity protection to safeguard the device. The operating temperature of 0 to 60 °C allows use in typical indoor industrial environments, while the storage temperature of -40 to 85 °C enables safe storage even under extreme conditions.
Compatibility and Accessories
The ICF-1150-M-ST is compatible with a wide range of serial devices supporting RS-232, RS-422, or RS-485. The use of multi-mode fiber requires compatible fiber cables and possibly additional media converters if connection to other fiber types (e.g., single-mode) is necessary. Signal assignments (TxD, RxD, GND, Tx+/-, Rx+/-) are standardized, enabling straightforward connection to common industrial devices.
Mounting and Installation
Mounting is done via a DIN rail, enabling quick and secure installation in enclosures. Connections for the serial interface and power supply are made via terminal blocks, ensuring a secure mechanical connection. The IP30 protection rating of the housing protects against contact with moving parts and against large solid objects, but not against water or dust. Installation requires no special tools; configuration is performed via physical settings on the device.
Operational Advantages
The ICF-1150-M-ST offers high operational reliability through galvanic isolation and integrated protection functions. The automatic data direction control (ADDC) reduces configuration complexity in RS-485 networks. Support for a wide power supply range (12–48 VDC) increases flexibility when integrating into existing power systems. The MTBF of 792,085 hours (according to Telcordia standard) demonstrates the high reliability of the device. Certifications according to UL 61000-4-2 to -4-8, EN 55032/35, FCC Part 15B Class A, and ATEX Zone 2 confirm suitability for demanding industrial and potentially explosive environments.
| General | |
| Serial interface | RS-232/422/485 (2-/4-wire) |
| Number of serial ports | 2 |
| Baud rate | 50 bps to 921.6 kbps |
| Fibre connector | ST connector |
| Fibre type | Multi-Mode |
| Galvanic isolation | 2 kV |
| Data direction control RS-485 | ADDC (automatic) |
| RS-485 termination resistors | N/A, 120 Ω, 120 kΩ |
| Pull-up/pull-down resistors | 150 kΩ, 10 kΩ, 4.7 kΩ, 3.3 kΩ, 1 kΩ, 909 Ω, 822 Ω, 770 Ω, 500 Ω, 485 Ω |
| Current supply | 12 to 48 VDC |
| Max. electricity consumption | 300 mA |
| Power supply connection | Terminal block |
| Housing | Metal |
| Degree of protection | IP30 |
| Mounting | DIN rail |
| Operation temperature | 0 to 60 °C |
| Storage temperature | -40 to 85 °C |
| Air humidity | 5–95 % (non-condensing) |
| Safety certification | UL 61010-2-201 |
| EMC/EMI certification | EN 55032/35, CISPR 32, FCC Part 15B Class A |
| EMS certification | IEC 61000-4-2 to -4-8 |
| Explosion safety | UL/cUL Class I Division 2, ATEX Zone 2 |
| Environmental tests | IEC 60068-2-1/-2/-3 |
| Vibration test | IEC 60068-2-6 |
| MTBF | 792.085 Hours (Telcordia Standard) |
| Overcurrent and reverse polarity protection | |
Questions & answers
What is the delivery time of Moxa ICF-1150-M-ST ?
The article Moxa ICF-1150-M-ST is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Moxa ICF-1150-M-ST to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Moxa ICF-1150-M-ST always at the best possible price. We can give you a discount of 2% on Moxa ICF-1150-M-ST if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Moxa ICF-1150-M-ST we can offer you a price of 288,41 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
