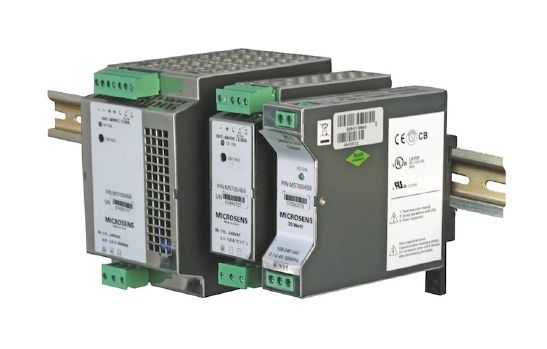

Microsens DIN rail power supply 360 watts 48 VDC/7.5 A, MS700468

Microsens DIN rail power supply 360 watts 48 VDC/7.5 A, MS700468 DIN
rail power supply 360 watts 48 VDC/7.5 A, input 85-132 / 187-264
VAC, screwable connection terminals,
temperature range -40...+70°CThe MICROSENS 10-Port Gigabit Ethernet Desktop Switch with 2 SFP uplinks is a powerful and compact solution for office environments that require high port density and network performance. Its versatile connectivity and integrated management make it an ideal choice for decentralized network infrastructures.

This managed switch features eight RJ-45 ports and two combo ports (RJ-45 or SFP) supporting both copper and fiber-based connections. The flexible configuration of uplink ports allows seamless integration into existing network topologies. The built-in 230 VAC power supply simplifies installation without requiring additional adapters.

Features:

• Gigabit Ethernet Ports:
- 8x 10/100/1000Base-T ports
- 2x Combo ports (10/100/1000Base-T or 100/1000Base-X SFP)
- 1x Console port (RJ-45)

• Security:
- IEEE 802.1X, SSH/SSL, MAC Limiting per port
- IP Source Guard, DHCP Snooping, ACL (up to 256 entries)
- Private VLAN Edge (PVE), Storm Control, Radius/TACACS(+)

• Layer 2 Features:
- Spanning Tree (STP, RSTP, MSTP), VLAN (up to 4K VLANs)
- Link Aggregation (LACP), IGMP/MLD Snooping, Q-in-Q VLAN
- DHCP Relay, GVRP (GARP VLAN Registration Protocol)

• Layer 3 Features:
- IPv4/IPv6 Static Routing (Unicast)

• Network Management:
- Supports SNMP v1/v2c/v3, Web Manager (HTTP/HTTPS)
- Telnet/SSH, QoS, RMON, Port Mirroring, sFlow
- Zero Touch Upgrade, Firmware management via TFTP

• Power Supply:
- Integrated power supply (230 VAC) with IEC C14 connector

• Mounting Options:
- Desktop installation (rubber feet included)
- Wall mounting (keyhole slots)
- 48,3 cm ( 19 inch ) rack mounting (mounting brackets included)


Technical Specifications:



• Switch Type: Gigabit Ethernet Switch (Layer 2 & 3)
• MAC Addresses: 8,192
• Jumbo Frames: Up to 9,216 bytes
• Twisted-Pair Ports:
- 8 ports + 2 combo ports
- Supports 10/100/1000Base-T
- Maximum cable length: 100 m

• Fiber Ports:
- 2 SFP slots (100/1000Base-X)
- Typical connector: LC

• Operating Temperature: 0 °C to 40 °C
• Dimensions: 220 x 38 x 134 mm (WxHxD, without connectors)
• Weight: 1,400 g
• Power Supply:
- Input: 100–240 VAC, 50–60 Hz
- Connector: IEC C14


Package Contents:



• 1x 10-Port Gigabit Ethernet Desktop Switch
• 1x 48,3 cm ( 19 inch ) rack mounting bracket set
• 1x Power cable (C13)
• 1x Set of rubber feet
• 1x Console cable SUB-D9 to RJ-45
• 1x User manual (CD)

Ordering Information:

• 10-Port Gigabit Desktop Switch managed:
- Part Number: MS453526M
- 2x 100/1000Base-X SFP slots or 10/100/1000Base-T combo, 8x 10/100/1000Base-T

• Alternative Products:
- 6-Port Gigabit Desktop Switch managed, 1x SFP, 5x RJ-45 (MS453514M)


Accessories:



• SFP Transceivers:
- MS100200DX: 1.25G Multimode (850 nm, LC, -40 to +85 °C)
- MS100210DX: 1.25G SingleMode (1310 nm, 10 km, LC, -40 to +85 °C)

• Mounting Brackets:
- Magnetic bracket for desktop switches (MS140816)


Applications:


This switch is ideal for office environments requiring high port density, ease of use, and flexible network configurations. With its Layer 2 and Layer 3 features, it is suitable for small businesses as well as larger networks with advanced management needs.
