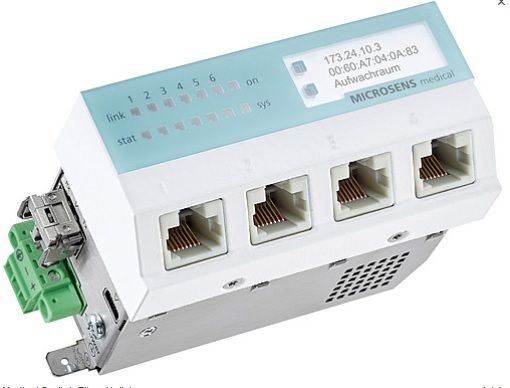

Microsens Gigabit Medical Micro Switch 4x10/100/1000TX, 2x100/1000X SFP, MS445207M-G6

Microsens Gigabit Medical Micro-Switch 4x10/100/1000TX, 2x100/1000X SFP, MS445207M-G6
Gigabit Medical Micro-Switch for 19 medical devices, 4x10/100/1000TX, 2x100/1000X SFP port, manageable, SNMP/Web/CLI, VLANs, QoS, 230VAC, 45x45, horizontal mounting
Security for patients and medical facilities through four galvanically isolated 10/100/1000 Mbit/s ports with integrated network isolators
Exceeds the strict requirements of EN 60601-1 / IEC 60601-1 (min.4 kV) for medical electrical devices
Meets the requirements for patient protection with 2 MOPP according to EN 60601-1
Optional special power supplies for use in medical technology according to EN 60601-1
Highest network availability thanks to two gigabit uplinks
Suitable for HL7 and HIPAA applications
Maximum Performance and reliability through tried-and-tested, robust electronics
Surface made of robust plastic for effective cleaning and disinfection, optional antibacterial coating
High cost-effectiveness proven by independent reports
Investment protection through powerful, future-proof fiber optic cables

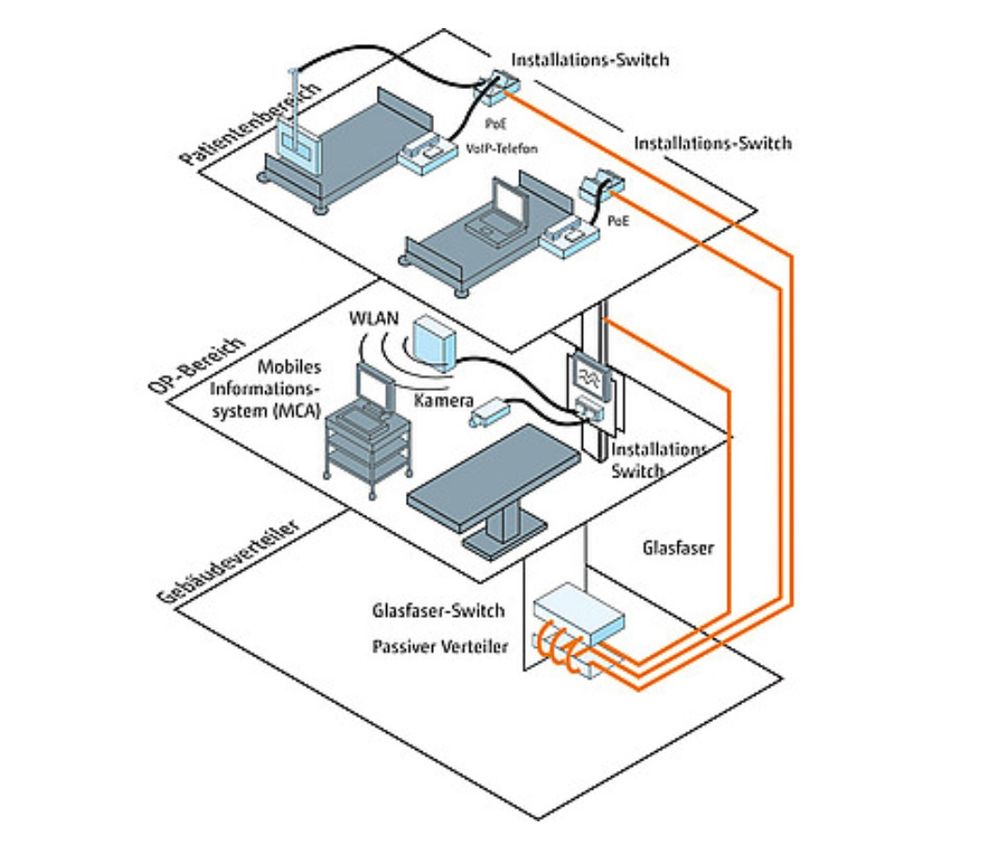

With the Medical Switch, MICROSENS sets new standards in terms of performance, reliability and security for data networks in medical technology, hospitals and practices. The device exceeds the strict requirements for electromagnetic compatibility. The network connections are galvanically decoupled by special isolators to protect patients and devices from residual currents from the network. For the particularly high demands on network security in the medical environment, the Medical Switch offers extensive security features so that confidential data remains confidential. The Medical Switch is based on the proven decentralized network architecture, the cost-effectiveness of which has been proven by independent reports and in numerous projects.
The freely accessible network ports of the MICROSENS Medical Micro-Switches are equipped with special, galvanically insulating transformers whose distance between primary and secondary connections is at least 8 mm. With a minimum voltage strength of 4000 volts and 2 MOPP insulation strength according to IEC/EN 60601-1, the insulators effectively prevent patients and medical staff from being endangered by interference and voltage flashovers.

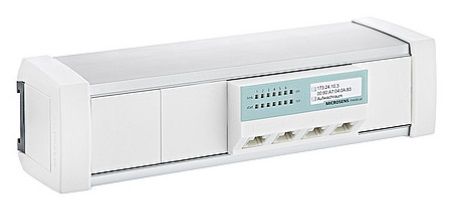

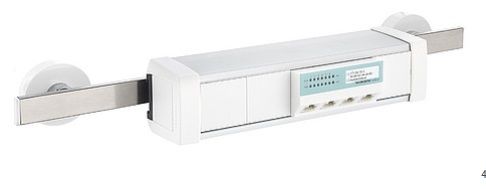

The very compact switches are characterized by their extremely small space requirement and can be installed in different installation situations such as ceiling supply units. In addition to the product variant with an internal 230 VAC power supply, a medical micro switch is also offered for supply from external medical power supplies with 48 VDC. For the 48V version, the use of a separate medical power supply offers additional protection compared to the power supply device.
