MICROSENS Gigabit Ethernet installation switch, Gen. 6+, 6

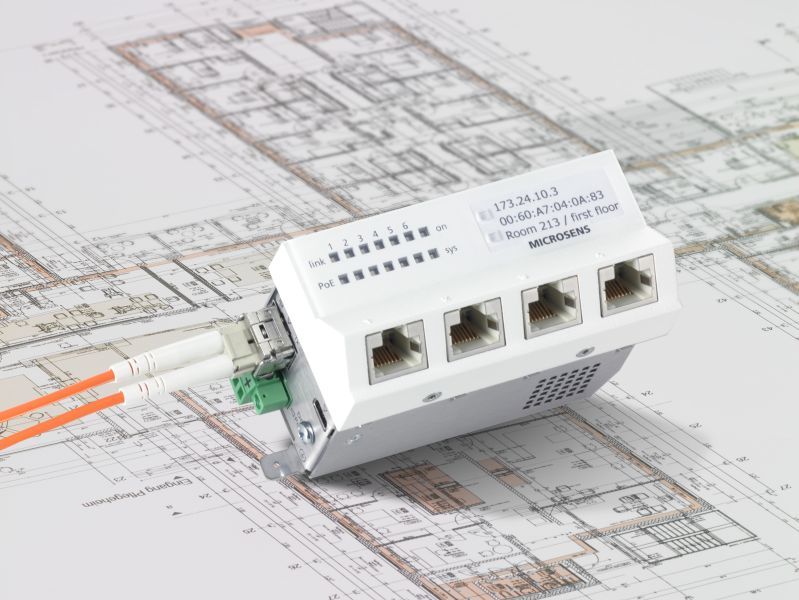

GBE Installation Switch 4x10 / 100 / 1000Base-T + PoE / PoE +, Uplink: 1x100 / 1000Base-X SFP port, downlink: 1x10 / 100 / 1000Base-TX + PoE +, horizontal installation, 44..57 VDC power supply, 5x RJ -45, 1x SFP slot, 1x 3-pole DChe 6-Port GbE Micro Switch G6 by MICROSENS with fiber-optic uplink port(s) and optional PoE+ functionality is a perfect solution for modern network infrastructures. The switch integrates cutting-edge technology into a compact, fanless design that is optimized for use in demanding installation environments such as trunking channels, floor tanks, or customized surface-mounted housings. Its wide range of variants allows for flexible adaptation to different customer needs.

The Micro Switch G6 is available in various base models, including versions with one or two fiber-optic uplink ports and PoE+ functionality, which can directly power connected devices such as IP phones or cameras. Alternatively, non-PoE variants for operation with 230 V AC are also available. The switch ensures maximum reliability, energy efficiency, and quick installation times.

Technical details:

Type:

• Gigabit Ethernet Switch (Layer 2+), IEEE 802.3 compliant

Performance:

• Switching capacity: 32 Gbps
• MAC addresses: 8,192, automatic learning and aging
• Jumbo frames: up to 10,240 bytes

Ports:

• Uplink:
- 1x 1000Base-SX/-LX (SC, ST, LC, MT-RJ, E-2000)
- 1x or 2x SFP slots (100/1000Base-X)
- 1x RJ-45 (1000Base-T)

• Local:
- 4x or 5x RJ-45 (10/100/1000Base-T), optionally with PoE+

PoE+ Function (optional):

• IEEE 802.3at (max. 30 W/port)
• Total PoE power: max. 80 W
• External power supply: typ. 54 V DC

Network management:

• Linux-based operating system
• Web manager (HTTP/HTTPS), Telnet/SSH
• SNMP v1/v2c/v3, IPv4/IPv6 dual stack
• CLI scripting for automated tasks
• Firmware and configuration updates via FTP/SFTP/TFTP

Power supply:

• PoE variant: 44–57 V DC (typ. 54 V)
• Non-PoE variant: 230 V AC (195–265 V)
• Typical power consumption: 4.5 W (without PoE)

Mounting:

• Snap-in mounting for 45-mm installation systems
• Beveled edge for installation in 2-gang frames

Dimensions & weight:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Weight: 325 g

Operating conditions:

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 85 °C
• Humidity: 10–90%, non-condensing

Reliability:

• MTBF: 100,000 hours (MIL-HDBK-217F)

Scope of delivery:

• 1x Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power supply connector
• 1x Quick start guide
• 1x Set of pictogram stickers

Key features:

• Supports up to 2 independent ring topologies
• Optional: microSD memory card for configuration and firmware

Applications:

• Office and industrial networks
• Integration into structured cabling systems
• Powering PoE devices such as cameras and access points

Quality:

• Manufactured in Germany, tested with strict quality controls and burn-in tests

Ordering information:

• MS440200PM-48G6+: PoE+ variant, 1x fiber (ST, 1000Base-SX), horizontal form factor
• MS440207PM-48G6+: PoE+ variant, 2x fiber (SFP), horizontal form factor
• MS440200M-G6+: 230 V variant, 1x fiber (ST, 1000Base-SX), horizontal form factor
• MS440207M-G6+: 230 V variant, 2x fiber (SFP), horizontal form factor
