Microsens installation Gigabit Switch 5 x RJ45, 1x 1000SX content_copy

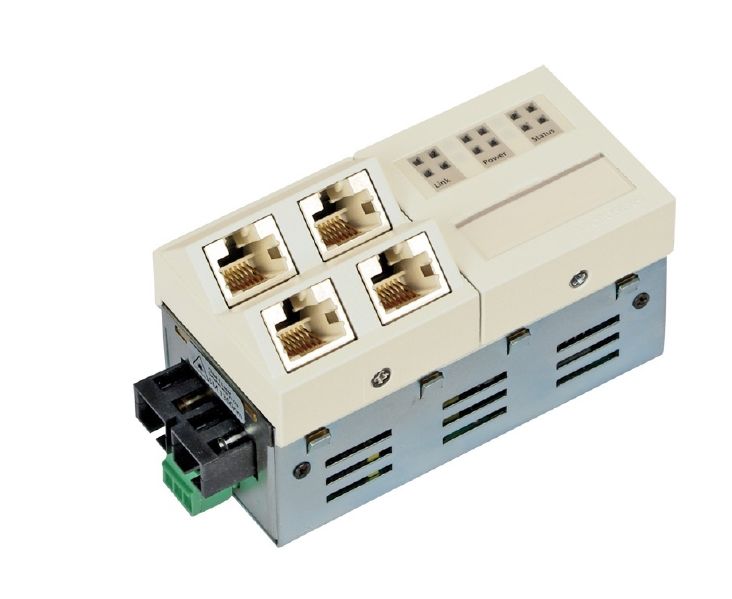

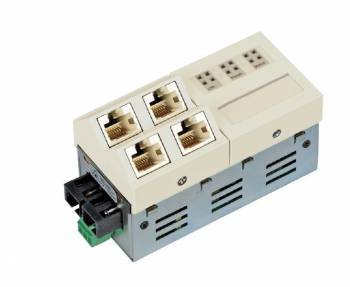

MS440200M-G6Gigabit Inst Ethernet Switch 45x45, 5x10/100/1000TX, 1x1000SX 850nm MM ST port, SNMP / Web / CLI, VLAN, QoS, managebar230VAC Internal power supply, horizontal mountingThe MICROSENS 6-Port Gigabit Ethernet Micro Switch G6 with optional fiber optic uplink ports is a cornerstone in the Fiber-to-the-Office (FTTO) concept. Leveraging state-of-the-art technology, this switch provides a future-proof and flexible platform that seamlessly integrates into diverse network infrastructures. With a wide range of variants, the switch can be tailored to meet specific requirements and is available in horizontal and vertical designs, with or without Power-over-Ethernet (PoE+) functionality.

Features:

• Network Performance:
- Fanless Gigabit Ethernet switch with energy-efficient technology (IEEE 802.3az)
- Store-and-forward switching with full wire-speed, non-blocking performance
- Support for up to 8,192 MAC addresses
- Jumbo Frames (up to 10,240 bytes)


• Power-over-Ethernet (PoE+) Variants:
- IEEE 802.3at compliant (max. 30 W per port)
- Up to 4 or 5 PoE+ ports, depending on the model
- Total power budget: 80 W (fully usable with proper installation)


• Port Flexibility:
- Uplink options: 1x 1000Base-SX/-LX (SC, ST, LC) or up to 2x SFP slots (100/1000Base-X)
- Local ports: 4 or 5x 10/100/1000Base-T (RJ-45)
- Auto-negotiation and Auto MDI/MDI-X for cable compatibility


• Management and Security:
- Support for standard protocols (SNMP v1/v2c/v3, HTTP/HTTPS, Telnet/SSH)
- Dual-stack IPv4/IPv6 and centralized management platform (NMP)
- Integrated scripting for automation
- Encrypted microSD card for configuration and firmware storage


• Mounting and Form Factors:
- Snap-in mounting with 45-mm format for easy integration into trunking systems, floor tanks, or surface-mount enclosures
- Available in horizontal and vertical configurations
- Optional grounding connections for enhanced safety


Technical Specifications:



• Switching:
- Switching capacity: 32 Gbps
- Supported standards: Layer 2+, IEEE 802.3 compliant


• Ports:
- Twisted-pair ports: Up to 5x RJ-45 (10/100/1000Base-T)
- Fiber ports: 1x or 2x SFP (100/1000Base-X)
- RS-232 console port (mini-USB or RJ-45 for 2x SFP variant)


• Power Supply:
- Input (DC): 44–57 V, typical 54 V
- Optional: 230 V AC (for 230-V models)
- Max. power consumption: 4.5 W (without PoE), up to 80 W (with PoE)


• Environmental Conditions:
- Operating temperature: 0 °C to 40 °C
- Storage temperature: -20 °C to 85 °C
- Humidity: 10–90% (non-condensing)


• Mechanics:
- Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
- Weight: 325 g


Package Contents:



• 1x Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power connector
• 1x Quick start guide
• 1x Set of pictogram stickers

Optional Accessories:

• microSD cards for firmware and configuration:
- Standard (MS140894X-4G)
- With dedicated MAC address (MS140894X-4G-M)
- Preconfigured (MS140894X-4G-C)

• SFP transceivers (e.g., multimode, single-mode, or WDM options)
• Management software (NMP 2 Enterprise/Professional)

Applications:

• FTTO installations in office buildings
• Decentralized network structures with high PoE requirements
• Secure network integration with comprehensive VLAN and QoS management

Ordering Information:

• Micro Switch G6 with PoE+:
- Variants with 1x or 2x fiber uplinks and 4–5 PoE+ ports available
- Part numbers: e.g., MS440200PM-48G6+ (horizontal design) or MS440210PM-48G6+ (vertical design)

• Micro Switch G6 without PoE:
- Variants with 1x or 2x fiber uplinks and 4–5 RJ-45 ports
- Part numbers: e.g., MS440200M-G6+ (horizontal design) or MS440210M-G6+ (vertical design)
