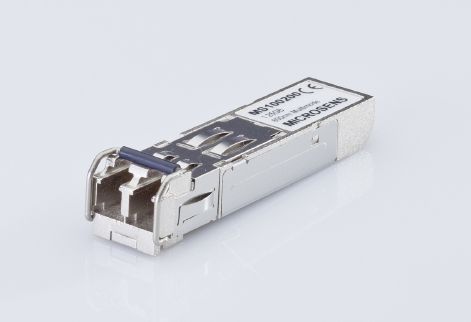

MICROSENS MS100700D - Mini GBIC 10GBE

The Small Form Factor Pluggable (SFP+) is the next generation of interchangeable transceiver modules designed for use in compatible active network components. It is smaller than other available form factors and offers the highest density per interface. Almost all modern network devices with 10G slots are equipped with SFP+ ports, which are identical in design to SFP modules but provide higher performance. This flexibility allows users to configure and expand networks with ease. Thanks to its hot-swap design, SFP+ modules can be replaced during operation without disrupting the network.

The SFP+ is selected based on the cable medium used (multimode, single-mode, or simplex) and bandwidth requirements. The Multi Source Agreement (MSA) specifications and SFF-8472 standards ensure a uniform design and functionality, including optional Digital Diagnostic Monitoring (DDM). This feature significantly improves optical connection monitoring.

SFP+ modules support bandwidths from 8.5 GBit/s to 11.1 GBit/s and cover applications such as 10 Gigabit Ethernet, 8 Gigabit Fibre Channel, and STM-64 (SDH). Depending on the model, ranges from 300 m to 80 km are supported.

Technical Specifications:

Types and Media:

• Supports multimode and single-mode fibers
• LC-duplex connectors for reliable optical connections
• Digital Diagnostic Monitoring (DDM) for precise connection monitoring
• Compatible with 10 Gigabit Ethernet and STM-64

Technical Details:

• Bandwidth: 8.5 GBit/s to 11.1 GBit/s
• Range:
- Multimode: 220 m to 300 m
- Single-mode: 10 km to 80 km

• Wavelengths:
- Multimode: 850 nm or 1310 nm
- Single-mode: 1310 nm or 1550 nm

• Operating Temperature:
- Standard models: 0°C to +70°C
- Extended models: -40°C to +85°C

• Power Budget: Between 3.5 dB and 23 dB (depending on the model)
• Protocols: 10 Gigabit Ethernet, STM-64
• Laser Types:
- Multimode: VCSEL or FP
- Single-mode: DFB or EML


Safety Information:

Warning: Fiber-optic components emit visible and invisible light that can cause irreversible eye damage. To prevent injuries:

• Never look directly into optical ports.
• Cover unused optical ports with protective caps.
• Only activate the connection after all ports are properly connected.

The active laser components used in this product comply with Laser Class 1 standards.

Order Information:

Multimode Models:

• MS100700D: SFP+ 10G Transceiver SR, Multimode 850 nm, DDM, LC, range 300 m, operating temperature 0°C to +70°C
• MS100700DX: With extended temperature (-40°C to +85°C)
• MS100701D: SFP+ 10G Transceiver LRM, Multimode 1310 nm, DDM, LC, range 220 m

Single-Mode Models:

• MS100702D: SFP+ 10G Transceiver LR, Single-mode 1310 nm, DDM, LC, range 10 km
• MS100702DX: With extended temperature (-40°C to +85°C)
• MS100704D: SFP+ 10G Transceiver ER, Single-mode 1550 nm, DDM, LC, range 40 km
• MS100706D: SFP+ 10G Transceiver ZR, Single-mode 1550 nm, DDM, LC, range 80 km

The SFP+ modules are the perfect solution for demanding networks that require reliability and high performance.
