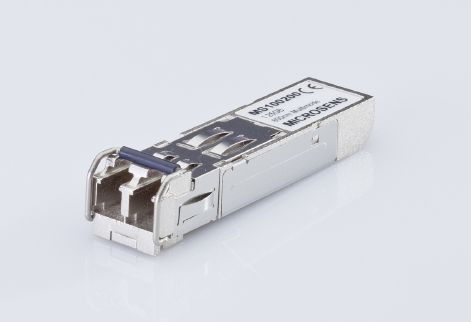

MICROSENS MS100210 Mini-GBIC, 1000 Mbit, LX / LC,
|
64,80 EUR |
|
|
( 77,11 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 182476 |
|---|---|
| Mfg Part No: | MS100210 |
| Weight: | 0.01 kg |
Product information for MICROSENS MS100210:
With its hot-swap functionality, the transceiver can be replaced during operation without interrupting network infrastructure. Compliance with MSA and SFF-8472 standards guarantees high compatibility and reliability, while the optional digital diagnostic interface (DDM) provides valuable insights into network integrity.
Technical Specifications:
Transceiver Types:
- MS100001
- MS100001D
Connector:
- LC plug (duplex)
Interface:
- Multimode
Range:
- Up to 2 km
Operating Temperature:
- 0 °C to +70 °C
Bandwidth:
- 1.0625 Gbps to 1.25 Gbps
Wavelength Range:
- TX: 1270 – 1355 nm
- RX: 1260 – 1610 nm
Power Budget:
- 10 dB
Laser Type:
- FP laser
Protocol Support:
- Gigabit Ethernet
- Gigabit Fibre Channel
Transmit (Power):
- MIN/MAX: -9 / -1 dBm
Receiver (Sensitivity):
- MIN/MAX (overload): -19 / -1 dBm
Extinction Ratio:
- 9 dB
Features:
- Hot-swappable
- Optional digital diagnostic interface (DDM, model MS100001D)
- Compatible with MSA and SFF-8472 standards
- Laser Class 1 safety certified
Safety Notes:
- Never look directly into optical ports, as visible and invisible laser light can cause eye damage.
- Cover unused ports with protective caps.
- Ensure all connections are completed before activating the transmission line.
Ordering Information:
