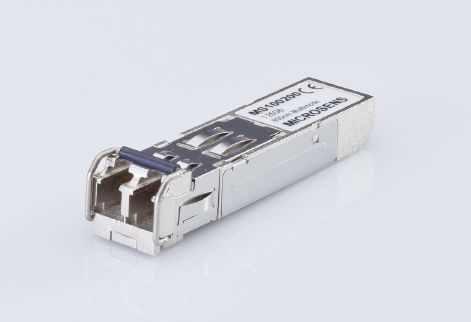

Microsens mini-GBIC, 1000Mbps, SX / LC, MS100200

The Small Form Factor Pluggable (SFP) transceiver module of the new generation offers maximum flexibility in network configuration and the highest port density per line card. It is compatible with nearly all active network devices with 1G slots. Thanks to the hot-swap functionality, SFP modules can be installed or replaced during operation without disrupting network operations.

The Low Power SFPs (LPC SFP) are an energy-efficient advancement, providing the same transmission performance as standard SFPs while consuming only 70% of the electrical power. This significantly reduces energy consumption and heat generation in your network infrastructure. Additionally, compliance with MSA and SFF-8472 standards ensures standardized design and optional digital diagnostic functions.

Technical Specifications:

Transceiver Types:

• MS100200DX-V2
• MS100210DX-V2
• MS100221DXA-V2
• MS100221DXB-V2

Connector:

• LC plug (duplex or simplex, depending on the model)

Supported Cable Media:

• Multimode
• Singlemode
• Singlemode simplex

Range:

• 300 m to 20 km (depending on the model)

Power Consumption:

• Max. 0.6 W

Operating Temperature:

• -40 °C to +85 °C

Bandwidth:

• 1.063 Gbps to 1.25 Gbps

Wavelength Range:

• TX: 830–1570 nm (depending on the model)
• RX: 830–1330 nm (depending on the model)

Power Budget:

• 7.5 dB to 15 dB (depending on the model)

Laser Type:

• VCSEL (850 nm)
• FP Laser (1310 nm)
• DFB Laser (1550 nm)

Protocol Support:

• Gigabit Ethernet
• Gigabit Fibre Channel

Features:

• Hot-swappable
• Energy-efficient design
• Digital diagnostic interface (DDM)
• Laser Class 1

Safety Notes:

• Never look directly into the optical ports, as visible and invisible light from laser components can cause eye damage.
• Cover unused ports with protective caps.
• Ensure all connections are completed before activation.

Ordering Information:

• MS100200DX-V2: LPC SFP GbE Transceiver 1.25G SX, Multimode, 850nm, DDM, LC, -40..+85°C
• MS100210DX-V2: LPC SFP GbE Transceiver 1.25G LX, SingleMode, 1310nm, 10km, DDM, LC, -40..+85°C
• MS100221DXA-V2: LPC SFP GbE WDM Transceiver 1.25G BX, SingleMode TX1310nm / RX1550nm, 20km, DDM, LC simplex, -40..+85°C
• MS100221DXB-V2: LPC SFP GbE WDM Transceiver 1.25G BX, SingleMode TX1550nm / RX1310nm, 20km, DDM, LC simplex, -40..+85°C
