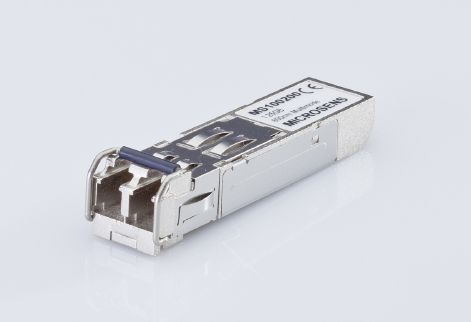

MICROSENS MS100191 SFP Pluggable Transceiver Fast Ethernet, LX / LC,

The Fast Ethernet (FE) SFP Transceivers from MICROSENS offer a compact, reliable, and flexible solution for networks with bandwidths of up to 155 Mbps. These transceivers are available in Multimode, Singlemode, and WDM variants, covering transmission distances ranging from 2 km (Multimode) to 40 km (Singlemode). They are ideal for use in Fast Ethernet networks as well as STM-1 and (model-dependent) OC-3 applications.

The Small Form Factor Pluggable (SFP) design allows for space-saving installation with maximum density per line card and supports hot-swapping, enabling modules to be replaced during operation without network interruption. Variants with integrated Digital Diagnostic Monitoring (DDM) allow for monitoring of operational parameters such as temperature, signal levels, and supply voltage.

The WDM models allow bidirectional data transmission over a single fiber by utilizing different wavelengths for transmitting (TX) and receiving (RX). Industrial-grade variants with an extended operating temperature range of -40 °C to +85 °C are available for demanding environments.

The transceivers comply with Multi Source Agreement (MSA) and SFF-8472 standards, ensuring maximum compatibility with a wide range of network components.
Technical Specifications:

General Features:

Type: SFP (Small Form Factor Pluggable)
Connector: LC Duplex or LC Simplex (WDM models)
Interface: Multimode or Singlemode
Bandwidth: 100–155 Mbps (model-dependent up to 200 Mbps)
Protocols: Fast Ethernet, STM-1, OC-3 (model-dependent)
Operating Temperature:
Standard: 0 °C to +70 °C
Industrial: -40 °C to +85 °C (model-dependent)
Hot-Swappable: Yes
Digital Diagnostic Interface (DDM): Internal (model-dependent)

Optical Features (model-dependent):

Multimode Models:
TX/RX Wavelength: 1310 nm
Distance: 2 km
Singlemode Models:
TX/RX Wavelength: 1310 nm
Distance: 15 km or 40 km
WDM Models (Simplex):
TX/RX Wavelengths: TX 1310 nm / RX 1550 nm or vice versa
Distance: 15 km
Power Budget: 11–30 dB (model-dependent)
Extinction Ratio: 8.2–10 dB (model-dependent)

Models and Ranges:

Multimode (1310 nm, LC Duplex):

MS100190D: 155 Mbps, DDM, 2 km, 0 °C to +70 °C.
MS100190DX: 155 Mbps, DDM, 2 km, -40 °C to +85 °C.

Singlemode (1310 nm, LC Duplex):

MS100191: 155 Mbps, 15 km, 0 °C to +70 °C.
MS100191D: 155 Mbps, DDM, 15 km, 0 °C to +70 °C.
MS100191DX: 155 Mbps, DDM, 15 km, -40 °C to +85 °C.
MS100192D: 155 Mbps, DDM, 40 km, 0 °C to +70 °C.
MS100192DX: 155 Mbps, DDM, 40 km, -40 °C to +85 °C.

WDM Models (Simplex):

MS100191DXA: 155 Mbps, TX 1310 nm / RX 1550 nm, DDM, 15 km, -40 °C to +85 °C.
MS100191DXB: 155 Mbps, TX 1550 nm / RX 1310 nm, DDM, 15 km, -40 °C to +85 °C.

Safety Features:

Laser Class 1: Compliant with international safety standards.
Precautions:
Never look directly into optical outputs to avoid eye damage.
Always cover unused optical ports with protective caps.
Activate connections only after completing installation.

Ordering Information:

Multimode Models:

MS100190D: 155 Mbps, FX, 1310 nm, DDM, LC, 2 km, 0 °C to +70 °C.
MS100190DX: 155 Mbps, FX, 1310 nm, DDM, LC, 2 km, -40 °C to +85 °C.

Singlemode Models:

MS100191: 155 Mbps, FX, 1310 nm, LC, 15 km, 0 °C to +70 °C.
MS100191D: 155 Mbps, FX, 1310 nm, DDM, LC, 15 km, 0 °C to +70 °C.
MS100191DX: 155 Mbps, FX, 1310 nm, DDM, LC, 15 km, -40 °C to +85 °C.
MS100192D: 155 Mbps, FX, 1310 nm, DDM, LC, 40 km, 0 °C to +70 °C.
MS100192DX: 155 Mbps, FX, 1310 nm, DDM, LC, 40 km, -40 °C to +85 °C.

WDM Models (Simplex):

MS100191DXA: 155 Mbps, BX, TX 1310 nm / RX 1550 nm, LC Simplex, 15 km, -40 °C to +85 °C.
MS100191DXB: 155 Mbps, BX, TX 1550 nm / RX 1310 nm, LC Simplex, 15 km, -40 °C to +85 °C.

For further information, please visit the MICROSENS website: www.microsens.com.
