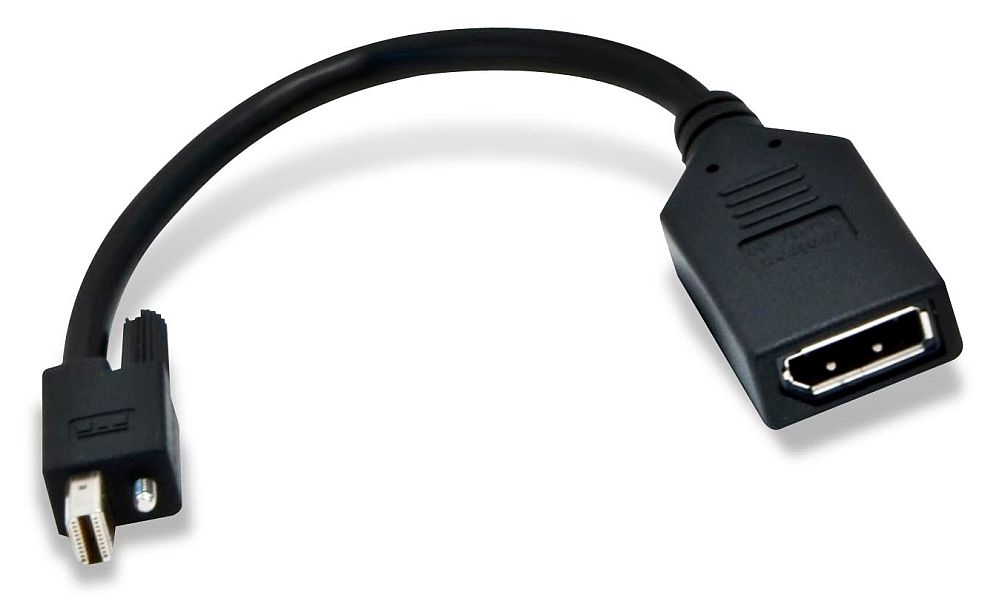

Matrox CAB-MDP-DPF cable mini DisplayPort to DisplayPort
|
27,11 EUR |
|
|
( 32,26 EUR incl. VAT ) ≈ £22.66 | ≈ $29.96 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 320560 |
| Mfg Part No: | CAB-MDP-DPF |
| UPC/EAN: | 0790750240206 |
| Weight: | 0.045 kg |
| Type: | CABL |
Product information for Matrox CAB-MDP-DPF:
The Matrox CAB-MDP-DPF is an adapter cable for connecting Mini DisplayPort and DisplayPort interfaces. It serves as an interface component between devices with a Mini DisplayPort output and displays or other devices with a DisplayPort input. The cable is specifically designed for use with Matrox graphics cards and products, particularly models such as C420, C680, M9138, M9148, M9188, as well as the DualHead2Go Digital SE and TripleHead2Go DP Edition. It is used as a replacement part, upgrade, or addition to existing systems.
Applications
The adapter is suitable for professional applications where multiple screens are connected via graphics cards with Mini DisplayPort outputs. It enables connection to monitors, projectors, or other display devices equipped with a DisplayPort input. The maximum resolution is 3840 x 2160 pixels, equivalent to 4K resolution. Support for 3840p video modes makes it suitable for high-resolution display applications. However, use at 4K60 resolution is not recommended, as the nominal attenuation may affect signal quality.
Features and Specifications in Detail
The cable features a Mini DisplayPort plug (male) at one end and a DisplayPort socket (female) at the other. Both connectors are lockable, ensuring a secure and stable connection. The cable length is 0.2 metres, sufficient for short connections between device and display. The adapter is black, allowing for discreet integration into technical environments. Dimensions are a depth of 189 mm, height of 17 mm, and width of 144 mm.
Technology Explained Simply
The adapter functions as a passive connection unit without additional power supply or signal amplification. It transmits the digital video signal directly from the Mini DisplayPort plug to the DisplayPort socket. The locking mechanism of the connectors ensures the cable cannot be accidentally disconnected, which is particularly important for mobile or frequently moved applications. The maximum resolution of 3840 x 2160 pixels corresponds to the standard for 4K displays, while the recommendation against use at 4K60 Hz indicates that signal transmission at high refresh rates may not be optimal.
Compatibility and Accessories
The adapter is specifically intended for use with Matrox graphics cards and products. It is compatible with models C420, C680, M9138, M9148, M9188, DualHead2Go Digital SE, and TripleHead2Go DP Edition. It is used as a replacement part, upgrade, or addition to existing systems. It is recommended to use one adapter per graphics card output to ensure full functionality.
Installation and Mounting
Installation is performed by simply inserting the Mini DisplayPort plug into the graphics card output and the DisplayPort socket into the display or target device input. The locking mechanism of the connectors must be activated to ensure a secure connection. No additional tools or software are required. The connection is immediately functional once the connectors are properly engaged.
Operational Advantages
The adapter provides a reliable and compact solution for connecting Mini DisplayPort and DisplayPort devices. The lockable connectors ensure a stable connection that remains secure even under mechanical stress. The compact design and short cable length allow for neat cabling and reduce the risk of cable entanglement. Compatibility with specific Matrox products makes it a suitable replacement or upgrade part for existing systems.
Certifications
The adapter complies with the RoHS directive, excluding the use of hazardous substances in the product and ensuring environmental compatibility. This certification is relevant for use in professional and industrial environments.
Product Type, Core Function, Technology, Standard
The item is an adapter for connecting Mini DisplayPort and DisplayPort. The core function is signal transmission between both interface types. The technology is based on passive signal transmission without amplification. The standard RoHS is fulfilled, ensuring environmental compatibility.
Applications
The adapter is suitable for professional applications where multiple screens are connected via graphics cards with Mini DisplayPort outputs. It enables connection to monitors, projectors, or other display devices equipped with a DisplayPort input. The maximum resolution is 3840 x 2160 pixels, equivalent to 4K resolution. Support for 3840p video modes makes it suitable for high-resolution display applications. However, use at 4K60 resolution is not recommended, as the nominal attenuation may affect signal quality.
Features and Specifications in Detail
The cable features a Mini DisplayPort plug (male) at one end and a DisplayPort socket (female) at the other. Both connectors are lockable, ensuring a secure and stable connection. The cable length is 0.2 metres, sufficient for short connections between device and display. The adapter is black, allowing for discreet integration into technical environments. Dimensions are a depth of 189 mm, height of 17 mm, and width of 144 mm.
Technology Explained Simply
The adapter functions as a passive connection unit without additional power supply or signal amplification. It transmits the digital video signal directly from the Mini DisplayPort plug to the DisplayPort socket. The locking mechanism of the connectors ensures the cable cannot be accidentally disconnected, which is particularly important for mobile or frequently moved applications. The maximum resolution of 3840 x 2160 pixels corresponds to the standard for 4K displays, while the recommendation against use at 4K60 Hz indicates that signal transmission at high refresh rates may not be optimal.
Compatibility and Accessories
The adapter is specifically intended for use with Matrox graphics cards and products. It is compatible with models C420, C680, M9138, M9148, M9188, DualHead2Go Digital SE, and TripleHead2Go DP Edition. It is used as a replacement part, upgrade, or addition to existing systems. It is recommended to use one adapter per graphics card output to ensure full functionality.
Installation and Mounting
Installation is performed by simply inserting the Mini DisplayPort plug into the graphics card output and the DisplayPort socket into the display or target device input. The locking mechanism of the connectors must be activated to ensure a secure connection. No additional tools or software are required. The connection is immediately functional once the connectors are properly engaged.
Operational Advantages
The adapter provides a reliable and compact solution for connecting Mini DisplayPort and DisplayPort devices. The lockable connectors ensure a stable connection that remains secure even under mechanical stress. The compact design and short cable length allow for neat cabling and reduce the risk of cable entanglement. Compatibility with specific Matrox products makes it a suitable replacement or upgrade part for existing systems.
Certifications
The adapter complies with the RoHS directive, excluding the use of hazardous substances in the product and ensuring environmental compatibility. This certification is relevant for use in professional and industrial environments.
Product Type, Core Function, Technology, Standard
The item is an adapter for connecting Mini DisplayPort and DisplayPort. The core function is signal transmission between both interface types. The technology is based on passive signal transmission without amplification. The standard RoHS is fulfilled, ensuring environmental compatibility.
| Certificates | |
| Compliance certificates | RoHS |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 3840p |
| Cable length | 0.2 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| Nominal attenuation | Not recommended for 4K60 resolutions |
| Connector 1 lockable | |
| Connector 2 lockable | |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Connector(s) | Mini DisplayPort (male) to DisplayPort (female) |
| Depth | 189 mm |
| Height | 17 mm |
| Width | 144 mm |
