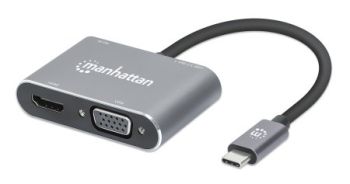

Manhattan 130691
USB-C to HDMI & VGA 4-in-1 docking converter with Power Delivery USB 3.2 Type-C male to HDMI (4K@30Hz), VGA (1080p@60Hz), USB-A (5Gbit/s) and USB-C PD (87W) sockets content_copy

Passthrough charging port, aluminum, space gray
USB-C to HDMI and VGA adapter - connection for laptop, MacBook, smartphone or tablet to dual monitor setup plus USB-A peripherals and PD charging port:
The Manhattan USB-C to HDMI < VGA 4-in-1 Docking Converter with Power Delivery forms a quick, easy and practical interface between USB Type C devices (laptop, computer, MacBook, Chromebook, tablet, etc.) and HDMI/VGA displays ( monitor, television, projector). The resolution is up to 4K@30Hz on the HDMI screen, 1080p@60Hz on VGA and 1080p@60Hz when using both video ports at the same time. Thanks to the USB-A port with USB 3.2 Gen 1 (formerly USB 3.0) for connecting a mouse or keyboard, this adapter is also suitable for a mini workstation or for connecting a USB stick, USB printer or USB hard drive. Installation remains quick and easy with Plug < Play.
Up to 87 W charging power with USB-C Power Delivery (PD):
The integrated USB-C PD port allows notebook battery charging with up to 100 W and the simultaneous charging of your other mobile devices such as smartphones or tablets via the USB-A port . The Power Delivery function with all its advantages also ensures particularly fast, powerful and safe charging.
Bring your phone to the big screen:
If you have a smartphone with Android 9 or higher and support for video output via USB-C, you can use apps and media on a connected display. Watch a video on your TV or show a presentation on a projector - directly from your cell phone.
A multiport adapter for on the go:
Despite the many connection options, the robust aluminum housing of this adapter measuring 62 x 40 x 15 mm is compact enough for the outer compartment of a notebook bag. - For connecting two displays, a peripheral device and charging your devices

• Resolution up to 4K@30Hz UHD (3840 × 2160) via HDMI connection
• Resolution up to 1080p@60Hz Full HD (1920 × 1080) via VGA connection
• Dual video output with resolutions up to 1080p@60Hz on both displays
• Supports Duplicated and Extended Duplicated display modes
• One USB 3.2 Gen 1 Type-A port (formerly USB 3.0) with SuperSpeed transfer rates up to 5 Gbit/s and charging power up to 5W (5V / 1A)
• USB-A port for connecting mice, keyboards or storage media (and more) or for charging and syncing a mobile device
• Supports USB Power Delivery (PD) function with up to 87W; Requires external PD charger - available from Manhattan
• Compatible with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
• Compatible with all USB-C DP alt-mode supported PCs, notebooks and tablets, including Apple MacBook®, Chromebook™, Pixel™ and more
• Rugged, slim aluminum housing suitable for desktop and on-the-go use
• Built-in, durable 15 cm Connection Cable
• Fully HDCP 1.4 compliant, backwards compatible
• Allows you to use your smartphone as a desktop PC while simultaneously charging its battery (desktop display requires devices running Android 9 or higher with video output via USB-C)
• Plug < Play installation; Compatible with Windows®, macOS®, Chrome OS™, iPadOS® and Android™
• 3 year warranty Standards and certificates
• DP 1.2 Alt Mode via USB-C
• USB 3.2 Gen 1
• HDMI 1.4
• HDCP 1.4
• CE
• FCC
• RoHS
• REACH
• UKCA
General

• Transfer rate USB-A port: 5 Gbit/s max.
• Powered via USB (except charging functions)
• USB-C PD charging port: 87.0 W (20.0 V at 5.0 A) max.
• USB-A charging function: 5 W (5.0 V at 1.0 A) max.
Connections

• 1 x 24-pin. USB-C connector
• 1 x 24-pin. USB-C socket
• 1 x 4-pin USB-A socket
• 1 x 19-pin HDMI socket
Physical details

• Dimensions (L x W x H): 62 x 40 x 15 mm
• Net weight: 42 g
• Gross weight: 63 g
• Cable length: 15 cm
• Cable diameter: AWG 34
• Aluminum housing
Working environment

• Operating ambient temperature: 0 - 45°C
• Ambient storage temperature: -10 - 70°C
• Humidity (non-condensing): 5 - 90% RH
System requirements

• Windows 7/8.1/10/11, Chrome OS, macOS, iPadOS or Android
Package contents

• USB C to HDMI < VGA 4-in-1 Docking Converter with Power Delivery
• Instructions Color: Space Gray Product dimensions: 62 (L) x 40 (W) x 15 (H) [mm]

Network
Ethernet LAN
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Packaging content
Manual
Packaging data
Quantity per pack	1 pc(s)
Package weight	63 g
Performance
Data transfer rate	5 Gbit/s
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Product colour	Grey
Housing material	Aluminium
Certification	CE FCC RoHS REACH UKCA
Card reader integrated
Plug and Play
Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
VGA (D-Sub) ports quantity	1
DisplayPort version	1.2
HDCP version	1.4
Microphone in
DC-in jack
HDCP
Power
USB cable length	0.15 m
Wireless charging
Software
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1
Other operating systems supported	Android, ChromeOS
Mac operating systems supported
Linux operating systems supported
Technical details
Compliance certificates	CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Weight & dimensions
Width	40 mm
Depth	62 mm
Height	15 mm
Weight	42 g

---
