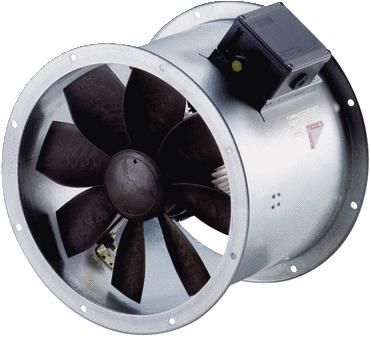

Product design: For operating temperatures of -20 °C <= Ta <= +60 °C. Special properties: Axial tube fan, explosion-proof, medium gas. Explosion protection and approvals according to
ATEX and IECEx. Ex II 2 G Ex eb IIB + H2 T3/T4 Gb / Ex II 2 G Ex h IIB + H2 T3/T4 Gb. Operating temperatures dependent on temperature class: T3 -20 °C <= Ta <= +60 °C, T4 -20 °C <= Ta <= +40 °C. For all gases and vapors of Ex groups IIA and IIB and additionally qualified for hydrogen. MAICO Ex fans meet the safety requirements of the European Directive RL 2014/34/EU for equipment and protective systems in potentially explosive atmospheres. For Zone 1 and 2. Ignition protection types: e - increased safety and c - structural safety. Protection class
IP 64. Can be switched for ventilation or exhaust ventilation. Pipe sleeve made of galvanized sheet steel, with flange on both sides - hole pattern according to DIN 24155. For simple and direct installation in a pipe system. Installation possible in any position. Impeller: Axial impeller made of conductive plastic. Balance quality of the motor-impeller combination G 6.3 according to category BV-3 in accordance with ISO 14694. Air flow direction: The air flow direction is marked. Standard exhaust air operation, air flow direction sucking via motor. Motor: Robust three-phase motor with ball bearing, maintenance-free. Reversible. Reversible operation: The volume flow is reduced by approx. 35% if the air flow direction is abnormal. Operating mode S1 (continuous operation). Speed control with transformer TR... possible. Exception: DZR 35/2 B Ex... The temperature in the fan motor is monitored by PTC thermistors. The PTC thermistors must be connected to a trigger system (safety device according to Directive 2014/34/EU) that permanently disconnects the fan from the power supply if the temperature is too high. The MAICO PTC thermistor tripping system MVS 6 or TMS is recommended as the tripping system. Electrical connection: Terminal box mounted on the fan, explosion-proof, with cable gland. Safety instructions: Only operate the fan with free intake or exhaust if the impeller is protected against contact in accordance with DIN EN ISO 13857, e.g. B. with protective grille SG.Article: DZR 60/6 B Ex e, delivery volume: 9370 m3/h, speed: 960 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 295 W, cosphi: 0.65, INom: 0.66 A, Imax at UNom: 1.25 A, protection class:
IP 64, thermal class: F, installation position: vertical / horizontal, material: sheet steel, galvanized, housing material: sheet steel, galvanized, color: galvanized, weight: 30.12 kg, weight with packaging: 34.48 kg, nominal width: 600 mm, width: 745 mm, height: 745 mm, depth: 400 mm, width with packaging: 770 mm, height with packaging: 790 mm, depth with packaging: 435 mm, EX designation according to
ATEX directive: Ex II 2 G, EX designation according to standard: Ex eb IIB + H2 T3 Gb / Ex h IIB + H2 T3 Gb, Ta ambient temperature: -20 °C <= Ta <= +60 °C, IA/IN: 4.5, time tA: 290 sec,Operating mode: S1, PTC DIN 44082: M 130, EC type examination certificate: TÜV-A 19
ATEX0103 X, IECEx EPS 19.0019X, temperature class: T3, thermal class of insulating materials Th. Cl.: 155 (F)
Questions & answers
What is the delivery time of Maico 0086.0715 DZR 60/6 BE Ex e Axial, tubefan DN600 ?
The article Maico 0086.0715 DZR 60/6 BE Ex e Axial, tubefan DN600 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0086.0715 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0086.0715 DZR 60/6 BE Ex e Axial, tubefan DN600 always at the best possible price. We can give you a discount of 2% on
Maico 0086.0715 DZR 60/6 BE Ex e Axial, tubefan DN600 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Maico 0086.0715 DZR 60/6 BE Ex e Axial, tubefan DN600 we can offer you a price of 3.354,46 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico 0086.0715 DZR 60/6 BE Ex e Axial, tubefan DN600 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
