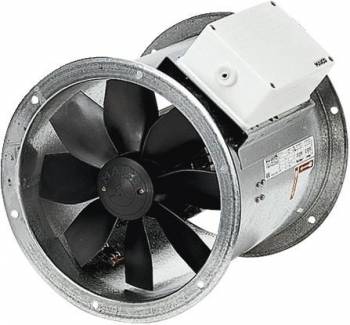

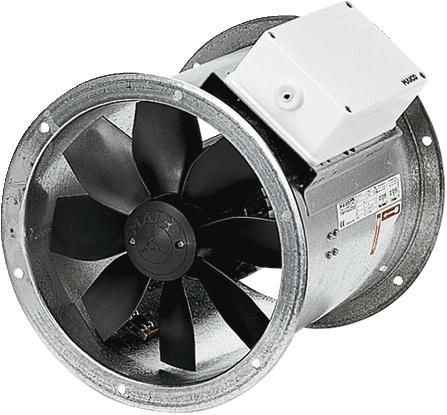

Maico 0086.0048 DZR 40/84 B Axial duct fan, DN 400 polumschaltbar

Pipe sleeve made of galvanized sheet steel, with flanges on both sides. 8-blade impellers made of glass fiber reinforced polyamide. Dynamically balanced in 2 planes, in accordance with quality level 6.3, DIN ISO 1940, Part 1. Flange holes in accordance with DIN EN 12220:1998. DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220:1998. To avoid vibration transmission to the pipe system: use elastic connecting pieces, feet and vibration dampers. High protection class IP 55. Exception EZR/DZR... D IP 55. Installation possible in any position. Motor: asynchronous motor, speed controllable. Exception: type DZR 40/2 B. Not suitable for conveying air saturated with water vapor. The conveying direction is marked on the device with a direction of rotation and conveying direction arrow. Reversing operation: The volume flow is reduced by approx. 35% if the conveying direction is abnormal. Three-phase motor: DZR series. Rated voltage 400 V, 50 Hz. Thermal overload protection as standard. Exception: Available on request for DZR 25/4 D and pole-changing axial tube fans. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25, or the control circuit of a contactor. Pole-changing fans: Ensure overload protection with a motor protection switch to be provided by the customer. Electrical connection: External terminal box with cable grommets. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: DZR 40/84 B, delivery volume: 2270 m3/h / 4540 m3/h, delivery volumeNominal: 1560 m3/h / 3320 m3/h / in opt. efficiency, pressure pfs, nominal: 25 Pa - 95 Pa - in opt. efficiency, speed nNominal: 710 1/min - 1420 1/min - in opt. efficiency, speed: 716 1/min / 1440 1/min, impeller type: axial, speed controllable: yes, reversible: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 45 W / 250 W / in opt. Efficiency, INom: 0.2 A / 0.55 A / im opt. Efficiency, IMax: 0.7 A, Protection class: IP 55, Thermal class: B, Pole-changing: yes, Number of poles at high speed: 4, Number of poles at low speed: 8, Mains cable: 5 / 1.5 mm2, Installation position: horizontal / vertical, Material: Sheet steel, galvanized, Weight: 14.51 kg, Nominal width: 400 mm, Width: 438 mm, Height: 438 mm, Depth: 370 mm, A: 413 mm, B: 370 mm, Conveyor temperature at rated current: 60 °C, Conveyor temperature at IMax: 60 °C, Overall efficiency e: 48.1%, Measurement category: D, Efficiency category: total, Efficiency grade N: 58.4, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official registration number / Manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / Discharge volumeBEP / Pfs, BEP: 0.23 kW / 3980 m3/h, nBEP: 1430 1/min, specific ratio: approx. 1, Information on dismantling and disposal: see assembly instructions,Information on installation, operation and maintenance: see installation instructions, Items used in the efficiency measurement that are not described by the measurement category: -, pf, BEP: 100 Pa, Sound power level LWA5: 59 dB(A) / 78 dB(A), DC motor: false
Type: DZR 40/84 B
