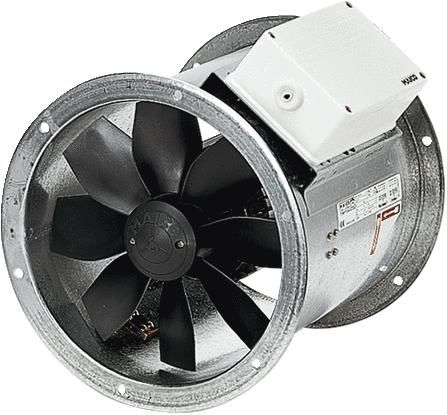

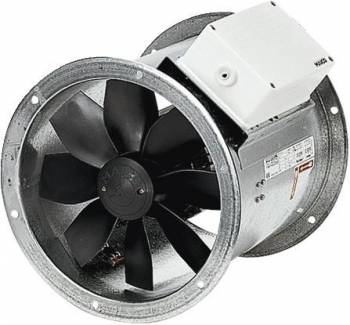

Pipe sleeve made of galvanized sheet steel, with flanges on both sides. 8-blade impellers made of glass fiber reinforced polyamide. Dynamically balanced in 2 planes, in accordance with quality level 6.3, DIN ISO 1940, Part 1. Flange holes in accordance with DIN EN 12220:1998. DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220:1998. To avoid vibration transmission to the pipe system: use elastic connecting pieces, feet and vibration dampers. High protection class
IP 55. Exception EZR/DZR... D
IP 55. Installation possible in any position. Motor: asynchronous motor, speed controllable. Exception: type DZR 40/2 B. Not suitable for conveying air saturated with water vapor. The conveying direction is marked on the device with a direction of rotation and conveying direction arrow. Reversing operation: The volume flow is reduced by approx. 35% if the conveying direction is abnormal. Three-phase motor: DZR series. Rated voltage 400 V, 50 Hz. Thermal overload protection as standard. Exception: Available on request for DZR 25/4 D and pole-changing axial tube fans. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25, or the control circuit of a contactor. Pole-changing fans: Ensure overload protection with a motor protection switch to be provided by the customer. Electrical connection: External terminal box with cable grommets. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: DZR 30/42 B, delivery volume: 1890 m3/h / 3870 m3/h, delivery volumeNominal: 1410 m3/h / 2730 m3/h / in opt. efficiency, pressure pfs, nominal: 40 Pa - 180 Pa - in opt. efficiency, speed nNominal: 1450 1/min - 2830 1/min - in opt. efficiency, speed: 1472 1/min / 2879 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 70 W / 405 W / in opt. Efficiency, INom: 0.3 A / 1 A / im opt. Efficiency, IMax: 1.2 A, Protection class:
IP 55, Thermal class: B, Pole-changing: yes, Number of poles at high speed: 2, Number of poles at low speed: 4, Mains cable: 5 / 1.5 mm2, Installation position: horizontal / vertical, Material: Sheet steel, galvanized, Weight: 11.61 kg, Nominal width: 300 mm, Width: 380 mm, Height: 424 mm, Depth: 300 mm, A: 313 mm, B: 300 mm, Conveyor temperature at nominal current: 60 °C, Conveyor temperature at IMax: -20 °C to 60 °C, Overall efficiency e: 49%, Measurement category: D, Efficiency category: total, Efficiency grade N: 58.2, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official registration number / Manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / delivery volumeBEP / Pfs, BEP: 0.361 kW / 3390 m3/h, nBEP: 2850 1/min, specific ratio: approx. 1, information on dismantling and disposal:see assembly instructions, Information on installation, operation and maintenance: see assembly instructions, Items used in the efficiency measurement that are not described by the measurement category: -, pf, BEP: 188 Pa, Sound power level LWA5: 67 dB(A) / 89 dB(A), DC motor: false
Type:
DZR30/42B
Questions & answers
What is the delivery time of Maico DZR 30/42 B axial pipe fan DN300 pole-changing 0086.0044?
The article Maico DZR 30/42 B axial pipe fan DN300 pole-changing 0086.0044 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0086.0044 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico DZR 30/42 B axial pipe fan DN300 pole-changing 0086.0044 always at the best possible price. We can give you a discount of 2% on
Maico DZR 30/42 B axial pipe fan DN300 pole-changing 0086.0044 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Maico DZR 30/42 B axial pipe fan DN300 pole-changing 0086.0044 we can offer you a price of 1.553,37 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Maico DZR 30/42 B axial pipe fan DN300 pole-changing 0086.0044 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
