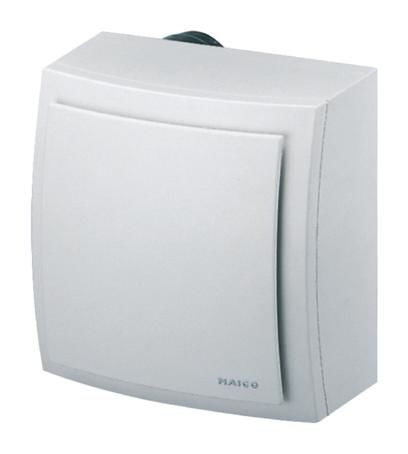

Maico-wall fan for ventilation, ER-230V 50Hz 31W AP100 IMax 0.15 A
|
438,90 EUR |
|||||||||||
|
( 522,29 EUR incl. VAT ) ≈ £377.45 | ≈ $499.03 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| End-Of-Life: | 29. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 631577 | ||||||||||
| Mfg Part No: | 0084.0170 | ||||||||||
| UPC/EAN: | 4012799841708 | ||||||||||
| Weight: | 2.48 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Maico 0084.0170:
MAICO exhaust systems according to DIN 18017-3
Surface
MAICO-Wall-pipe venting system
Series ER-AP
For venting internal bathrooms, toilets and kitchens on single exhaust systems with common main pipe according to DIN 18017-3, as well as for single vent. Approval no.
Z-51.1-42nd For wall or ceiling installation. Housing can be rotated, thereby connecting the blow-out top left or right of the main line.
Plastic construction traffic white RAL 9016. With automatic check valve in the exhaust vent. Fans in protection class IP 45 Protection class II VDE and GS tested. Motor with thermal overload protection. AC 230 V, 50 Hz
- Fans with IP 45 suitable for the installation of showers in the region I according to VDE 0100, part 701
- Fans with protection class IP 45 are used in the spraying of bathrooms and shower rooms.
Speed: 1850 min-1
Air flow volume: 100 m³ / h
Power consumption: 31 W
Impeller diameter: 132 mm
Type: ER-AP100
Quantity: 1 unit.
Type: ER-AP100
Surface
MAICO-Wall-pipe venting system
Series ER-AP
For venting internal bathrooms, toilets and kitchens on single exhaust systems with common main pipe according to DIN 18017-3, as well as for single vent. Approval no.
Z-51.1-42nd For wall or ceiling installation. Housing can be rotated, thereby connecting the blow-out top left or right of the main line.
Plastic construction traffic white RAL 9016. With automatic check valve in the exhaust vent. Fans in protection class IP 45 Protection class II VDE and GS tested. Motor with thermal overload protection. AC 230 V, 50 Hz
- Fans with IP 45 suitable for the installation of showers in the region I according to VDE 0100, part 701
- Fans with protection class IP 45 are used in the spraying of bathrooms and shower rooms.
Speed: 1850 min-1
Air flow volume: 100 m³ / h
Power consumption: 31 W
Impeller diameter: 132 mm
Type: ER-AP100
Quantity: 1 unit.
Type: ER-AP100
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Maico-wall fan for ventilation, ER-230V 50Hz 31W AP100 IMax 0.15 A?
The article Maico-wall fan for ventilation, ER-230V 50Hz 31W AP100 IMax 0.15 A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Maico 0084.0170 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico-wall fan for ventilation, ER-230V 50Hz 31W AP100 IMax 0.15 A always at the best possible price. We can give you a discount of 2% on Maico-wall fan for ventilation, ER-230V 50Hz 31W AP100 IMax 0.15 A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Maico-wall fan for ventilation, ER-230V 50Hz 31W AP100 IMax 0.15 A we can offer you a price of 422,44 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
