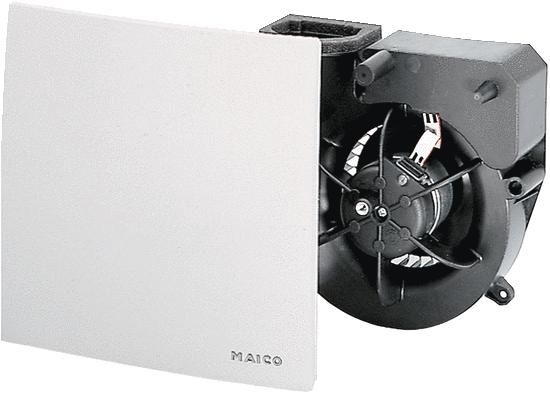

Maico 0084.0140 ER 100 VZ Fan insert 15, 101m3 / h m.Verzögerung 15min content_copy

Version with delay timer with 15 minute run-on: Switch-on delay approx. 50 sec. Run-on time approx. 15 min. Speed cannot be controlled. Fan with cover and ISO Coarse 30% (G2) filter for installation in flush-mounted housing ER-UP/G, ER-UPD and ER-UPB.... For one-room or two-room ventilation with a single fan (exception: version H). Easy filter change without tools. Cover can be rotated by +- 5°, allowing compensation if the housing is installed at an angle. Simple and quick installation of the fan in the housing using the snap-on fastening and the electrical plug connection. Color traffic white, similar to RAL 9016. All MAICO ER devices correspond to protection class IP X5 and can therefore be installed in area 1 according to DIN VDE 0100-701, even with water jets. See planning information for details. Protection class II. The extremely steep characteristic curve shows the high pressure capacity of the ER fans. Robust energy-saving capacitor motor. Motor with thermal overload protection. Maintenance-free, with ball bearings closed on both sides. Volume flow characteristic curve and leakage air rate tested by TÜV Bayern eV. Leakage air volume flow < 0.01 m3/h. Shaft level difference in accordance with DIN 52210-6, tested by IAB Oberursel. With VDE mark.Article: ER 100 VZ 15, Design: Delay timer 15 minutes run-on time, Delivery volume: 101 m3/h, Speed: 1900 1/min, Air direction: Ventilation, Speed controllable: no, SEC average: -6.5 kWh/(m2*a), Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz, Power consumption: 29.5 W, IMax: 0.14 A, Protection class: IP X5, Mains cable: 5 / 1.5 mm2, Installation location: Wall / ceiling, Installation type: Flush-mounted, System type: decentralized, Material: Plastic, Color: traffic white, similar to RAL 9016, Weight: 1.47 kg, Weight with packaging: 1.75 kg, Filter class: ISO Coarse 30% (G2), Blow-out direction: side, Width: 250 mm, Height: 250 mm, depth: 150 mm, width with packaging: 280 mm, height with packaging: 280 mm, depth with packaging: 155 mm, conveying medium temperature at IMax: 40 °C, run-on time: 15 min, switch-on delay: 50 s, sound pressure level: 45 dB(A) / specification according to DIN 18017-3 with an equivalent absorption area AL = 10 m2, nominal width: 75 mm / 80 mm
Type: ER 100 VZ 15
