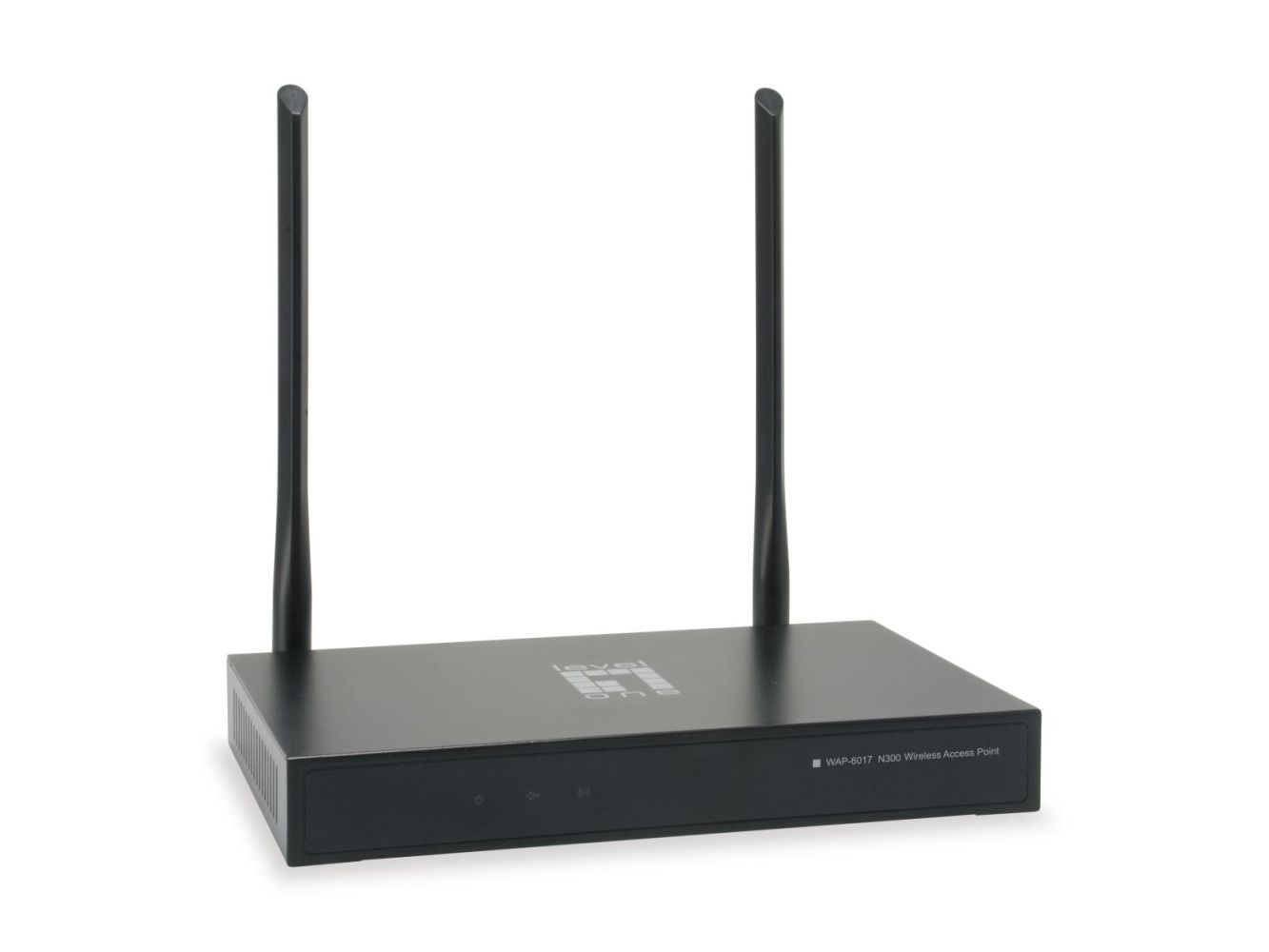

LevelOne WLAN AP WAP-6017 300Mbit 802.11 b/g/n Single Band
|
66,11 EUR |
|
|
( 78,67 EUR incl. VAT ) ≈ £55.33 | ≈ $73.71 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1007422 |
| Mfg Part No: | WAP-6017 |
| UPC/EAN: | 4015867200407 |
| Weight: | 1.165 kg |
| Antenna | |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Certificates | |
| Certification | CE |
| Design | |
| Placement | Table |
| Product colour | Black |
| WPS push button | |
| Internal | |
| Features | |
| Maximum data transfer rate | 300 Mbit/s |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Number of users | 40 user(s) |
| Channels quantity | 13 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Operating modes | Access Point (AP),Gateway,Repeater |
| Receiver sensitivity | 2.4GHz: 802.11n: (-68) dBm 802.11g:6Mbps: (-90) dBm 802.11g:54Mbps: (-72) dBm 802.11b:1Mbps: (-95) dBm 802.11b:11Mbps: (-90) dBm |
| 2.4 GHz | |
| 5 GHz | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| Quality of Service (QoS) support | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Master (outer) case width | 26 mm |
| Master (outer) case length | 655 mm |
| Master (outer) case height | 233 mm |
| Master (outer) case gross weight | 23 kg |
| Products per master (outer) case | 20 pc(s) |
| Management features | |
| Web-based management | |
| Firmware upgradeable | |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Packaging data | |
| Package width | 217 mm |
| Package depth | 260 mm |
| Package height | 50 mm |
| Package weight | 1.1 kg |
| Package type | Box |
| CD manual | |

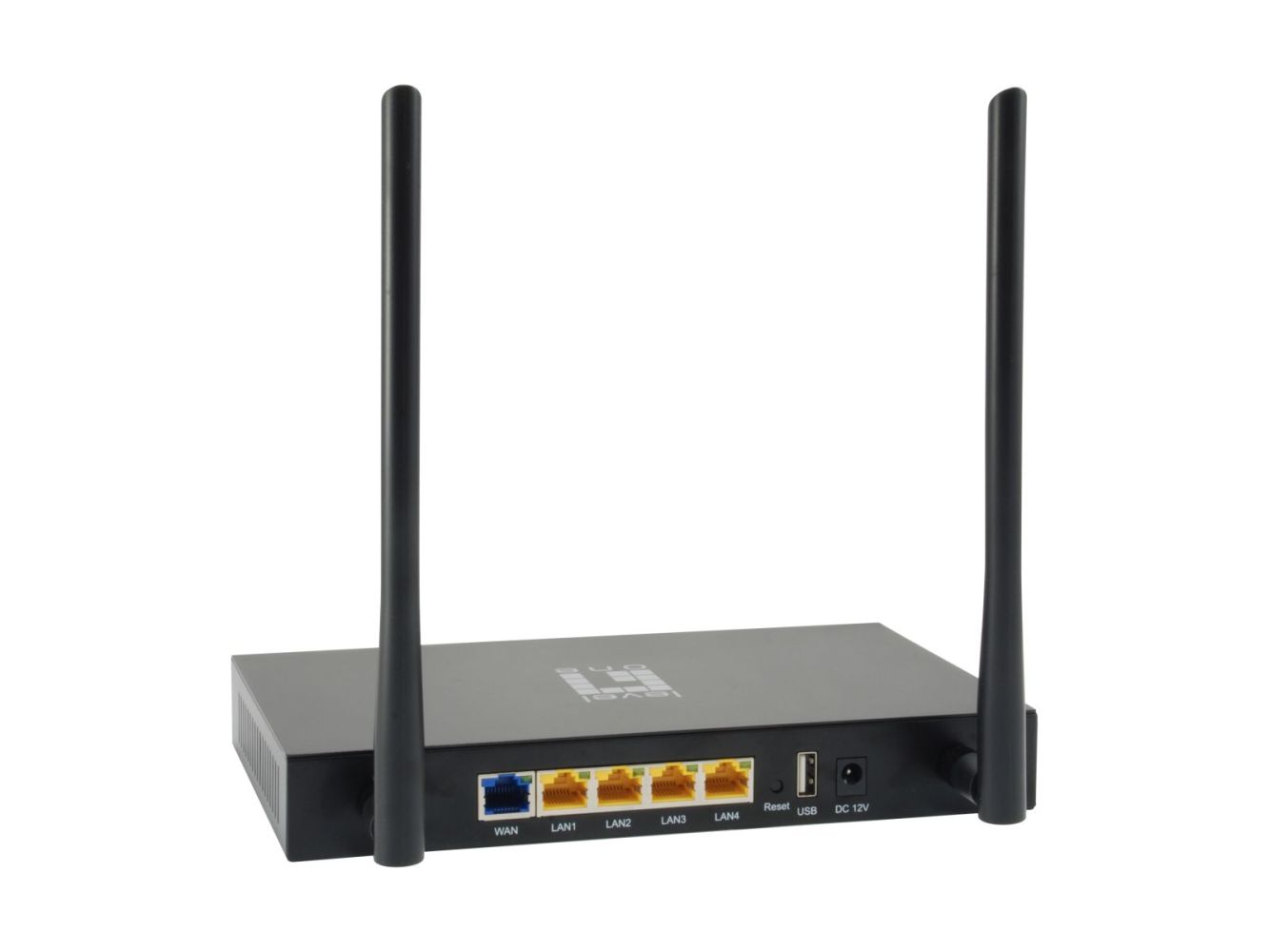

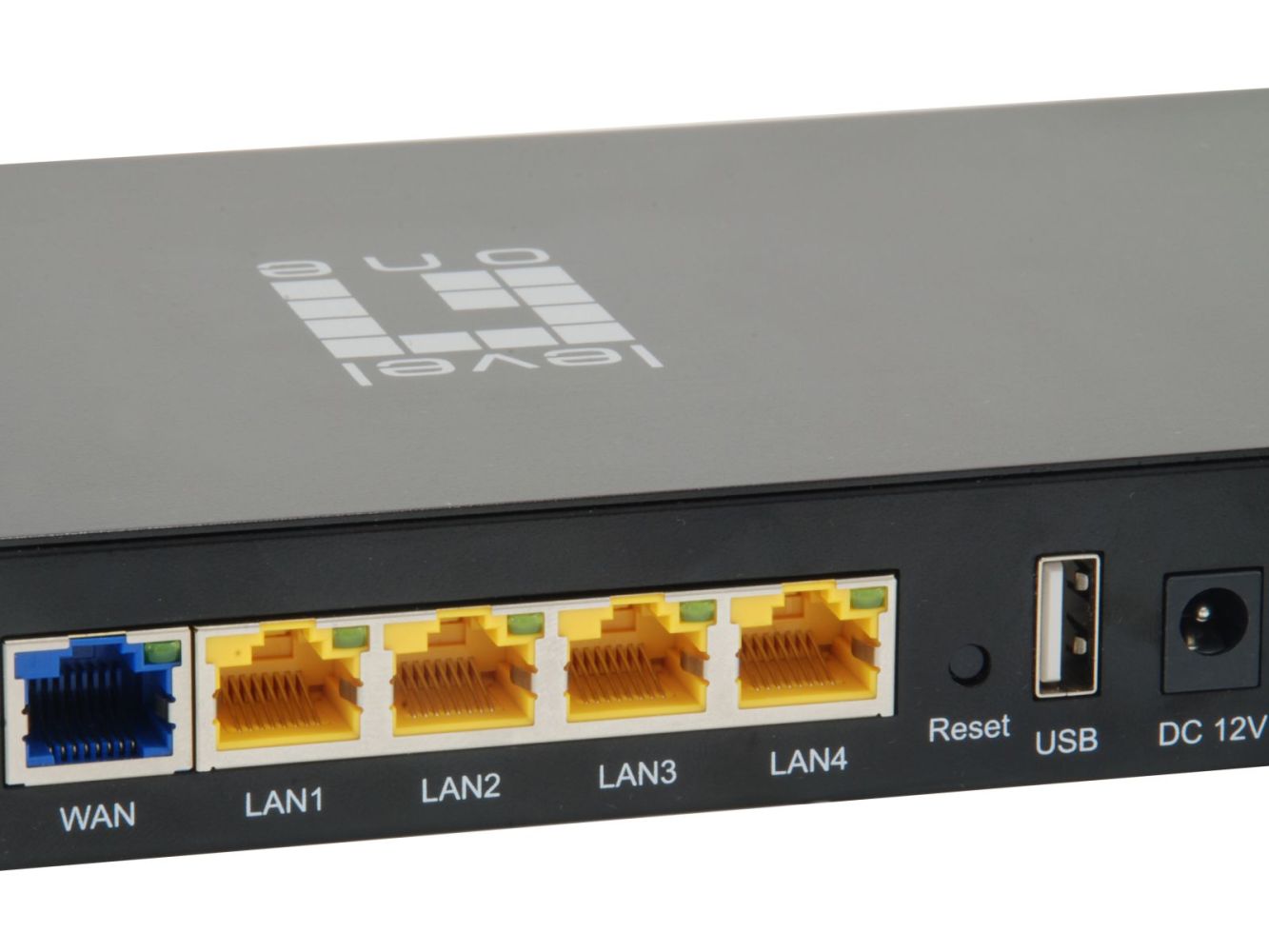

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | |
| Power | |
| AC input voltage | 12 V |
| Input current | 1.5 A |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, AES, TKIP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-TKIP |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Number of SSID supported | 4 |
| Weight & dimensions | |
| Width | 135 mm |
| Depth | 220 mm |
| Height | 30 mm |
| Weight | 700 g |
Questions & answers
What is the delivery time of LevelOne WLAN AP WAP-6017 300Mbit 802.11 b/g/n Single Band?
The article LevelOne WLAN AP WAP-6017 300Mbit 802.11 b/g/n Single Band is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WAP-6017 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne WLAN AP WAP-6017 300Mbit 802.11 b/g/n Single Band always at the best possible price. We can give you a discount of 2% on LevelOne WLAN AP WAP-6017 300Mbit 802.11 b/g/n Single Band if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
