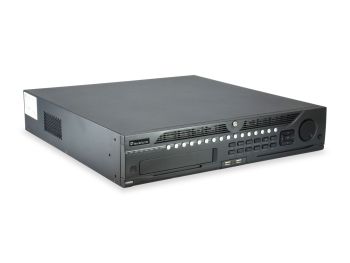

LevelOne Network Video Recorder GEMINI 64-channel HDMI VGA
|
2.502,49 EUR |
|
|
( 2.977,96 EUR incl. VAT ) ≈ £2,094.58 | ≈ $2,800.29 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 309960 |
| Mfg Part No: | NVR-0764 |
| UPC/EAN: | 4015867236697 |
| Weight: | 0 kg |
| Features | |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE,FCC,UL |
| Rack mounting | |
| On/off switch | |
| Hard drive | |
| HDD capacity | 0 GB |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 80 TB |
| HDD size | 3.5" |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Logistics data | |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 180 mm |
| Master (outer) case height | 510 mm |
| Master (outer) case gross weight | 12.7 kg |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| CD manual | |
| Performance | |
| Video input channels | 64 channels |
| Alarm input channels | 4 |
| Alarm output channels | 16 |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Number of users | 128 user(s) |
| Video formats supported | H.264, H.264+, H.265, MPEG4 |
| Operating system installed | Embedded LINUX |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 256 Mbit/s |
| On Screen Display (OSD) | |
| PTZ control | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA outputs | 2 |
| RS-485 ports | 1 |
| Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,RTSP, SNMP, FTP |
| RS-232 interface | |
| eSATA | |
| Line-in | |
| Power | |
| Power consumption (max) | 200 W |
| AC input voltage | 100 - 240 V |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 470 mm |
| Depth | 90 mm |
| Height | 445 mm |
| Weight | 10 kg |
| Package width | 510 mm |
| Package depth | 110 mm |
| Package height | 450 mm |
| Package type | Box |
| Package weight | 12 kg |
| Wireless LAN features | |
| Wi-Fi | |
Questions & answers
What is the delivery time of LevelOne Network Video Recorder GEMINI 64-channel HDMI VGA?
The article LevelOne Network Video Recorder GEMINI 64-channel HDMI VGA is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne NVR-0764 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Network Video Recorder GEMINI 64-channel HDMI VGA always at the best possible price. We can give you a discount of 2% on LevelOne Network Video Recorder GEMINI 64-channel HDMI VGA if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
