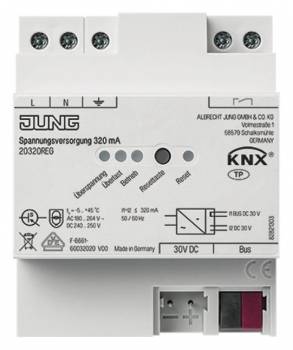

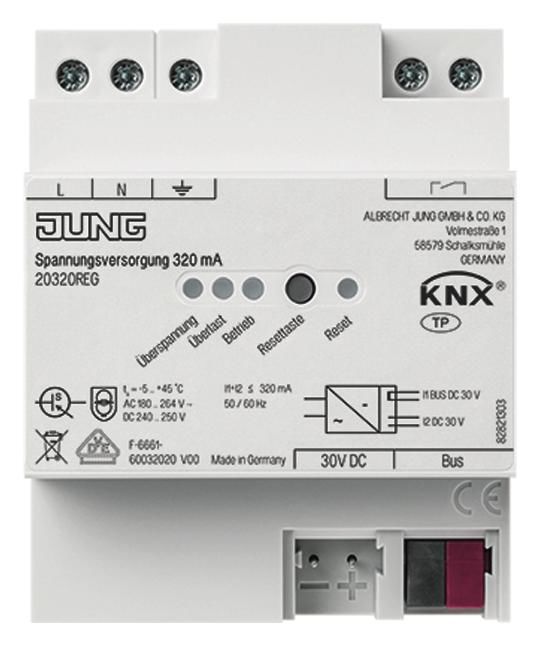

Jung 20320REG KNX power supply 320mA
|
187,76 EUR 195,66 EUR |
|||||||||||
|
( 223,43 EUR incl. VAT ) ≈ £160.91 | ≈ $216.68 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 1 pieces | |||||||||||
| Lieske Part No.: | 1347664 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 20320REG | ||||||||||
| UPC/EAN: | 4011377159037 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG 20320REG:
Supply of KNX devices with bus voltage
Supply of devices with direct current
Installation on top hat rail in accordance with DIN EN 60715 in sub-distribution boards
Product features
Output with integrated choke for supplying KNX bus lines
DC 30 V output for supplying additional devices Nominal
current can be divided between outputs as required
Reset button Short-
circuit proof
Overvoltage proof
Idle-run safe
Suitable for operation in systems with emergency power supply
Potential-free signal contact for operating and diagnostic messages
Can be connected in parallel with an identical KNX power supply (until the maximum short-circuit current is reached)
Nominal voltage: AC 200 ... 240 V ~
Mains frequency: 50/60 Hz
Power loss (max. load of all outputs): max. 1.8 W
Efficiency: approx. 84%
Nominal voltage: DC 240 ... 250 V
KNX
KNX medium: TP 256
Output voltage bus: DC 28 ... 31 V SELV
Output current: 320 mA (all outputs)
Short-circuit current: max. 1 A
Parallel operation with identical power supply: yes
Signal output
AC switching voltage: AC 12 ... 230 V ~
DC switching voltage: DC 2 ... 30 V
Switching current: 5 mA ... 2 A
Ambient temperature: ?5 ... +45 °C
Storage/transport temperature: ?25 ... +75 °C
Relative humidity: max. 93 % (no condensation)
Installation width: 72 mm (4 HP)
Type: 20320REG
Questions & answers
What is the delivery time of Jung 20320REG KNX power supply 320mA?
The article Jung 20320REG KNX power supply 320mA is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG 20320REG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung 20320REG KNX power supply 320mA always at the best possible price. We can give you a discount of 2% on Jung 20320REG KNX power supply 320mA if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Jung 20320REG KNX power supply 320mA we can offer you a price of 186,35 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
