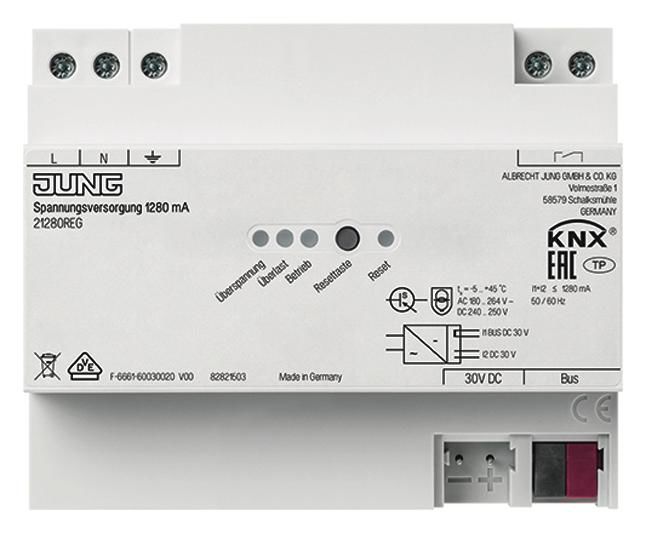

Jung 21280REG KNX power supply 1280 mA
|
343,46 EUR 357,92 EUR |
|||||||||||
|
( 408,72 EUR incl. VAT ) ≈ £294.35 | ≈ $396.35 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 4 pieces | |||||||||||
| Lieske Part No.: | 1347692 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 21280REG | ||||||||||
| UPC/EAN: | 4011377159068 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG 21280REG:
Supply of KNX devices with bus voltage
Supply of devices with direct current
Installation on top hat rail in accordance with DIN EN 60715 in sub-distribution boards
Product properties
Output with integrated choke for supplying KNX bus lines
DC 30 V output for supplying additional devices Nominal
current can be divided between outputs as required
Reset button Short-
circuit proof
Overvoltage proof
Idle-run proof
Suitable for operation in systems with emergency power supply
Potential-free signaling contact for operating and diagnostic messages
Nominal voltage: AC 200 ... 240 V ~
Mains frequency: 50/60 Hz
Power loss (max. load of all outputs): max. 6.4 W
Efficiency: approx. 86%
Nominal voltage: DC 240 ... 250 V
KNX
KNX medium: TP 256
Output voltage bus: DC 28 ... 31 V SELV
Output current: 1,280 mA (all outputs)
Short-circuit current: max. 3 A
Parallel operation with identical power supply: no
Signaling output
switching voltage AC: AC 12 ... 230 V ~
Switching voltage DC: DC 2 ... 30 V
Switching current: 5 mA ... 2 A
Ambient temperature: ?5 ... +45 °C
Storage/transport temperature: ?25 ... +75 °C
Relative humidity: max. 93 % (no condensation)
Installation width: 108 mm (6 HP)
Type: 21280REG
Questions & answers
What is the delivery time of Jung 21280REG KNX power supply 1280 mA?
The article Jung 21280REG KNX power supply 1280 mA is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG 21280REG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung 21280REG KNX power supply 1280 mA always at the best possible price. We can give you a discount of 2% on Jung 21280REG KNX power supply 1280 mA if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Jung 21280REG KNX power supply 1280 mA we can offer you a price of 340,88 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
