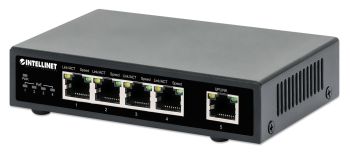

INTELLINET 561839
5-Port Gigabit Ethernet PoE+ Switch Four PSE PoE ports, IEEE 802.3at/af (PoE+/PoE) compliant, PoE power budget 62W, desktop format
|
75,41 EUR |
|
|
( 89,74 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 1975429 |
|---|---|
| Mfg Part No: | 561839 |
| UPC/EAN: | 766623561839 |
| Weight: | 0.59 kg |
Product information for INTELLINET 561839:
The 5-port Gigabit Ethernet PoE+ switch from Intellinet Network Solutions delivers data and Power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with five Gigabit Ethernet ports – four of which have high-power PoE+ PSE ports — This switch can power WLAN access points, bridges, VoIP phones, IP cameras and more and deliver network speeds of up to 1000 Mbit/s.
High-power PoE+ with up to 30 watts of output power per port
This switch supports the IEEE 802.3at protocol, which allows up to 30W output power per port. IEEE802.3af or IEEE802.3at compliant devices connected to the switch do not require additional power supply, saving time and money on electrical installations. In addition, power supplies and separate power cables, which cause unsightly tangles of cables, especially when installing end devices on ceilings and walls, are no longer necessary. Any combination of PoE and non-PoE devices is supported; The PoE protection function against short circuits, overcharging and overvoltage protects your network equipment.
- Power and data connection for up to four PoE network devices
- Includes a 10/ 100/1000 RJ45 uplink port
- PoE power budget 62 watts
- Output power up to 30 watts per port
- Saves time and installation costs by transmitting data and power over existing network cables
- Supports IEEE 802.3at and IEEE 802.3af compliant PoE -Devices (Wireless Access Points, VoIP Phones, IP Cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and overvoltage protection
- 10 Gbit/s switching capacity
- 10/100/1000 auto-sensing ports automatically detect the optimal network speed
- Auto-MDI-X and NWay auto-negotiation on all RJ45 ports
- Store-and-forward architecture
- IEEE 802.3x flow control for full duplex
- Supports 2,000 MAC address entries
- Compact desktop format with robust metal housing
- Ground point to protect against external electrical surges
- Fan-free design for quiet operation
- Desktop metal housing
- Fully NDAA compliant
- 3 year warranty Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3af (Power over Ethernet 802.3at Type 1)
- IEEE 802.3at (Power over Ethernet 802.3at Type 2)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Flow Control for Full Duplex Mode) General
- Supported Media:
- 10Base-T Cat5e UTP/STP RJ45, 8-pin.
- 100Base-TX Cat5e UTP/STP RJ45, 8-pin.
- 1000Base-T Cat5e UTP/STP RJ45, 8-pin.
- Packet Filter/Forwarding Rate:
- 1,488,000 pps (1000 Mbit/s)
- 148,800 pps (100 Mbit/s)
- 14,880 pps (10 Mbit/s)
- MAC address entries: 2000
- Switching capacity: 10 Gbit/s
- Switch architecture: Store and Forward
- Certificates: FCC Class A, CE, RoHS LEDs
- Power
- Connection/Activity
- PoE Pinout RJ45 output ports
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3 : DC (-)
- Pin 6: DC (-) power
- Power supply included:
- Input: 100.0 - 240.0 VAC, 50 - 60 Hz, 2.0 A
- Output: DC, 48.0 V, 2, 0 A
- PoE power budget: 62.0 watts (max.)
- Power consumption: 65.0 watts (max.) Physical details
- Metal housing
- Dimensions (L x W x H): 86 x 130 x 29 mm
- Net weight: 770 g
- Gross weight: 850 g
- Ambient temperature during operation: 0 - 40°C
- Ambient temperature during storage: -10 - 70°C
- Humidity during operation: 20 - 85% RH, non-condensing
- Humidity during storage: 5 - 90% RH , non-condensing Scope of delivery
- 5-port Gigabit Ethernet PoE+ switch
- power supply
- power cable
- quick guide Color: Black Product dimensions: 86 (L) x 130 (W) x 29 (H) [mm]
