Intellinet 561259

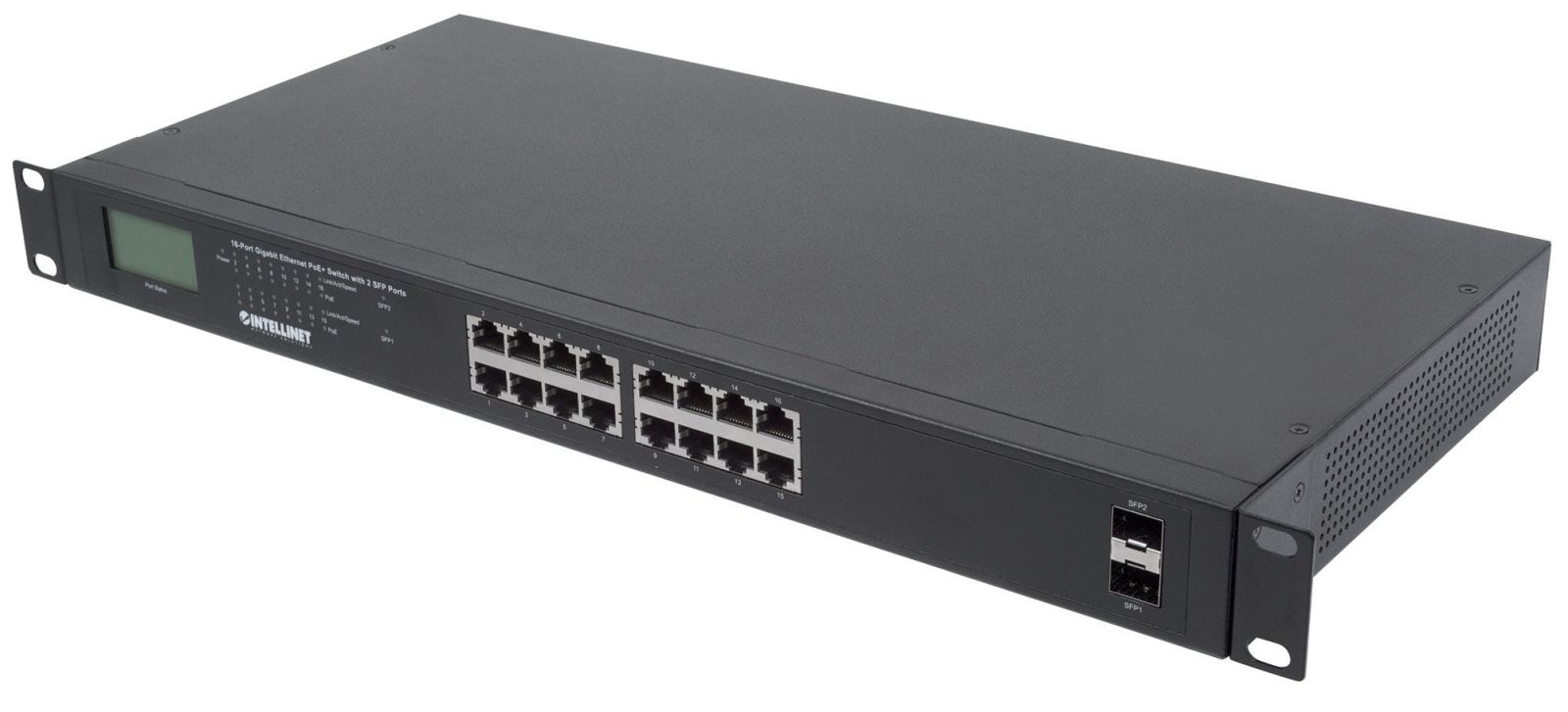

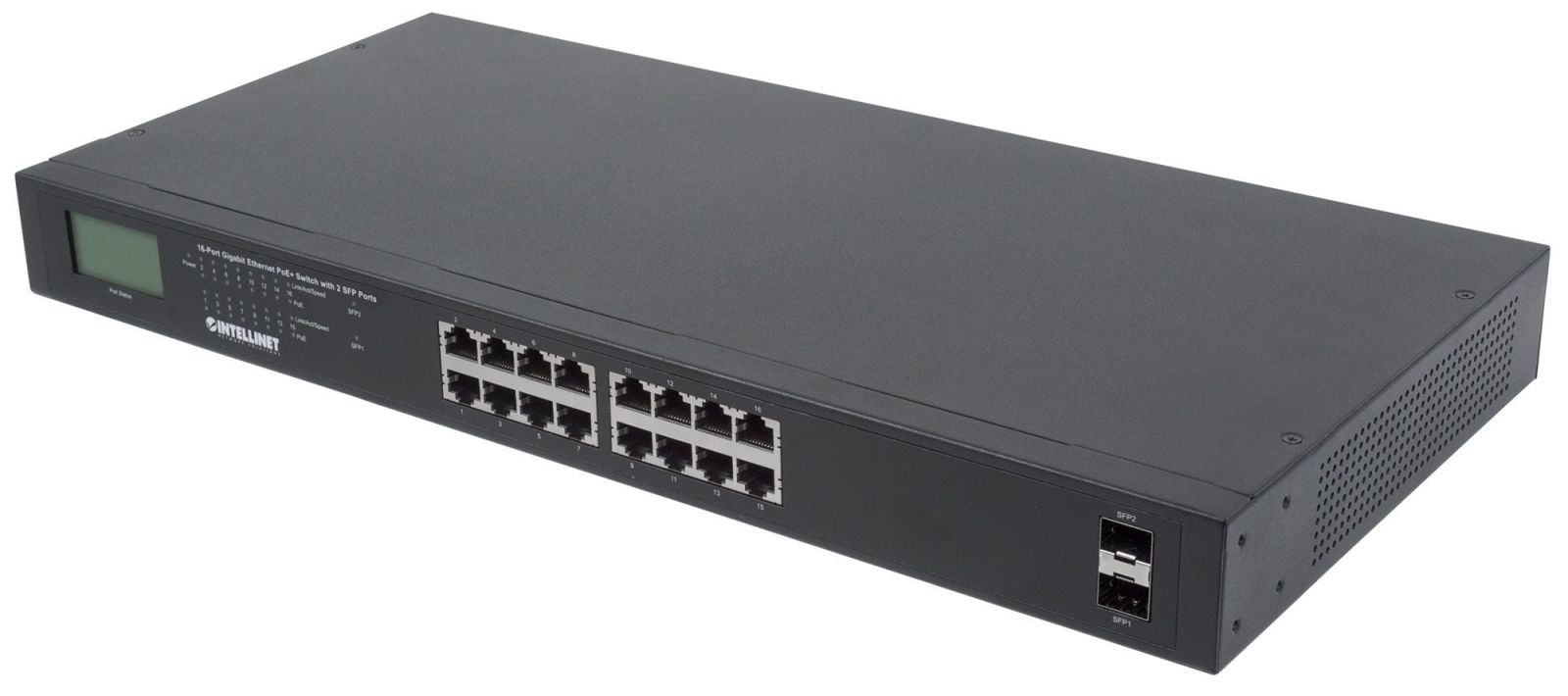

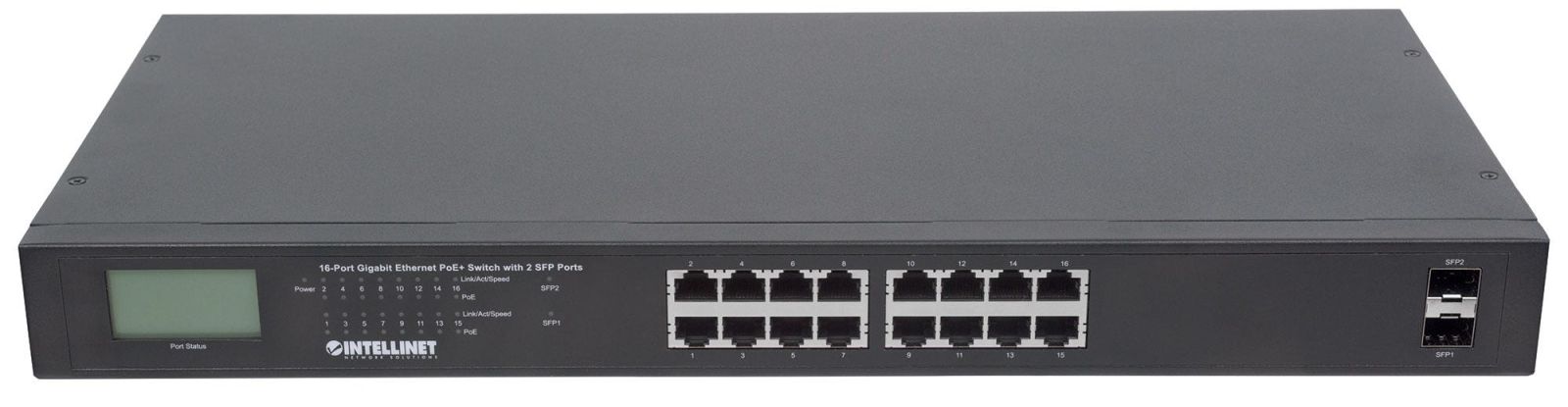

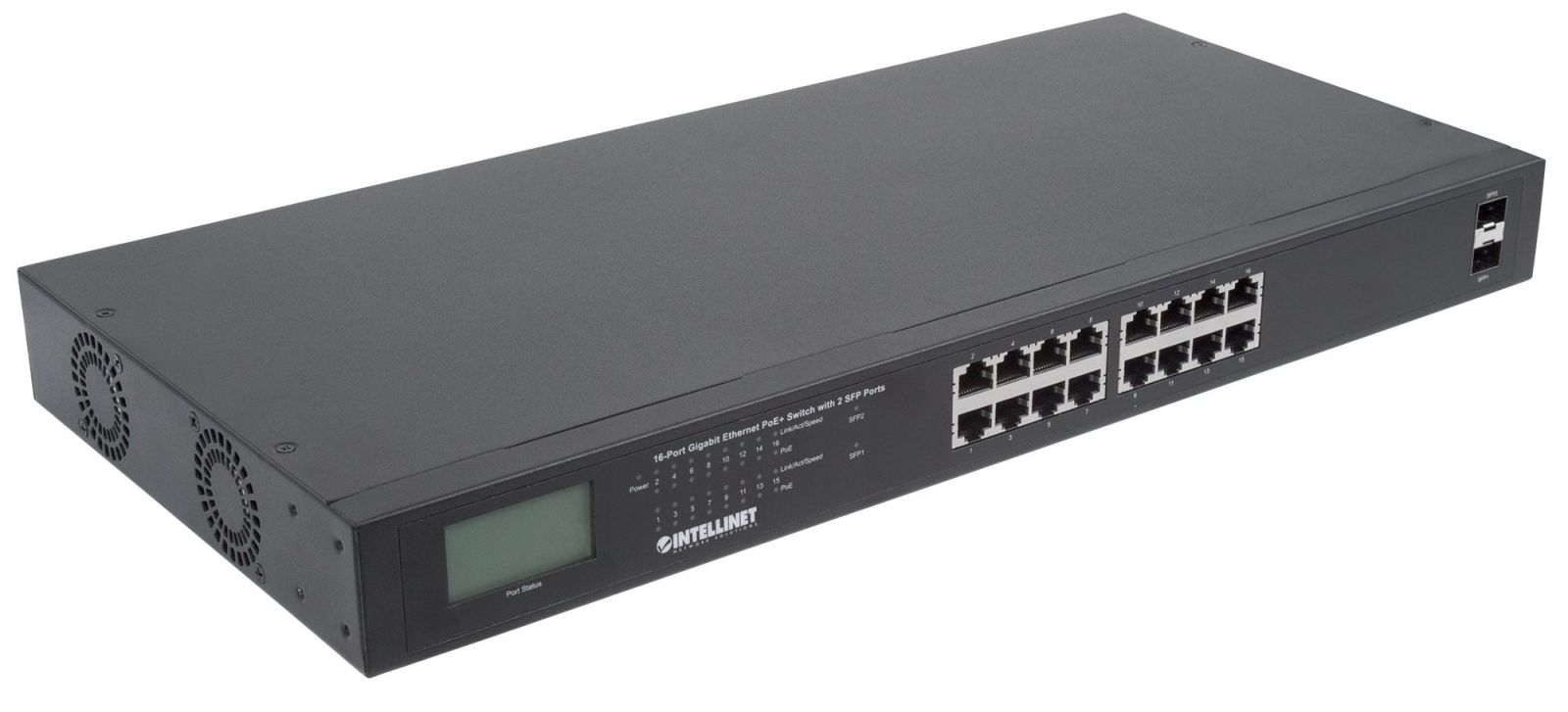

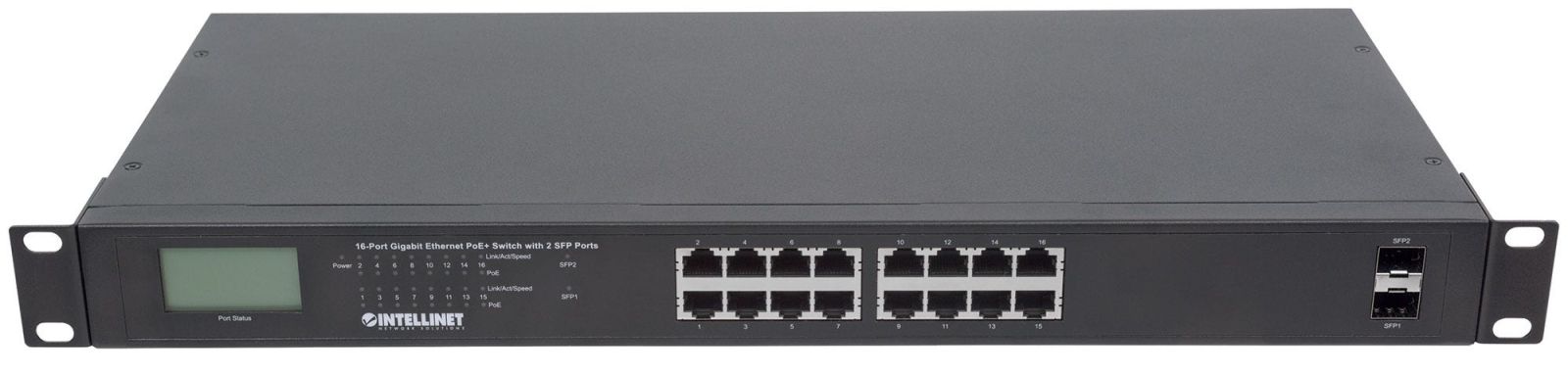

16-port Gigabit Ethernet PoE+ switch with 2 SFP ports and LCD display LCD display, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) compliant, 370 W, end span, 48,3 cm ( 19 inch ) rackmount
|
380,28 EUR |
|
|
( 452,53 EUR incl. VAT ) ≈ £320.19 | ≈ $427.05 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| End-Of-Life: | 13. May 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1150876 |
| Mfg Part No: | 561259 |
| UPC/EAN: | 766623561259 |
| Weight: | 3 kg |
Further up to 16 ports from IntellinetFurther products in category up to 16 ports
All products of Intellinet
Product information for Intellinet 561259:

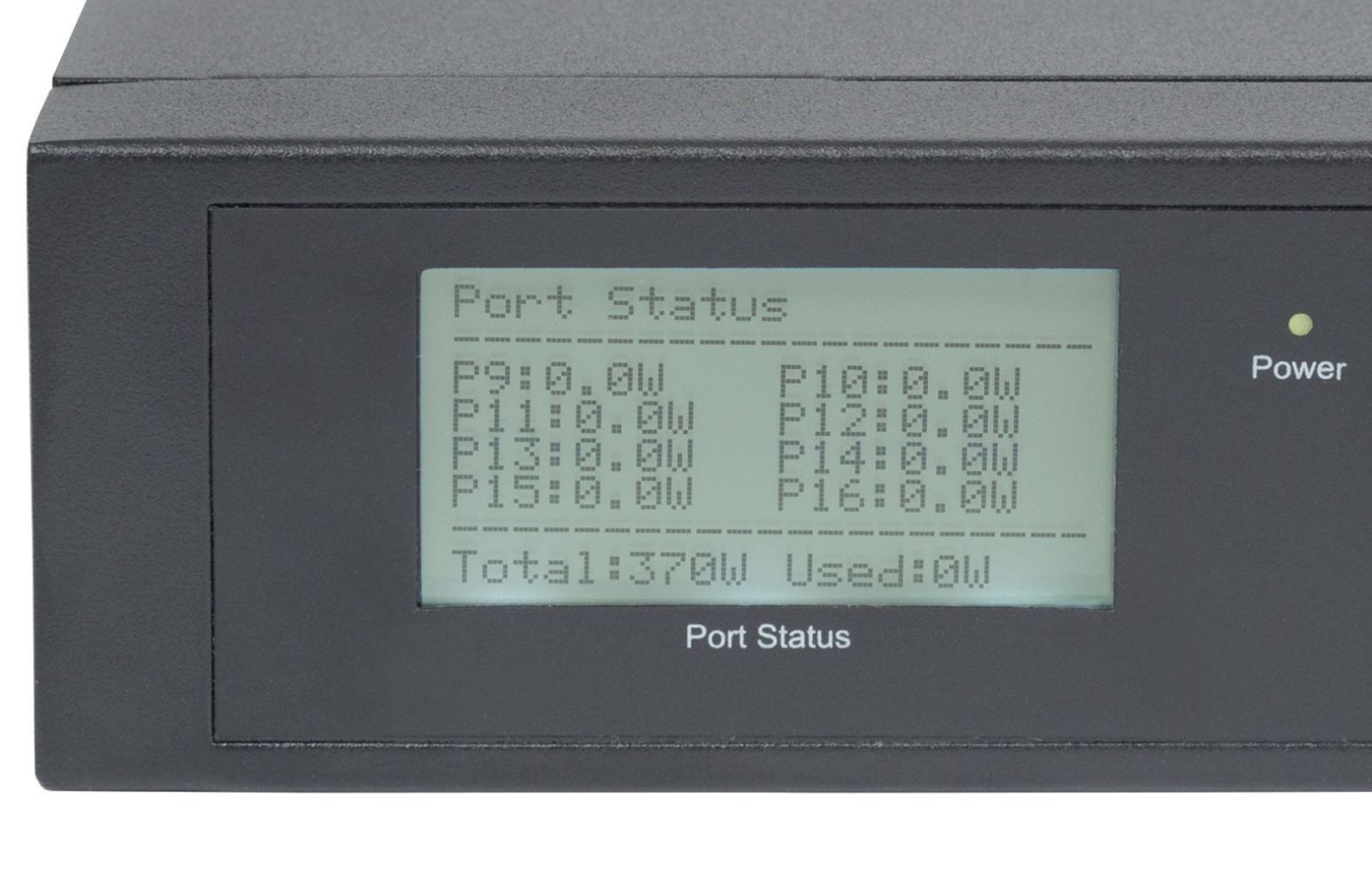

This 16-port Gigabit Ethernet PoE+ switch with 2 SFP ports from Intellinet Network Solutions is equipped with a front panel LCD display that provides real-time PoE power information. This includes the power consumption per connected PoE device, the total power consumption of all PoE devices and the remaining PoE power budget. In addition, the display warns of potential for overcharging, overheating and short circuit. Ideal for security applications with multiple PoE cameras and much more - Power and data connection for up to 16 PoE network devices
- Saves time and installation costs by transmitting data and power over the existing network cables
- 10/100/1000 Auto -Sensing ports automatically detect the optimal network speed
- LCD display for easy real-time PoE status control
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ outputs
- Output power up to 30 watts per port*
- PoE power budget 370 watts
- Two GBIC -Module slots (SFP)
- Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overcharge protection and overvoltage
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- The power-saving Green Ethernet technology deactivates unused ports and adjusts the energy level according to the cable length
- All RJ45 ports support Auto-MDIX (Auto Uplink)
- 36 Gbit /s switching capacity
- Store-and-forward architecture
- IEEE 802.3x flow control at full duplex
- Supports up to 8192 MAC addresses
- 512 Kbytes of buffer memory
- Two high-performance fans ensure perfect cooling and air circulation
- 48,3 cm ( 19 inch ) mounting bracket included
- Fully NDAA Compliant
- 3 Year Warranty Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3af (Power over Ethernet 802.3at Type 1)
- IEEE 802.3at (Power over Ethernet 802.3 at Type 2)
- IEEE 802.3az (Energy Efficient Ethernet EEE)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (flow control for full duplex mode) General:
- Supported media:
- 100Base-TX Cat5 UTP/STP RJ45
- 1000Base-T Cat5e UTP/STP RJ45
- Packet Filter/Forwarding Rate:
- 1,488,000 pps (1,000 Mbps)
- 148,800 pps (100 bps))
- 14,880 pps (10 Mbps))
- MAC address table: 8192 entries
- Cache: 512 KByte
- Backplane speed: 36 Gbit/s
- Store-and-forward architecture
- MTBF: 144,000 hours
- Display:
- Type: LCD
- Resolution: 128 x 64 pixels
- Display area: 43 mm x 23 mm
- Cooling
- 2 x fans
- Air flow: 6.76 CFM
- Pin assignment RJ45 output ports (data + power)
- IEEE Alternative A
- Pin 1: Vport [+]
- Pin 2: Vport [+]
- Pin 3: Vport [-]
- Pin 4: Not used
- Pin 5: Not used
- Pin 6: Vport [-]
- Pin 7: Not used
- Pin 8: Not used
- Certificates: FCC Class A, CE, RoHS LEDs
- Power
- PoE
- Link/Activity/Speed power
- Input: 100 - 240 V AC, 50 - 60 Hz
- Power consumption: 420 watts (max.) Physical specifications
- Metal housing
- Dimensions (L x W x H): 208 x 440 x 45 mm
- Net weight: 3 kg
- Gross weight: 3.77 kg Environment
- Operating temperature: 0 - 45° C
- Humidity: 10% - 90% RH , non-condensing
- Storage temperature: -10 - 70°C Scope of delivery
- 16-port Gigabit Ethernet PoE+ switch with 2 SFP ports
- Power cable
- Manual
- 48,3 cm ( 19 inch ) mounting bracket Color: Black Product dimensions: 208 (L) x 440 (W) x 45 (H) [mm]
| Certificates | |
| Certification | FCC A, CE, RoHS |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| MAC address table | 8192 entries |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.5 MB |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-sensing | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Rack mount kit | |
| Performance | |
| Noise level | 21.3 dB |
| Mean time between failures (MTBF) | 144000 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 420 W |
| Power protection features | Over voltage, Overload, Short circuit |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 441.1 mm |
| Depth | 204.3 mm |
| Height | 44 mm |
| Weight | 4 kg |
