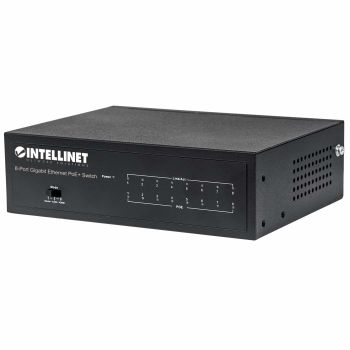

Intellinet 561204
8-Port Gigabit Ethernet PoE+ Switch IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60W, Desktop content_copy

Save installation costs and time thanks to PoE
The 8-Port Gigabit Ethernet PoE+ Switch from Intellinet Network Solutions is an excellent solution for transferring data and power to PoE -compatible devices via Cat5e or Cat6 network cable. Equipped with eight Gigabit ports, this switch provides power to access points and bridges, VoIP phones, IP cameras and much more, while simultaneously delivering transfer speeds up to 1000 Mbps.
< >Power over Ethernet 802.3at
This switch supports the IEEE 802.3at protocol, delivering up to 31.5 watts of power per port*. IEEE802.3af or IEEE802.3at compatible devices connected to the switch do not require additional power supply, saving significant cost and time on laying power lines and a lot of clutter of cables and adapters Exposed areas such as walls and ceilings are no longer required. Any combination of PoE and non-PoE devices is supported and your equipment is well protected thanks to protection against short circuits, overloads and surges. For devices that do not support the 802.3at/af standard (older access points or network cameras), we recommend using an Intellinet PoE/PoE+ splitter.
Private VLAN< /h3>
This switch provides port isolation, also known as Private VLAN. This feature isolates all ports from each other and allows access to the uplink port. This is e.g. This is useful, for example, in hotels where every room has a network connection for Internet access. All ports can access the Internet, but not other users. Setup is easy: press the VLAN switch on the front of the switch and the VLAN is activated - secure port isolation at the touch of a button!
Green Ethernet technology
A network switch rarely uses all ports at once. When a PC, notebook, network printer or other device is turned off, the switch uses the same amount of power as if these devices were active. Thanks to the new technology IEEE 802.3az, also called Green Ethernet, the Intellinet Switch detects the connection status of all connected devices and reduces the power consumption of the ports that are not currently in use. Additionally, it can adjust the output power based on the length of the network cable connected to a specific port.All of this ensures maximum network efficiency and saves you money.

• The total PoE budget is 60 watts. The average power allocation per port is 7.5 watts, the maximum power allocation cannot exceed 30 watts. - Power and data connection for up to eight PoE network devices
• Saves installation costs by transmitting data and power via the existing network cables
• 10/100/1000 auto-sensing ports automatically detect the optimal network speed
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ outputs
• Offers private VLAN functionality (port isolation)
• The energy-saving Green Ethernet technology is deactivated unused ports and adjusts the power level according to the cable length
• PoE power budget 60 watts
• Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/ AF detection as well as protection against short circuit, overload and overvoltage
• All RJ45 ports support Auto-MDIX (Auto Uplink)
• Store-and-forward architecture
• 16 Gbit/s switching capacity
• IEEE 802.3x flow control at full duplex
• Supported up to 4096 MAC address entries
• 1.5 MB buffer - Fan
-free design for quiet operation

• Desktop metal housing
• Fully NDAA compliant
• 3 year warranty Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet )
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, in full duplex mode)
General

• Supported media
• 10Base-T Cat3, 4, 5 UTP/STP RJ45
• 100Base-TX Cat5 UTP/STP RJ45
• 1000Base-T Cat5e UTP/STP RJ45
• Packet Filter/Forwarding Rate:
• 1,488,000 pps (1,000 Mbps)
• 148,800 pps (100 bps))
• 14,880 pps (10 Mbps))
• MAC address table: 4096 entries
• Cache: 1.5 MB
• Backplane speed / switch fabric: 16 Gbit/s
• Store-and-forward architecture
• Port isolation / private VLAN: Switchable via button on the front panel
• Pin assignment RJ45 output ports (data + power)
• IEEE Alternative A
• Pin 1: Rx (data reception) + Vport [ +]
• Pin 2: Rx (data reception) + Vport [+]
• Pin 3: Tx (data transmission) + Vport [-]
• Pin 4: Not used
• Pin 5: Not used
• Pin 6: Tx (data transmission) + Vport [- ]
• Pin 7: Not used
• Pin 8: Not used
• Certificates: FCC Class B, CE, RoHS
LEDs

• PoE
• Power
• Link/Activity
power

• Power supply included:
• Input: 100.0 - 240.0 VAC, 50 - 60 Hz
• Output: DC, 53.5 V, 1.2 A, 62.4 W (max.)
• Power consumption: 67.3 W (max.)
General

• Metal housing
• Dimensions: 118 (L) x 155 (W) x 46 (H) mm
• Weight: 0.93 kg
• Operating temperature: -10 - 40°C
• Humidity: 10 - 90% RH, non-condensing
Scope of delivery

• 8-port Gigabit PoE+ switch
• power supply
• power cable
• manual color : Black Product dimensions: 155 (L) x 117.2 (W) x 46 (H) [mm]
