Intellinet 530378
5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100/1000Base-T content_copy

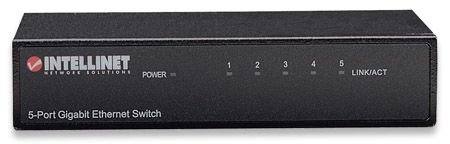

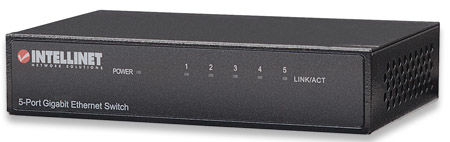

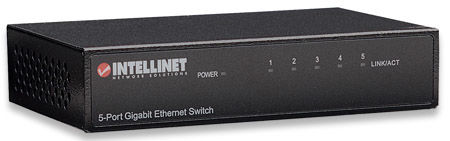

Gigabit Ethernet Desktop Switch This switch has five Gigabit ports and is equipped with self-learning through its system easy to install. The INTELLINET NETWORK SOLUTIONS Gigabit Ethernet Desktop Switch is perfect for home and small office applications, and its high speed all the network requirements are met. The metal housing provides excellent protection and compact design also allows installation on the desk. High-speed performance The desktop switch with five Gigabit Ethernet ports provides high performance for fast data transfer so disk mirroring, backup, transfer of large image data and other to support bandwidth-intensive applications. Autofeatures This switch contains many automatic features to use as simple as possible. For Plug and Play installation no configuration is needed. Auto-MDIX on all ports by detecting no more crossover cables are required. Each of the five ports automatically senses the link speed of the connected device and sets it to 10, 100 or 1000 Mbps in order to obtain maximum performance. reliable use of Gigabit Ethernet Desktop Switch supports for a continuous and uninterrupted network connection flow control in half duplex mode and IEEE 802.3ab in full-duplex mode. This, in conjunction with Broadcast Storm Control, ensures even at high load for a secure connection.














Warranty
All INTELLINET NETWORK SOLUTIONS products are subject to strict quality control and therefore have a warranty of 10 years. - 10/100/1000 auto-sensing Auto MDI-X ports. automatic detection of the optimal network speed

• High performance, full-and half-duplex with Zero Packet Loss
• Flow Control for optimum performance
• Automatic network configuration
• Supports up to 8192 MAC addresses
• 128 KB cache
• Supports jumbo frames up to 9 KB
• Store and Forward switch architecture
• non-blocking wire-speed forwarding and filtering
- 3 years warranty standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3x (Flow Control and Back Pressure)

Generally

• ANSI / IEEE 802.3 Nway auto-negotiation
• Non-blocking, store and forward switching architecture
• Back pressure flow control for half-duplex

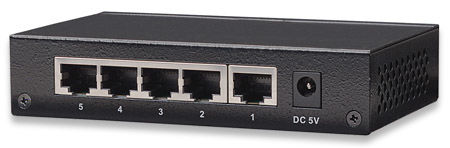

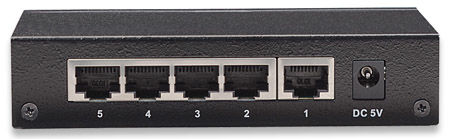

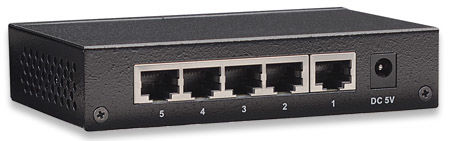

• Connections: 5 RJ-45 10/100/1000 Mbps ports
• Switch architecture: store and forward switch technology
• Network Cables :
• 10Base-T Cat3, 4, 5 UTP / FTP
• 100Base-TX: Category 5 UTP / FTP
• 1000Base-T Cat5e UTP / FTP
• Certifications: FCC Class B, CE Mark, RoHS

Performance

• Filter / forward rate
• 10BaseT: 14,880 pps (packets per second)
• 100Base-TX: 148,800 pps (packets per second)
• 1000Base-T: 1,488,000 pps (packets per second)
• MAC address entries: 8192 entries
• Jumbo frame support: 9 kB

LEDs
- Power
- LINK / ACT for each 10/100/1000 Mbps port

Current
- DC Input: 5 V, 1 A

Technical Details

• Metal housing, Desktop Size
• Dimensions: 121 (W) x 75 (L) x 26 (H) mm
• Weight: 0.5 kg
- Operating temperature: 0 - 40 ° C
- Humidity: 10-90% non-condensing

Scope of delivery

• 5-Port Gigabit Ethernet Desktop Switch
• External power supply
• User Manual Color: Black Product dimensions: 121 (W) x 75 (L) x 26 (H) mm

Certificates
Compliance certificates	CE, RoHS, Federal Communications Commission (FCC)
Certification	FCC Class B, CE, RoHS
Data transmission
MAC address table	1024 entries
Packet buffer memory	0.112 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Stackable
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Full duplex
Flow control support
Auto MDI/MDI-X
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 90 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Manual
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Power
DC input voltage	5 V
Input current	1 A
Power supply included
Security
MAC address filtering
Weight & dimensions
Width	140 mm
Depth	78 mm
Height	28 mm
Weight	310 g

---
