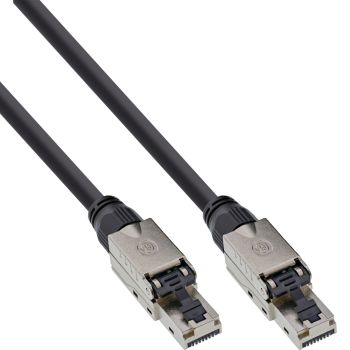

InLine® Patch cable, U/UTP, Cat.6A, halogen-free, AWG23 copper, black 40m
|
69,00 EUR |
|
|
( 82,11 EUR incl. VAT ) ≈ £57.75 | ≈ $77.21 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196932 |
| Mfg Part No: | 77840S |
| UPC/EAN: | 4043718299799 |
| Weight: | 2.298 kg |
Product information for Inline 77840S:
This patch cable is specially designed for the transmission of audio/video content to connect transmitter and receiver units in console and video extenders, i.e. devices that use a network cable as a connection cable. The high wire cross-section of AWG23 and the all-copper design also enable image transmission via HDBaseT up to 4K/30Hz over up to 70m without any problems.Patch cable U/UTP Cat.6 A with robust metal connectors
Full copper wires AWG23
Channel test approved cable
Supports AV applications / HDBaseT up to 4K/30Hz
PoE/PoE+ compatible
1:1 pinout, 4 twisted pairs
Screwed metal connectors with gold-plated contacts, which can also be reconnected without special tools
Sheath halogen-free (LSZH), diameter approx. 7.6mm, black
Full copper wires AWG23
Channel test approved cable
Supports AV applications / HDBaseT up to 4K/30Hz
PoE/PoE+ compatible
1:1 pinout, 4 twisted pairs
Screwed metal connectors with gold-plated contacts, which can also be reconnected without special tools
Sheath halogen-free (LSZH), diameter approx. 7.6mm, black
| Features | |
| Product colour | Black |
| Cable length | 40 m |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 23 |
| Plug and Play | |
| Other features | |
| Dimensions (WxDxH) | 15 x 40000 x 13 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 60 mm |
| Package weight | 2.3 kg |
| Package volume | 4300 cm³ |
| Technical data | |
| Assignment | 1:1 |
| Length | 40m |
| Weight | 2.298kg |
| Side B | RJ45 plug straight |
| Article width | 1.50cm |
| Data transmission rate | 10Gb/s |
| Version | Extender cable |
| Length packaging | 0.265m |
| Packing | Retail |
| Design | Round cable solid wire |
| Article height | 1.30cm |
| Diameter | AWG 23 |
| Type | Cat.6A |
| Sheath | Halogen-free (LSZH) |
| Net weight | 2.280kg |
| Side A | RJ45 plug straight |
| Width packaging | 0.265m |
| Patch cable category | Cat.6A |
| Shielding | U/UTP |
| Packaging volume | 0.0043m³ |
| Height packaging | 0.060m |
| Outer diameter | 7.6mm |
| Article length | 4000.00cm |
| Colour | Black |
| Conductor material | CU (copper) |
| Signal | Network |
| Gold plated contacts | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 40000 mm |
| Height | 13 mm |
| Weight | 2.28 kg |
